    Black-Oxide Steel Threaded on Both Ends Setup Stud

    1/2"-13 Thread Size, 2-1/2" Long

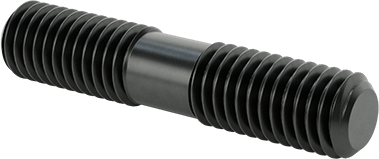

    Image of Product. Front orientation. Black-Oxide Steel Threaded on Both Ends Setup Stud, 1/2"-13 Thread Size, 2-1/2" Long.

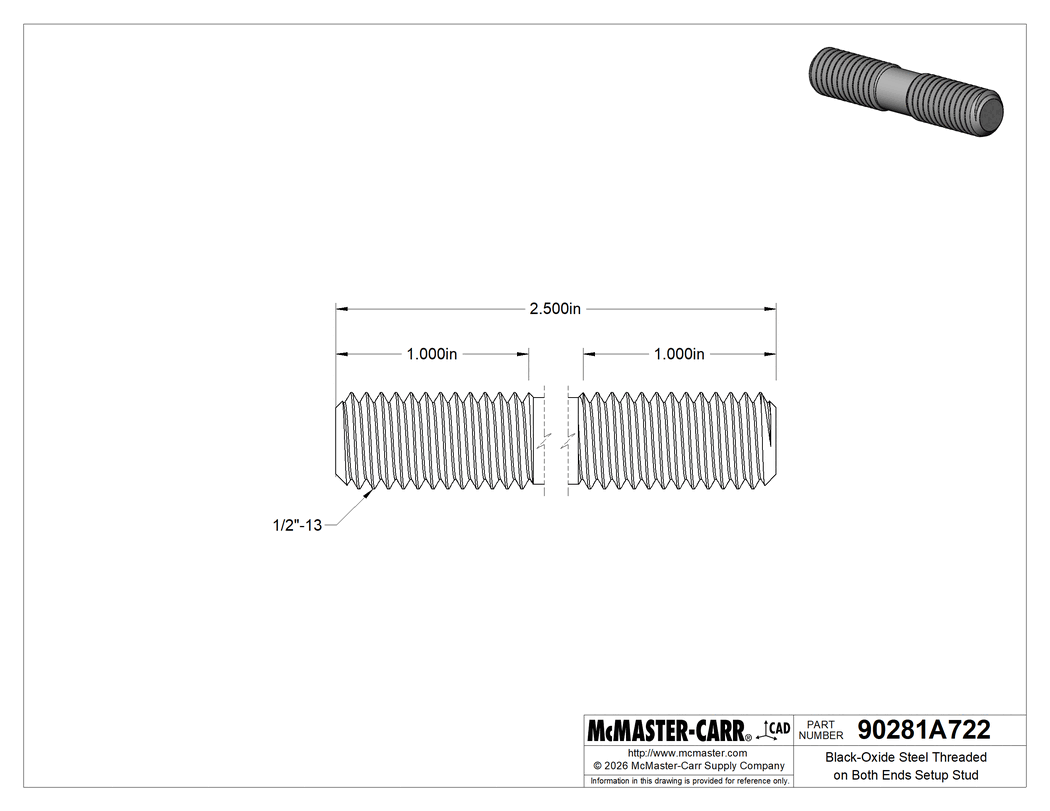

    Technical Drawing of Black-Oxide Steel Threaded on Both Ends Setup Stud, 1/2"-13 Thread Size, 2-1/2" Long.

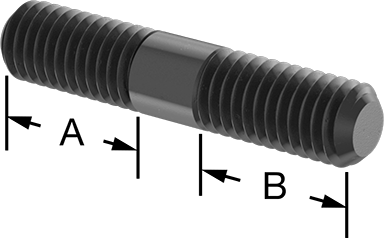

    Image of Product. Front orientation. Contains Annotated. Black-Oxide Steel Threaded on Both Ends Setup Stud, 1/2"-13 Thread Size, 2-1/2" Long.

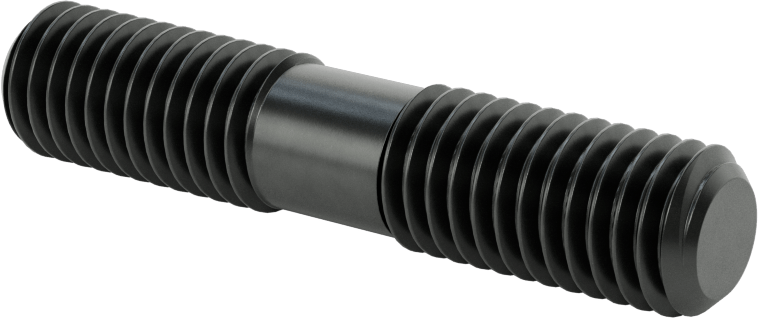

    Image of Product. Side1 orientation. Contains SizingReference. Black-Oxide Steel Threaded on Both Ends Setup Stud, 1/2"-13 Thread Size, 2-1/2" Long.
    2-D PDF
    00000 each
    90281A722
    In stock
    90281A722
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Threading

    Threaded on Both Ends

    Material

    Black-Oxide Steel

    Thread

    Size

    1/2"-13

    Length (A)

    1"

    Length (B)

    1"

    Direction

    Right Hand

    Type

    UNC

    Spacing

    Coarse

    Fit

    Unified Standard Class 2A

    Length

    2 1/2"

    Tensile Strength

    125,000 psi

    Hardness

    Rockwell C22

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.5000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Known as setup studs, these studs withstand sideways forces better than fully threaded studs because they have a strong unthreaded middle. The unthreaded middle also makes more contact with unthreaded holes, creating better alignment than a fully threaded stud.

    Black Oxide—Black-oxide steel studs resist rusting in dry environments.

    The information in this 3-D model is provided for reference only.
