    Black-Oxide Steel Threaded on Both Ends Setup Stud

    1/2"-13 Thread Size, 4" Long, 1-1/2" Thread Lengths

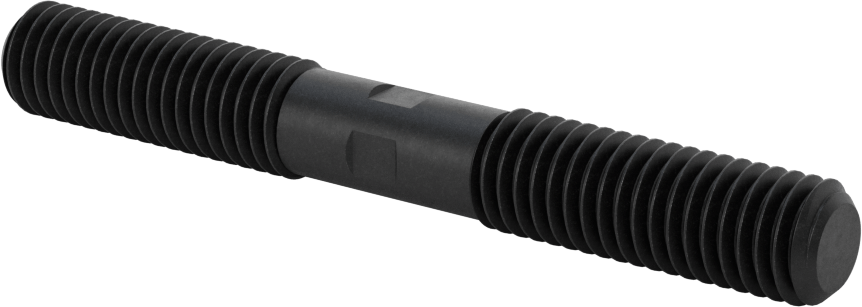

    Image of Product. Front orientation. Black-Oxide Steel Threaded on Both Ends Setup Stud, 1/2"-13 Thread Size, 4" Long, 1-1/2" Thread Lengths.

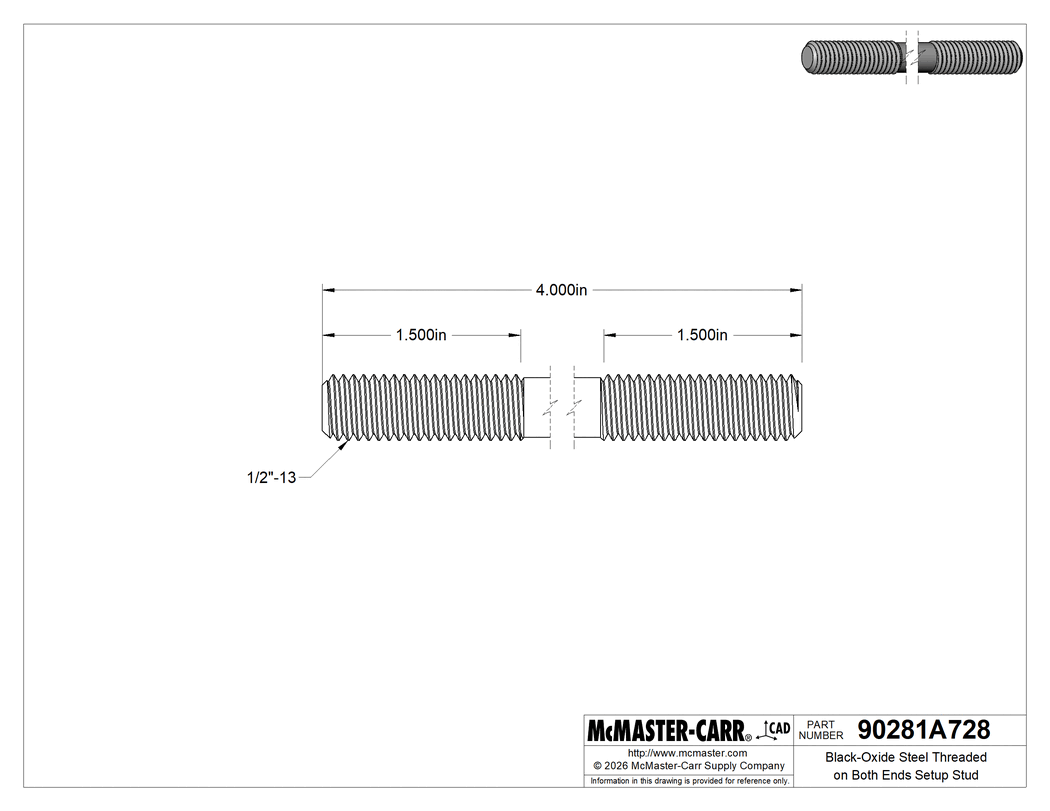

    Technical Drawing of Black-Oxide Steel Threaded on Both Ends Setup Stud, 1/2"-13 Thread Size, 4" Long, 1-1/2" Thread Lengths.
    Image of Product. Side1 orientation. Contains SizingReference. Black-Oxide Steel Threaded on Both Ends Setup Stud, 1/2"-13 Thread Size, 4" Long, 1-1/2" Thread Lengths.
    2-D PDF
    00000 each
    90281A728
    In stock
    90281A728
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Threading

    Threaded on Both Ends

    Material

    Black-Oxide Steel

    Thread

    Size

    1/2"-13

    Length (A)

    1 1/2"

    Length (B)

    1 1/2"

    Direction

    Right Hand

    Type

    UNC

    Spacing

    Coarse

    Fit

    Unified Standard Class 2A

    Length

    4"

    Tensile Strength

    125,000 psi

    Hardness

    Rockwell C22

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.5000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Known as setup studs, these studs withstand sideways forces better than fully threaded studs because they have a strong unthreaded middle. The unthreaded middle also makes more contact with unthreaded holes, creating better alignment than a fully threaded stud.

    Black Oxide—Black-oxide steel studs resist rusting in dry environments.

    The information in this 3-D model is provided for reference only.
