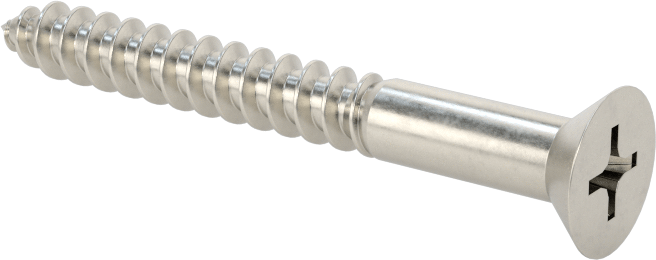

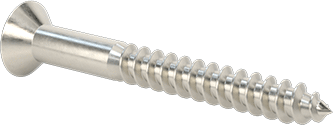

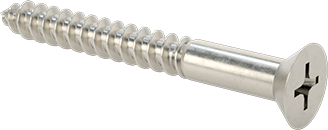

Phillips Flat Head Screws for Wood
18-8 Stainless Steel, Number 8 Size, 1-1/2" Long
Tip Type | Pointed |
Drive Style | Phillips |
Fastener Head Type | Flat |
For Use In | Wood |
Material | 18-8 Stainless Steel |
Screw Size | No. 8 |
Length | 1 1/2" |
Head | |
Diameter | 0.332" |
Height | 0.1" |
Softwood Drill Bit Size | 5/64" |
Hardwood Drill Bit Size | 3/32" |
Countersink Angle | 82° |
Flat Head Profile | Standard |
Approximate Threads per Inch | 15 |
Threading | Partially Threaded |
Tapping Method | Thread Forming |
Drive Size | No. 2 |
Hardwood Drill Bit Size Decimal Equivalent | 0.094" |
Minimum Thread Length | 1" |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.164" |
Shank Cross Section | Round |
Softwood Drill Bit Size Decimal Equivalent | 0.078" |
System of Measurement | Inch |
Thread Direction | Right Hand |
Country of Origin | China, Taiwan, Thailand |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731812.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
When exposed to moisture and chemically treated wood, such as ACQ-treated (arsenic-free) lumber, these screws won't rust or corrode. The flat head sits flush, so you won't need to worry about snags. The Phillips drive handles enough torque to drive into most kinds of wood without slipping.
Drill a pilot hole slightly smaller than the screw to prevent splitting. Length is measured from the top of the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
Prepare hole
Install
Distribute load

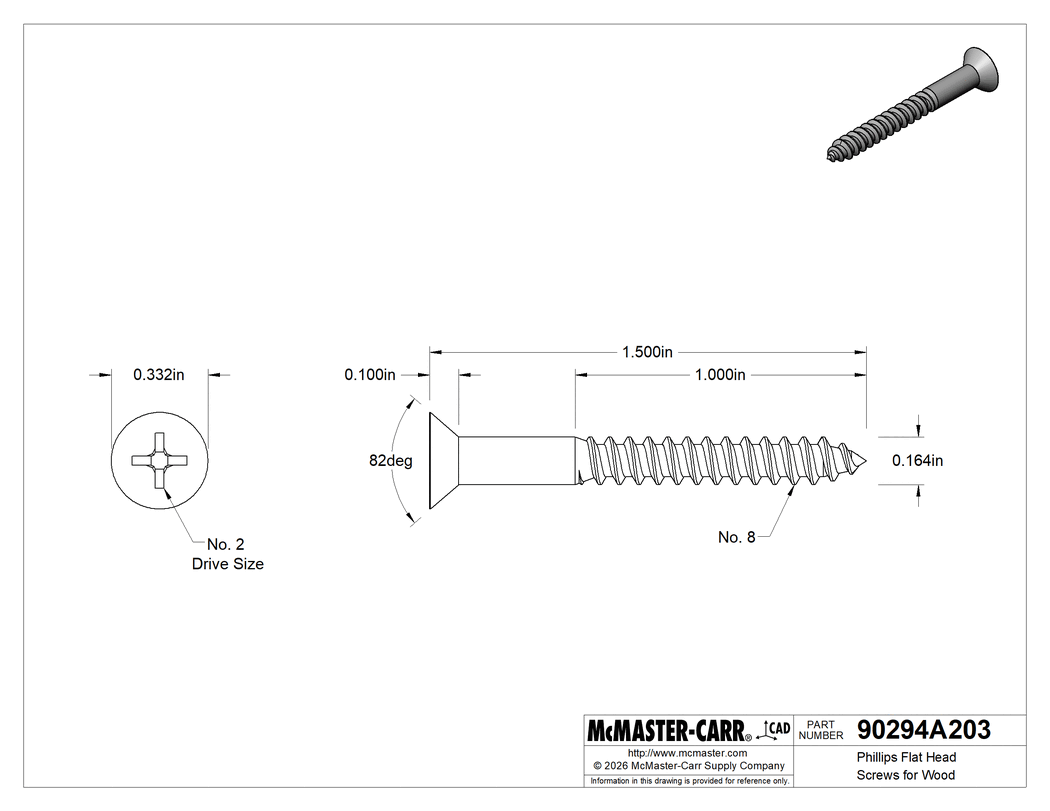

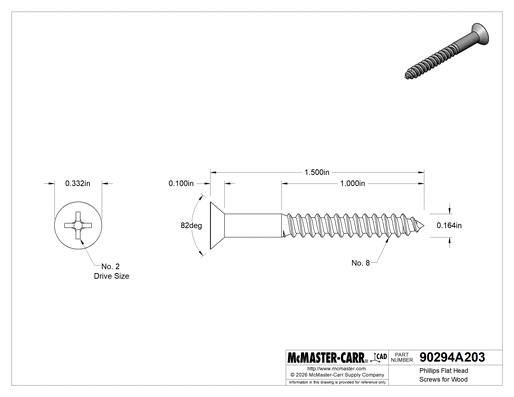

The information in this 3-D model is provided for reference only.
