    Nylon Plastic Washer

    for 1/2" Screw Size, 0.531" ID, 1.000" OD, Off-White

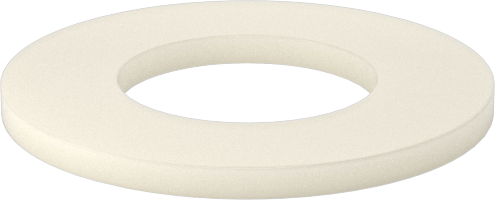

    Image of Product. Bottom orientation. Nylon Plastic Washer, for 1/2" Screw Size, 0.531" ID, 1.000" OD, Off-White.

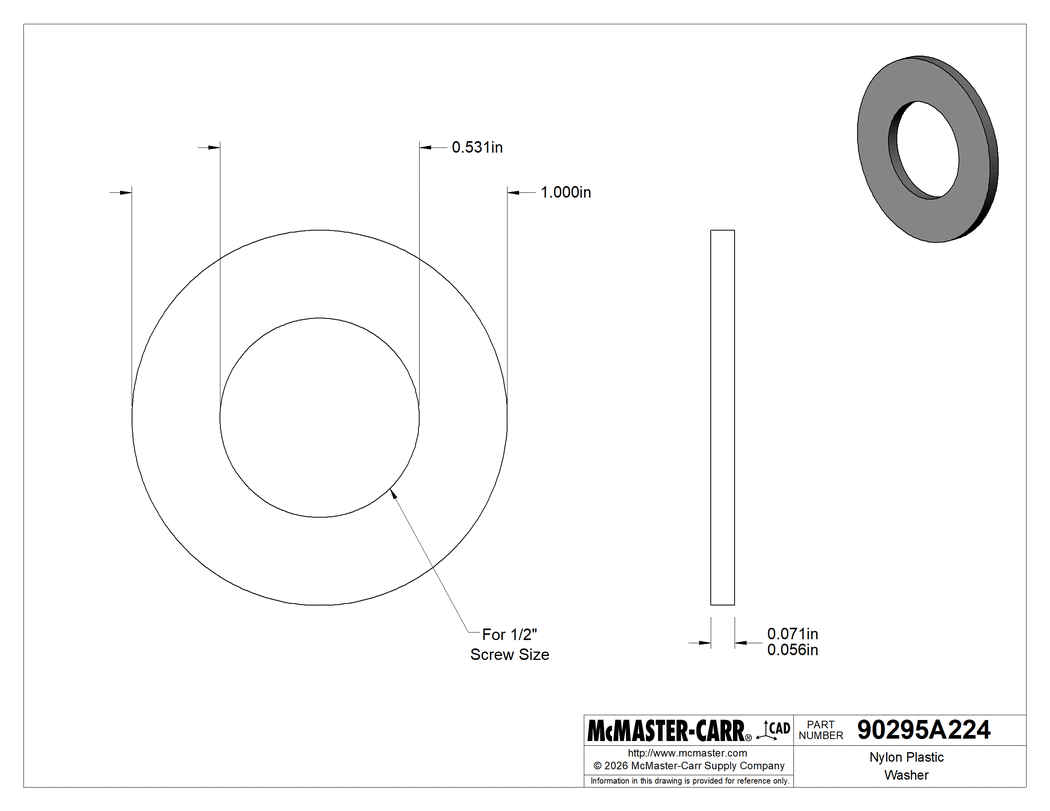

    Technical Drawing of Nylon Plastic Washer, for 1/2" Screw Size, 0.531" ID, 1.000" OD, Off-White.
    Image of Product. Side1 orientation. Contains SizingReference. Nylon Plastic Washer, for 1/2" Screw Size, 0.531" ID, 1.000" OD, Off-White.
    2-D PDF
    00000 per pack of 25
    90295A224
    In stock
    90295A224
    00000 per pack of 25
    Pack of 25
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Nylon

    For Screw Size

    1/2"

    ID

    0.531"

    OD

    1.000"

    Thickness

    0.056" to 0.071"

    Temperature Range

    Minimum

    -40° F

    Maximum

    300° F

    Specifications Met

    ASME B18.22.1

    Color

    Off-White

    Hardness

    Rockwell R115

    Performance

    Lightweight

    System of Measurement

    Inch

    Washer Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.4500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    All of these washers are lightweight, nonconductive, and naturally rust resistant. They are commonly used in electronics and automation applications to take the pressure off screws and nuts and protect mounting surfaces.

    Nylon—The most popular plastic washers, these are strong, durable, and economical. Nylon will swell and weaken when exposed to moisture, so these washers are best for dry environments.
