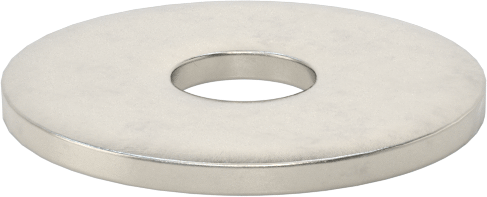

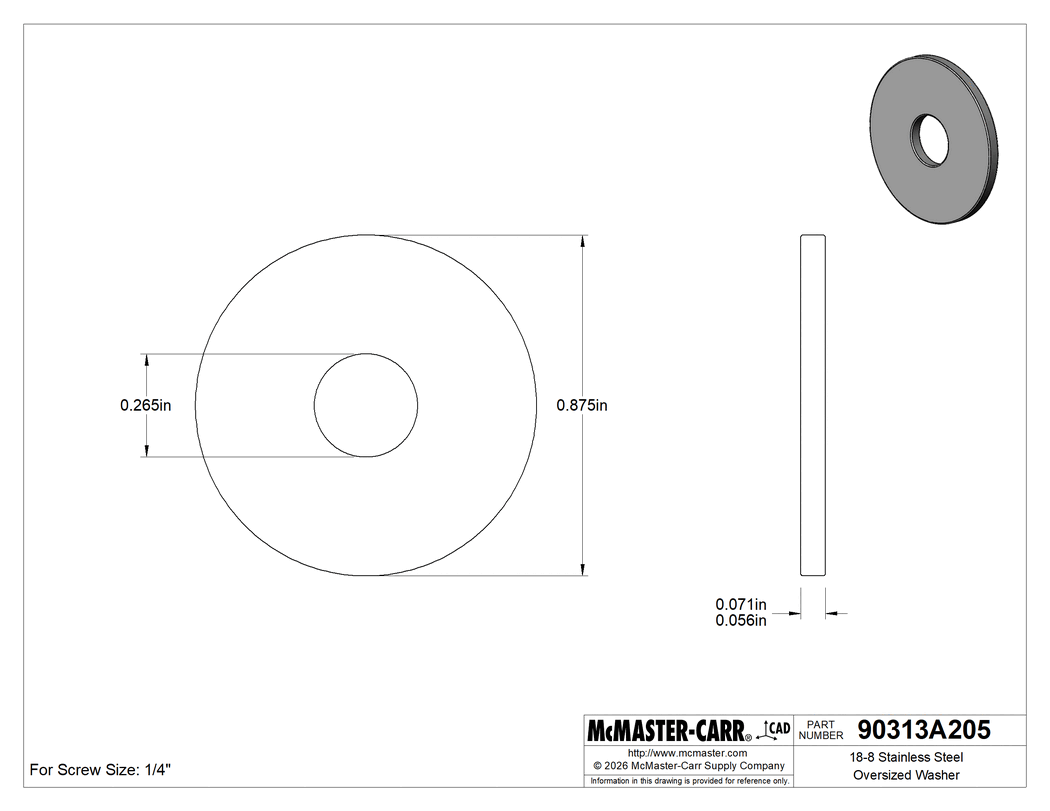

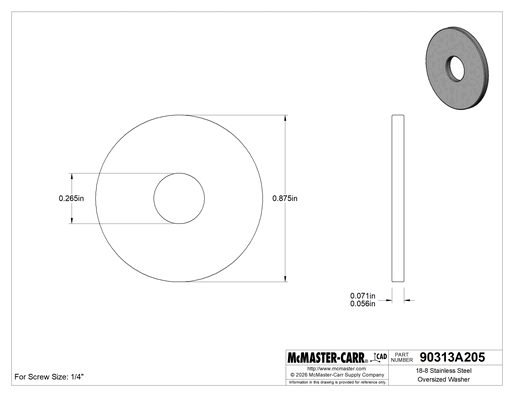

18-8 Stainless Steel Oversized Washer
for 1/4" Screw Size, 0.265" ID, 0.875" OD
2-D PDF
000000 per pack of 25
90313A205
In stock
90313A205
000000 per pack of 25
Pack of 25
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Washer Designation | Oversized |
Material | 18-8 Stainless Steel |
For Screw Size | 1/4" |
ID | 0.265" |
OD | 0.875" |
Thickness | 0.056" to 0.071" |
Hardness | Not Rated |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Washer Type | Flat |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731822.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Cover oversized holes or use these washers as spacers and levelers. Compared to general purpose washers, these have a larger diameter or thickness.
18-8 Stainless Steel—The choice for wet and outdoor environments, these washers resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
