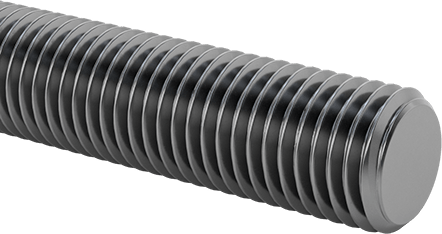

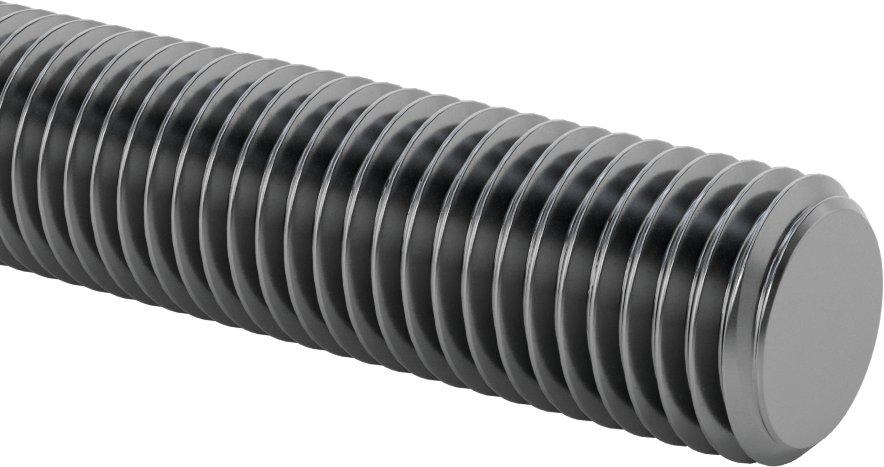

High-Strength Steel Threaded Rod
1-1/8"-7 Thread Size, 12 Feet Long
Thread Direction | Right Hand |
Fastener Strength Rating | High |
Thread Size | 1 1/8"-7 |
Length | 12 ft. |
Tensile Strength | 150,000 psi |
Fastener Strength Grade/Class | ASTM Grade BD |
Hardness | Rockwell C33 |
Specifications Met | ASTM A354 Grade BD |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Material | Steel |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7008) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
High-Strength Steel—With a tensile strength of 150,000 psi, these rods are strong enough to stabilize steel frameworks and structural supports, such as I-beams. They are about 25% stronger than medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also high-strength steel.
Steel—Best for dry environments since moisture will cause these rods to rust.

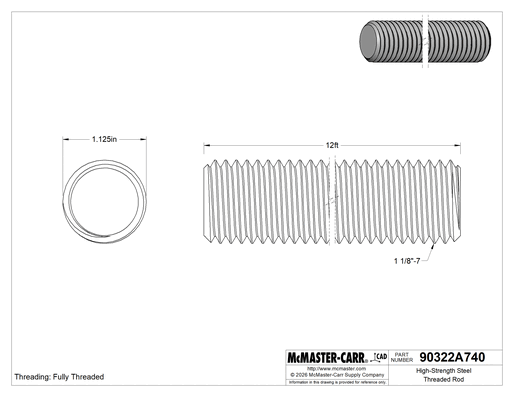

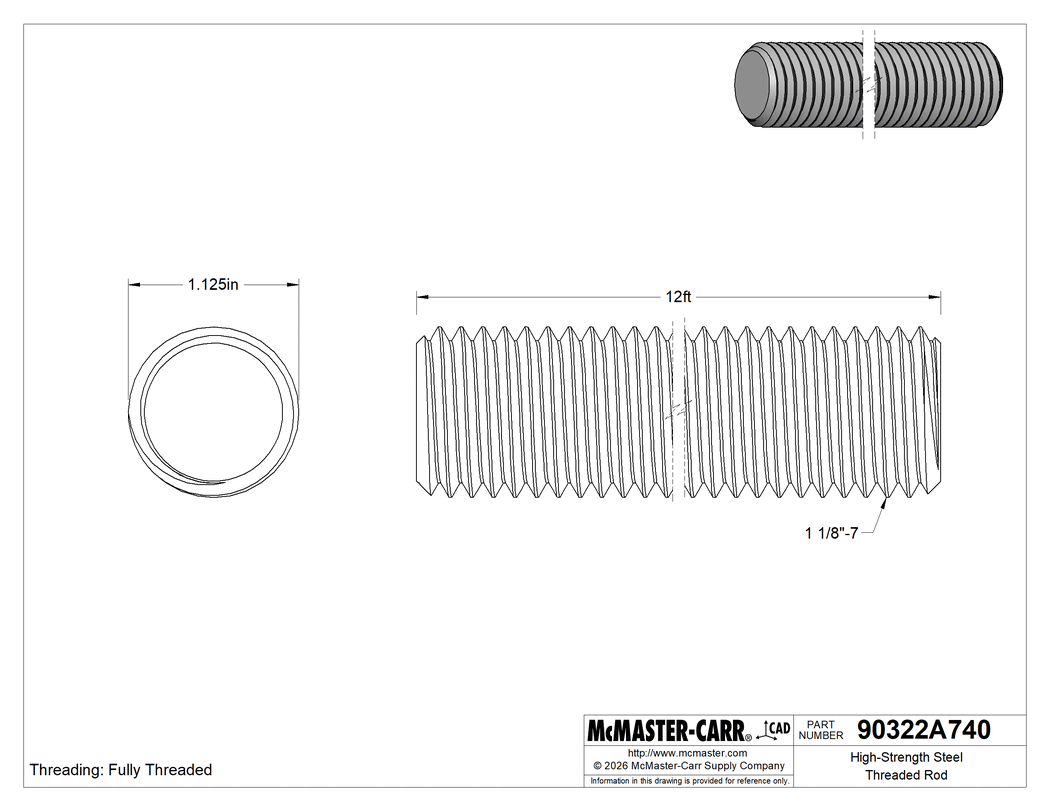

The information in this 3-D model is provided for reference only.
