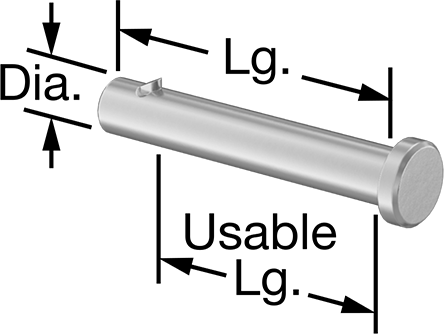

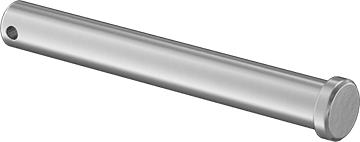

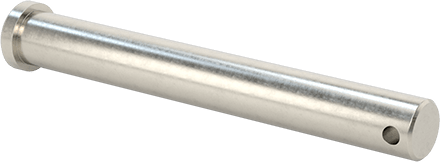

Corrosion-Resistant 18-8 Stainless Steel Clevis Pin
Oversized, 1/2" Diameter, 3-3/4" Usable Length
Tolerance Rating | Oversized |
Fastener Head Type | Flat |
End Type | Through Hole |
Material | 18-8 Stainless Steel |
Diameter | 1/2" |
Diameter Tolerance | 0.0001" to 0.0003" |
Usable Length | 3 3/4" |
For Maximum Cotter Pin Diameter | 9/64" |
Minimum Hardness | Rockwell B80 |
Length | 4" |
Head | |
Diameter | 5/8" |
Height | 5/32" |
Head Height Tolerance | -0.02" to 0" |
Head Diameter Tolerance | -0.02" to 0" |
Passivation | Unpassivated |
Performance | Corrosion Resistant |
Pin Type | Clevis |
Shaft Type | Plain |
System of Measurement | Inch |
Through-Hole Diameter | 5/32" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The security of a clevis pin with the tight fit of a dowel pin. The diameter of these pins is slightly larger than listed to fill worn or enlarged holes. They have a flat, low-profile head to fit into tight spaces. They’re less likely to get in the way than pins with a loop or T-handle grip, but they’re more difficult to remove. Secure with a cotter pin.
18-8 Stainless Steel—The choice for wet and outdoor environments, these pins resist rusting. They're strong enough to fasten most components but won't withstand stress and vibration as well as steel.

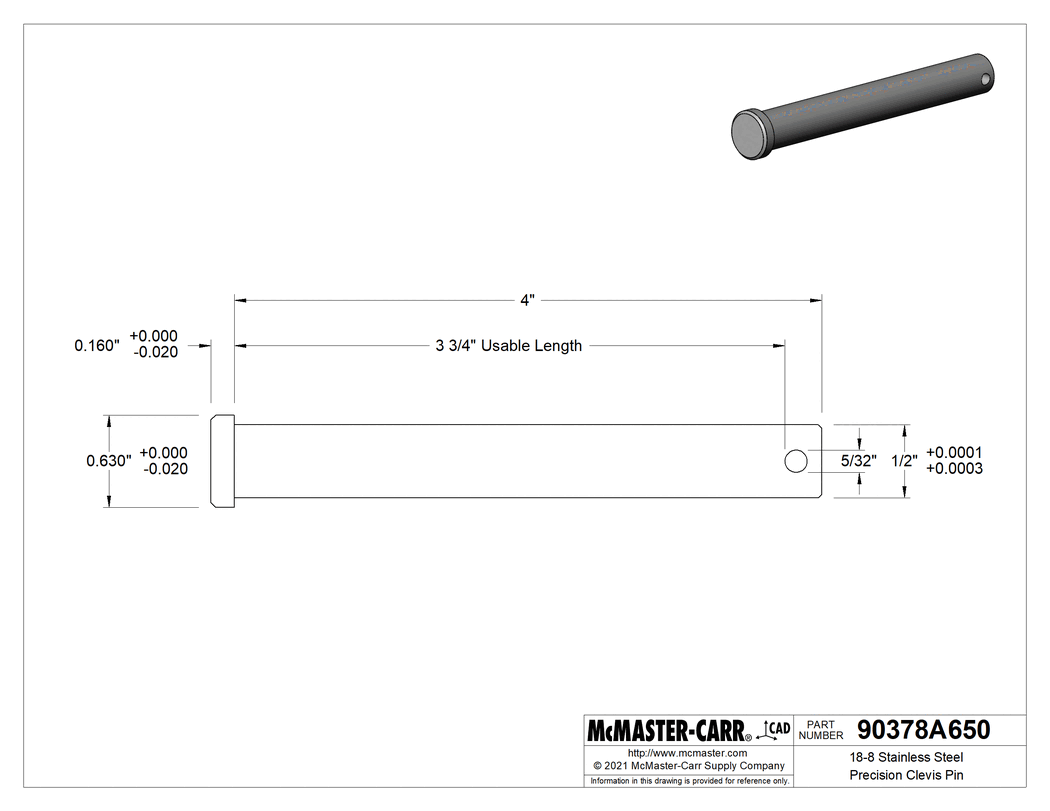

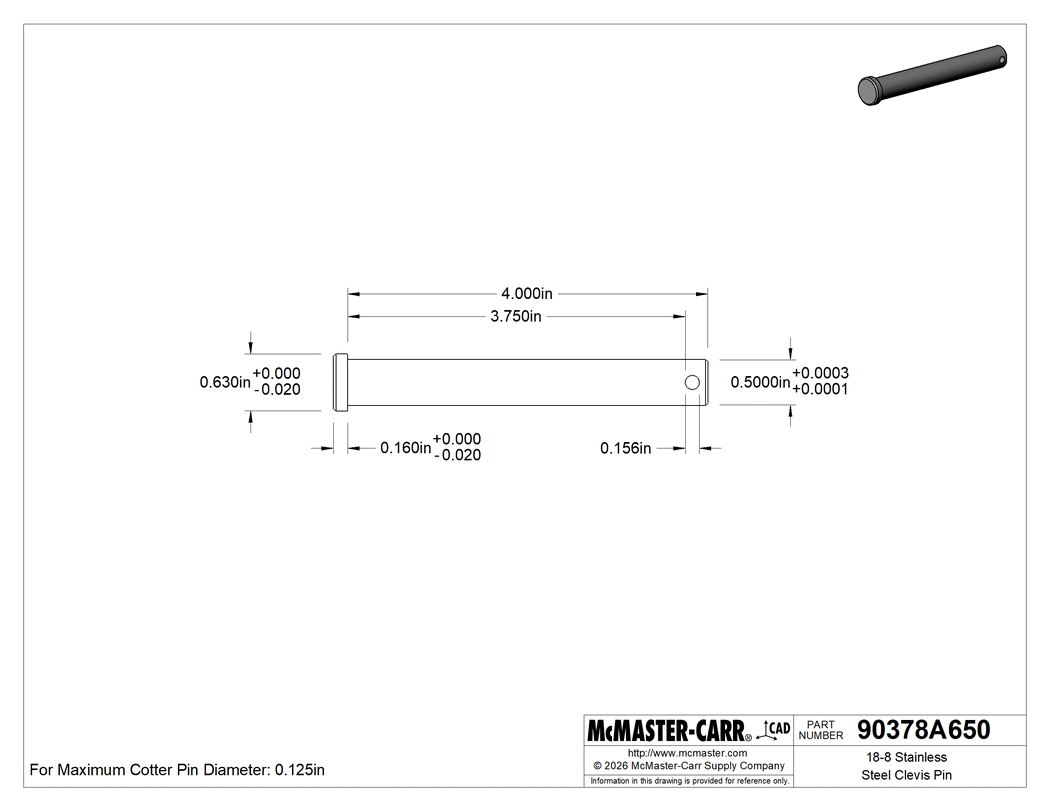

The information in this 3-D model is provided for reference only.
