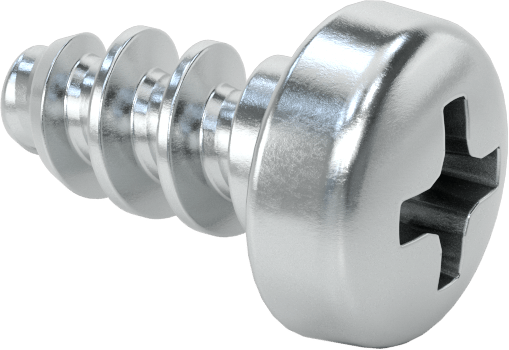

Phillips Rounded Head Thread-Forming Screws
for Plastic, Zinc-Plated Steel, M3 Size, 6 mm Long
Drive Style | Phillips |
Fastener Head Type | Rounded |
Tip Type | Blunt |
Tapping Method | Thread Forming |
Rounded Head Style | Pan |
Material | Zinc-Plated Steel |
Screw Size | M3 |
Length | 6 mm |
Head | |
Diameter | 5.3 mm |
Height | 2.1 mm |
Tapping Screw Type | TRS |
Drive Size | No. 1 |
Drill Bit Size | 2.25 mm |
Shank Cross Section | Round |
Approximate Thread Pitch | 1.34 mm |
Drill Bit Decimal Size Equivalent | 2.25 mm |
For Use In | Plastic |
Rounded Head Profile | Standard |
System of Measurement | Metric |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Canada, China, Germany, India, Italy, Japan, Mexico, Taiwan, Thailand, United States, Vietnam |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Thread these screws into molded or cast holes in plastic without installing inserts. They won’t crack or distort material when fastening enclosures, panels, and other plastic components. The Phillips drive handles enough torque to keep drivers from slipping and the rounded head creates a finished look.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
Round—The sharply angled threads drive into plastic with less force and a lower risk of cracking than other tapping screws. The base of the threads is recessed to bite deep into material and hold tight. You can reuse these screws a few times without stripping the threads. They're comparable to PT screws.
Fasten
Install

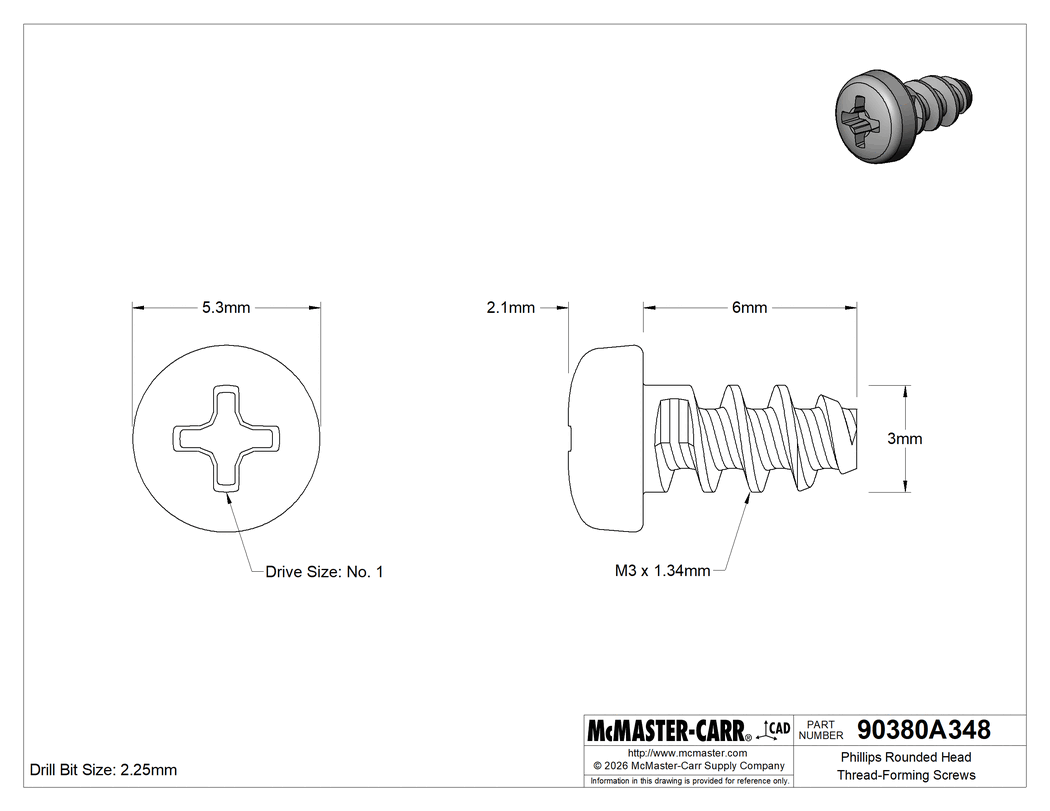

The information in this 3-D model is provided for reference only.
