Stay-Clean Threaded Rod
304 Stainless Steel, 1/2"-13 Thread Size, 12 Feet Long
Thread Direction | Right Hand |
Thread Size | 1/2"-13 |
Length | 12 ft. |
Tensile Strength | 75,000 psi |
Hardness | Rockwell B92 |
Cover | |
Material | PVC |
Color | White |
Food Industry Standard | FDA Compliant 21 CFR 177.1980 |
Barrier Type | Cover |
Environment | Food and Beverage |
Material | 304 Stainless Steel |
Performance | Corrosion Resistant, Stay Clean |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

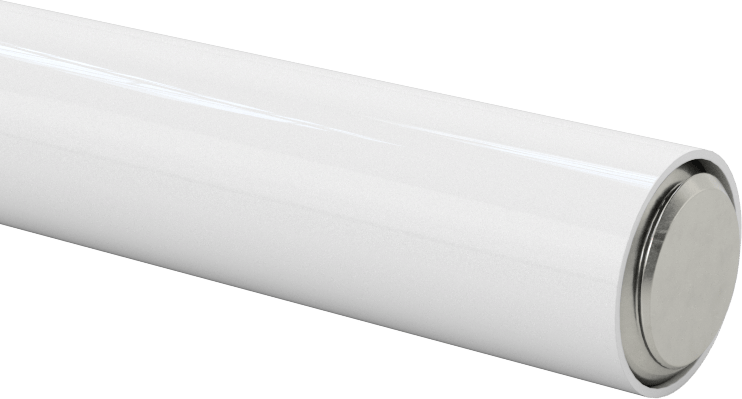

A plastic cover keeps dirt and grime off unused threads. The cover also resists chemicals to withstand washdowns with harsh cleaners without corroding, such as in food plants and labs. Strip the cover off the ends until you've exposed the threads you’ll need to install the rod.
Stainless Steel—More corrosion resistant than steel rods and comparable in strength to low-strength steel.
304 Stainless Steel—Won't corrode from frequent washdowns and can stand up to most cleaners and detergents.
FDA Compliant 21 CFR 177.1980—FDA-compliant rods are safe for direct contact with food.

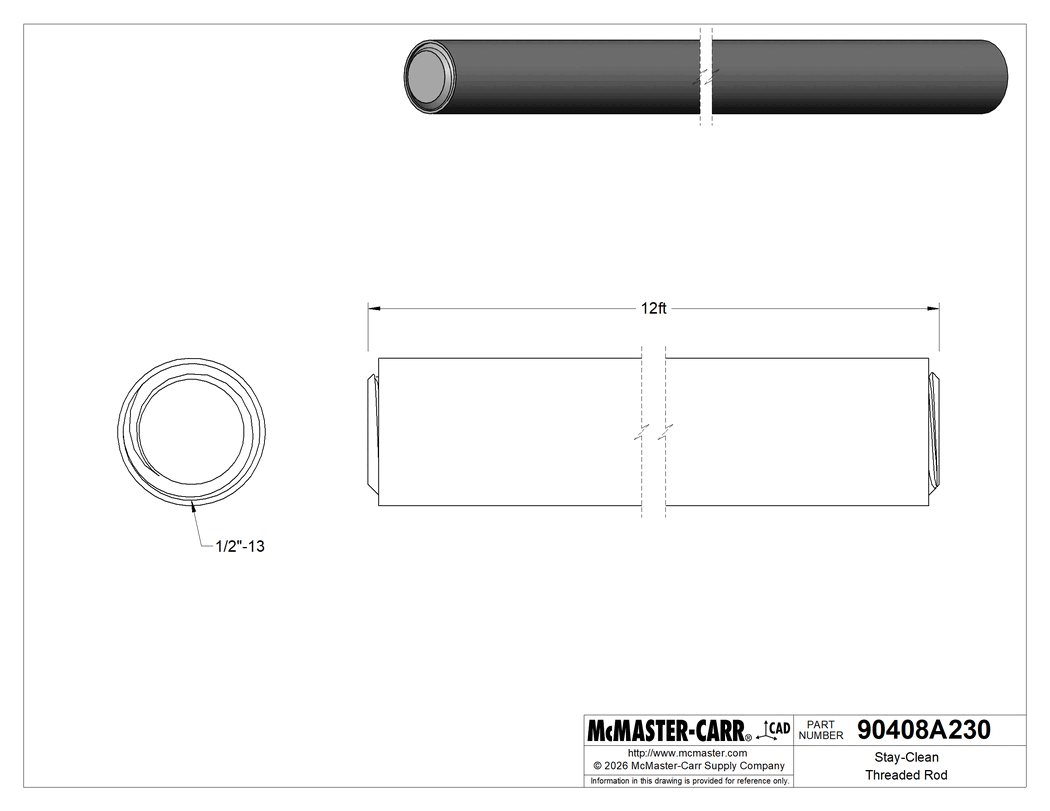

The information in this 3-D model is provided for reference only.
