Low-Strength Steel Threaded Rod

M5 x 0.8 mm Thread Size, 20 mm Long

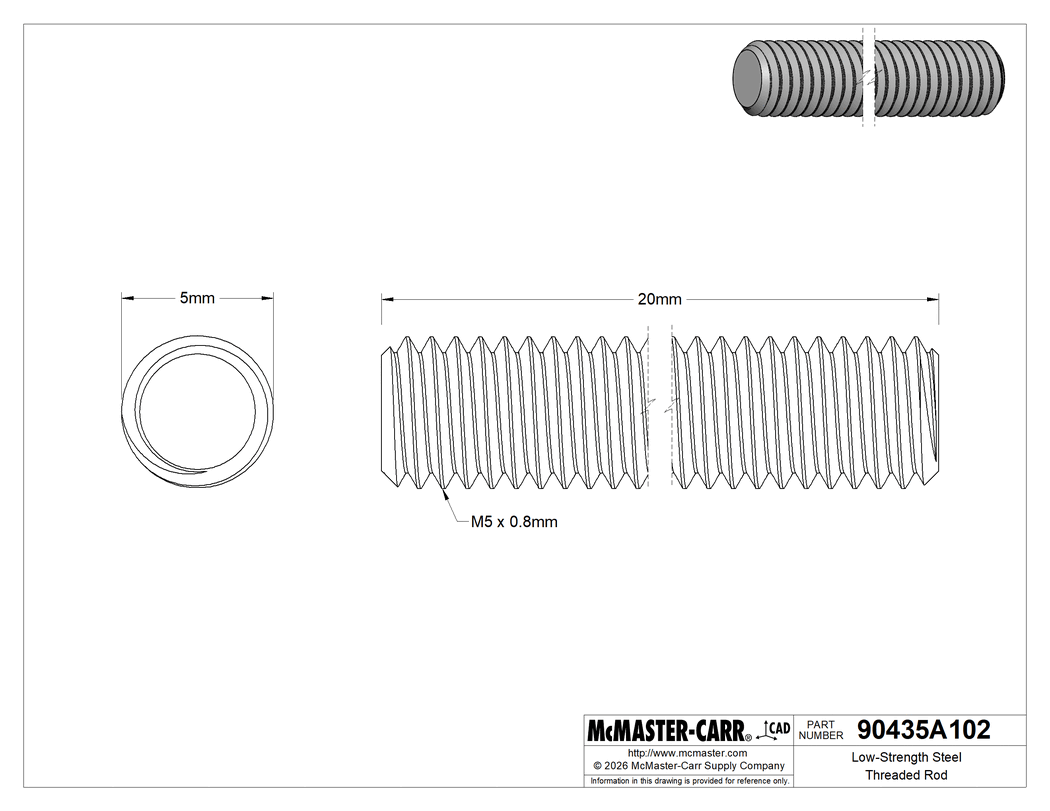

Technical Drawing of Low-Strength Steel Threaded Rod, M5 x 0.8 mm Thread Size, 20 mm Long.

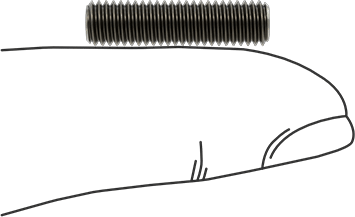

Image of Product. Side1 orientation. Contains SizingReference. Low-Strength Steel Threaded Rod, M5 x 0.8 mm Thread Size, 20 mm Long.

2-D PDF

000000 per pack of 25

90435A102

In stock

90435A102

000000 per pack of 25

QuantityPack of 25

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread Direction	Right Hand
Fastener Strength Rating	Low
Thread Size	M5 × 0.8 mm
Length	20 mm
Tensile Strength	50,000 psi
Hardness	Rockwell B49
Material	Steel
System of Measurement	Metric
Thread Fit	Metric Class 6g
Thread Spacing	Coarse
Thread Type	Metric
Threading	Fully Threaded
Country of Origin	United States
DFARS Compliance	Specialty Metals Compliant (252.225-7008)
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

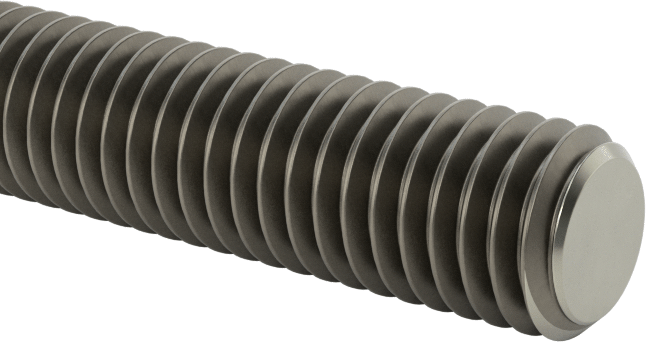

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Low-Strength Fastener—With a tensile strength of 50,000 psi or 60,000 psi, these rods are often used to suspend light fixtures, cable trays, and conduit from ceilings. They're about half the strength of medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also low-strength steel.
