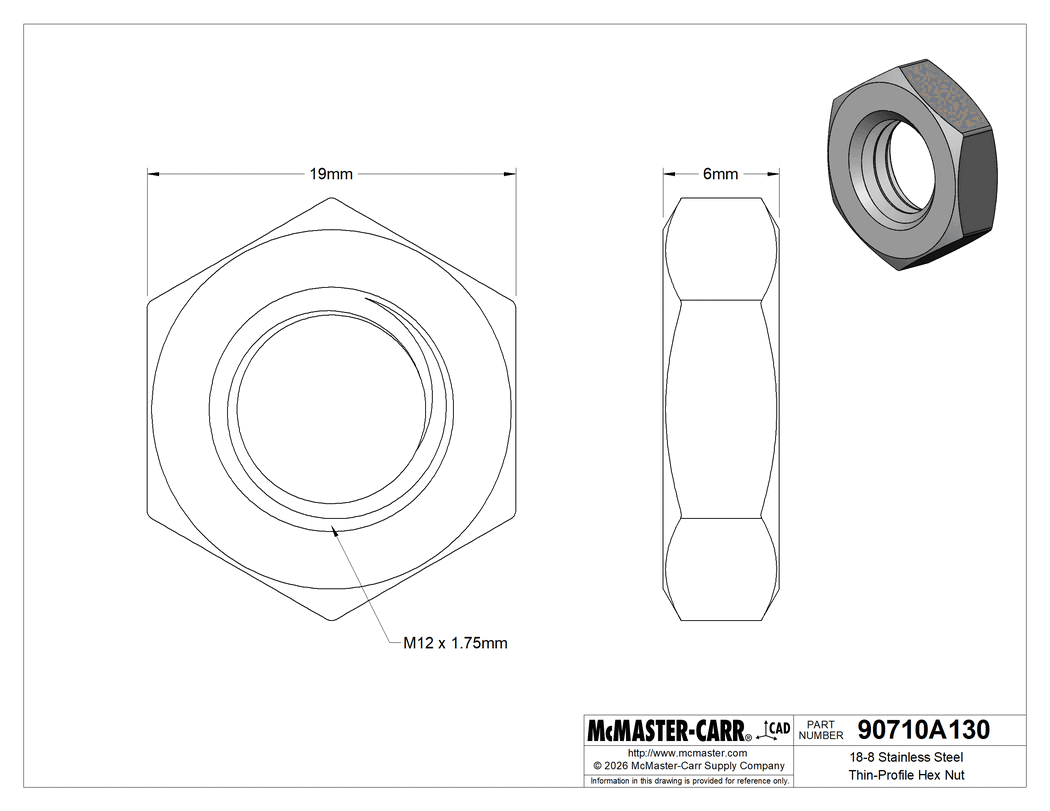

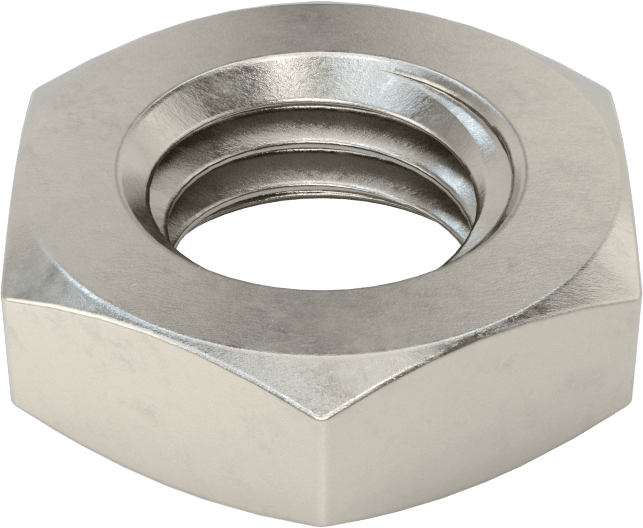

18-8 Stainless Steel Thin-Profile Hex Nut

M12 x 1.75 mm Thread, DIN 439B, ISO 4035

2-D PDF

000000 per pack of 20

90710A130

In stock

90710A130

000000 per pack of 20

QuantityPack of 20

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Hex Nut Profile	Thin
Material	18-8 Stainless Steel
Thread Size	M12 × 1.75 mm
Width	19 mm
Height	6 mm
Specifications Met	DIN 439B, ISO 4035
Drive Style	External Hex
Nut Type	Hex
Performance	Corrosion Resistant
System of Measurement	Metric
Thread Direction	Right Hand
Thread Fit	Metric Class 6H
Thread Spacing	Coarse
Thread Type	Metric
Country of Origin	China
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731816.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

About half the height of standard-profile nuts, these fit in spaces with low clearance. You can also use them as jam nuts by threading them against another hex nut to hold it in place.

18-8 Stainless Steel—The choice for wet and outdoor environments, these nuts resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
