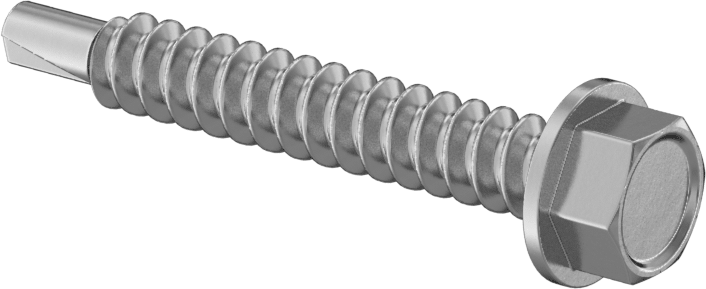

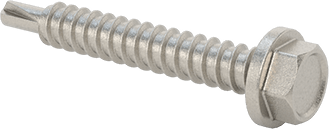

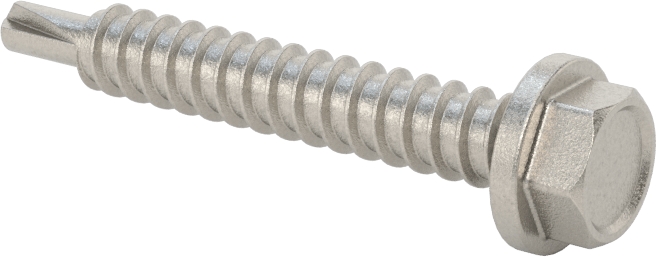

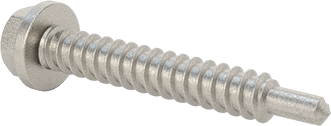

410 Stainless Steel Flanged Hex Head Drilling Screw
Number 12 Screw Size, 1-1/2" Long
Drive Style | External Hex |
Fastener Head Type | Hex/Flanged |
Drill Tip | |
Point Size | No. 3 |
Length | 9/32" |
Type | Drilling |
Tapping Method | Thread Forming |
Material | 410 Stainless Steel |
Screw Size | No. 12 |
Length | 1 1/2" |
Head | |
Width | 0.313" |
Height | 0.194" |
Flange Diameter | 0.432" |
Maximum Drilling Thickness | 0.187" |
Tapping Screw Type | BSD |
Approximate Threads per Inch | 14 |
For Use In | Metal, Sheet Metal, Stainless Steel, Steel |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.216" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Japan, Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These corrosion-resistant screws save time and effort by drilling and fastening in one step. The hex head gives you a firm, high-torque grip with a nutdriver or socket. Screws have a flange under the head that spreads the load to prevent crushing thin metal.
Length is measured from under the flange. Head height includes the flange.
410 Stainless Steel—Tougher and more wear resistant than other stainless steel screws but less corrosion resistant.
Install

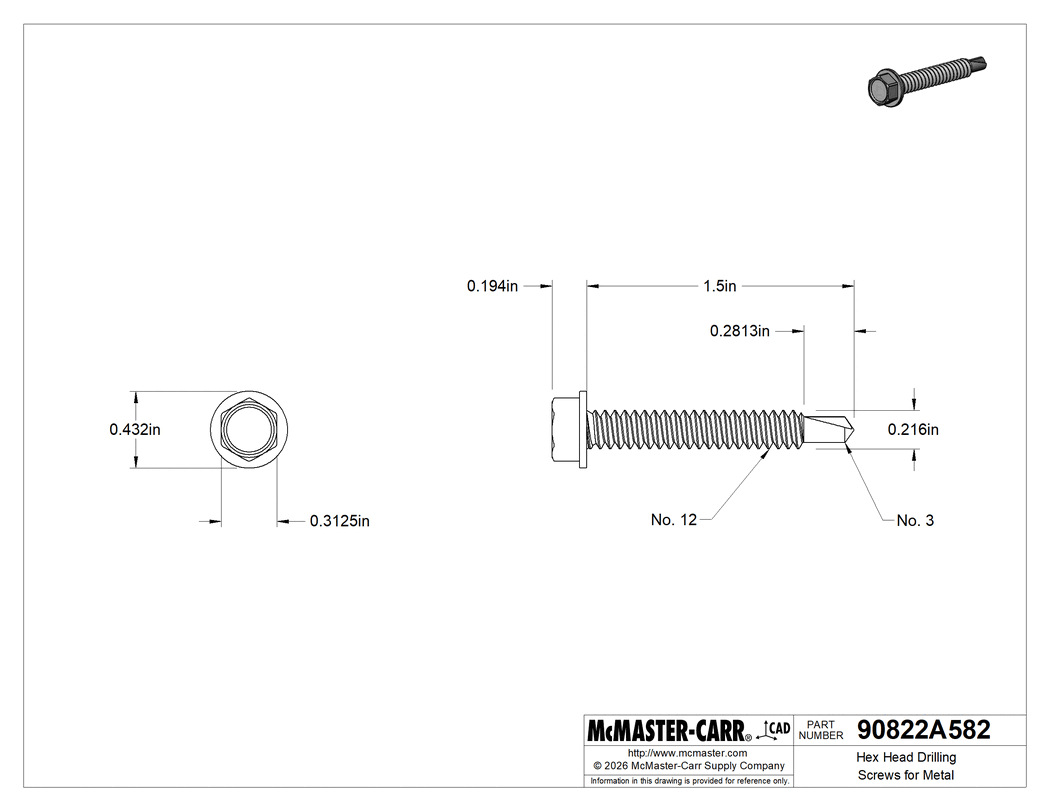

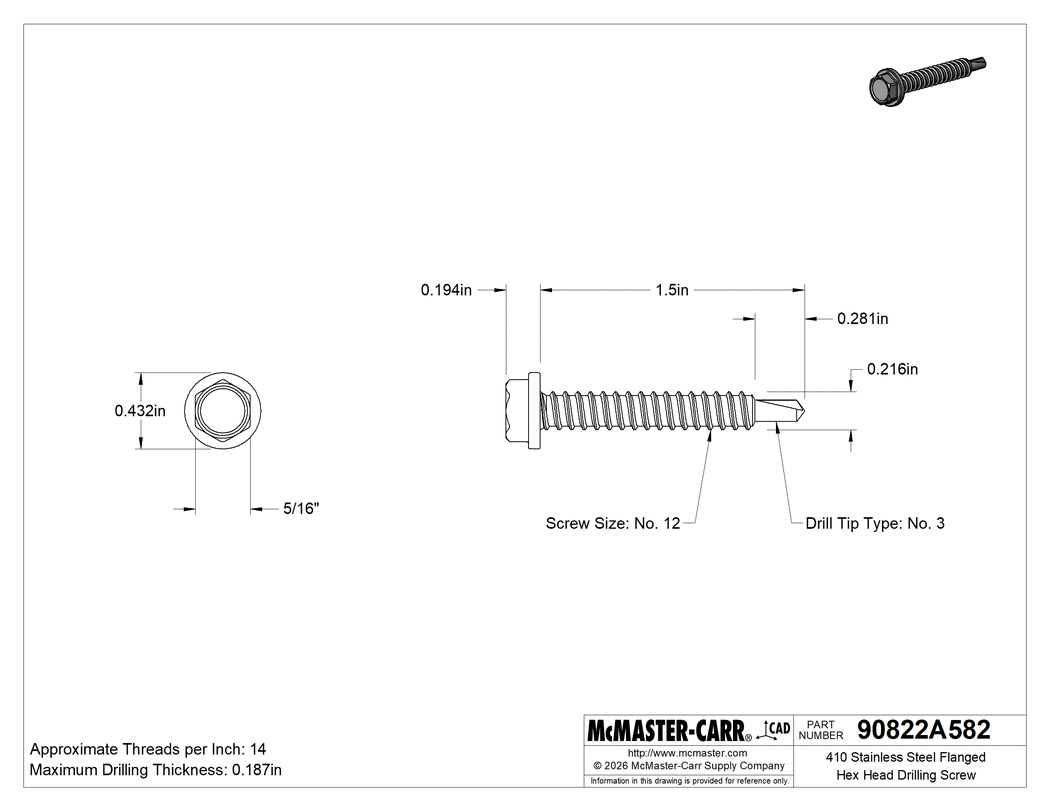

The information in this 3-D model is provided for reference only.
