    Zinc-Plated Steel Washers

    Oversized, for 1/4" Screw Size, 0.266" ID, 0.875" OD

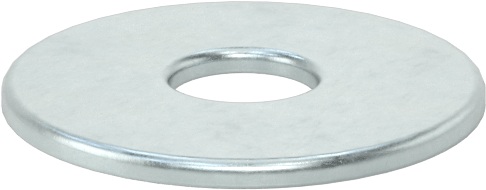

    Image of Product. Bottom orientation. Zinc-Plated Steel Washers, Oversized, for 1/4" Screw Size, 0.266" ID, 0.875" OD.

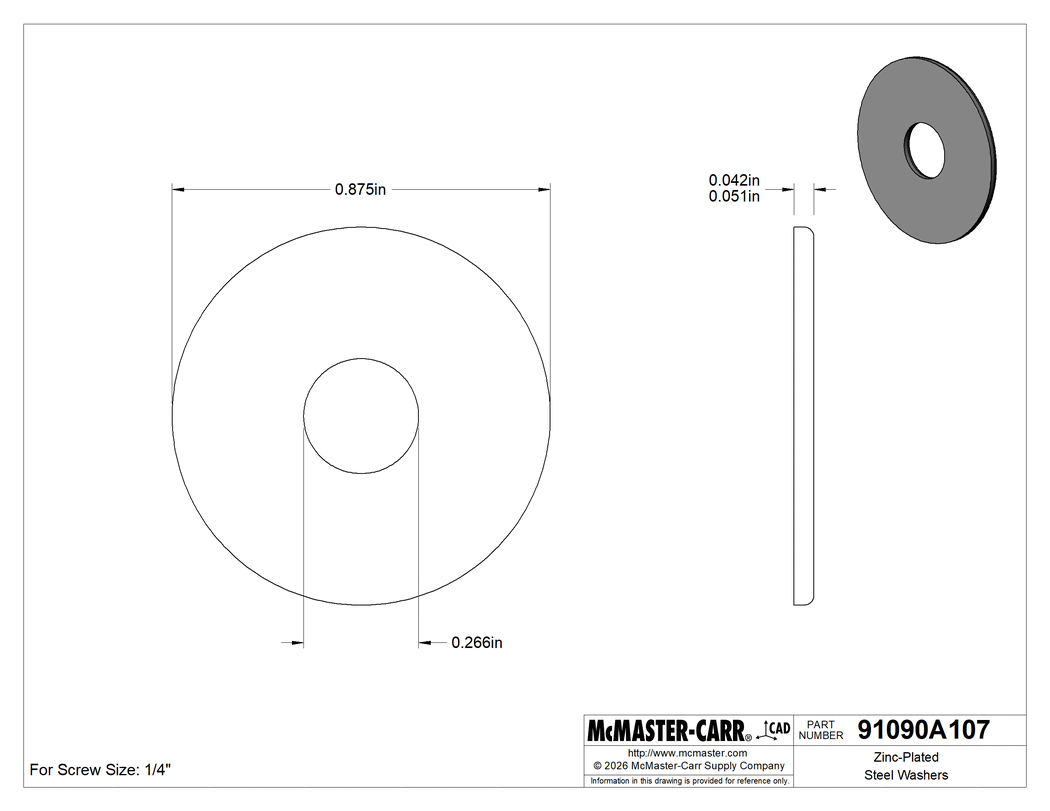

    Technical Drawing of Zinc-Plated Steel Washers, Oversized, for 1/4" Screw Size, 0.266" ID, 0.875" OD.
    Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Steel Washers, Oversized, for 1/4" Screw Size, 0.266" ID, 0.875" OD.
    2-D PDF
    00000 per pack of 50
    91090A107
    In stock
    91090A107
    00000 per pack of 50
    Pack of 50
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Washer Designation

    Oversized

    Material

    Zinc-Plated Steel

    For Screw Size

    1/4"

    ID

    0.266"

    OD

    0.875"

    Thickness

    0.042" to 0.051"

    Hardness

    Not Rated

    System of Measurement

    Inch

    Washer Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731822.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Cover oversized holes or use these washers as spacers and levelers. Compared to general purpose washers, these have a larger diameter or thickness.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
