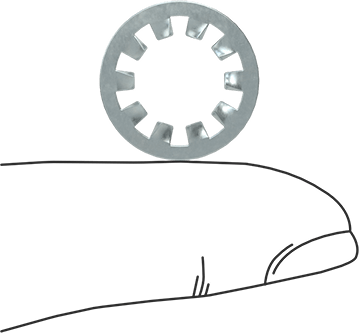

Zinc-Plated Steel Internal-Tooth Lock Washer
for 3/8" Screw Size, 0.384" ID, 0.681" OD
Tooth Location | Internal |
For Screw Size | 3/8" |
ID | 0.384" |
OD | 0.681" |
Thickness | 0.032" to 0.040" |
Specifications Met | ASME B18.21.1 |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Finish | Zinc Plated |
Hardness | Rockwell C40 |
Material | Steel |
System of Measurement | Inch |
Washer Type | Tooth |
Country of Origin | United States, Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731821.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Grip tighter than split lock washers to prevent nuts and screws from loosening in applications with constant movement, such as conveyors. Tooth lock washers typically can't be reused because the teeth often get bent when tightened.

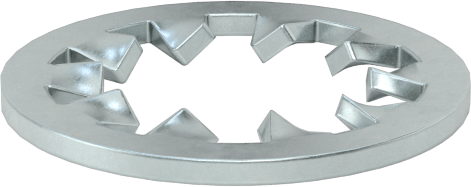

Internal Tooth—Internal teeth dig into the nut or screw to prevent it from backing out. Unlike external-tooth lock washers, these have a smooth outside edge, so they are less likely to mar your material or snag on objects. However, they don’t grip quite as well. Pair them with fasteners that have small diameters, such as fillister and cheese head screws.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

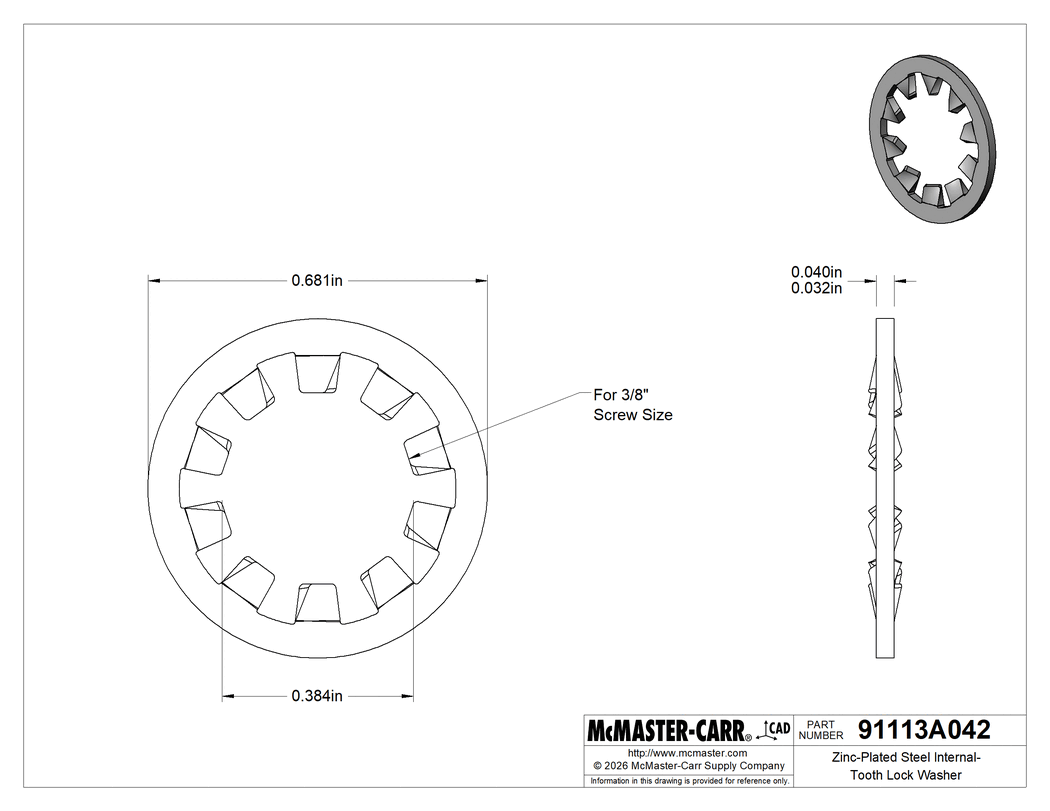

The information in this 3-D model is provided for reference only.
