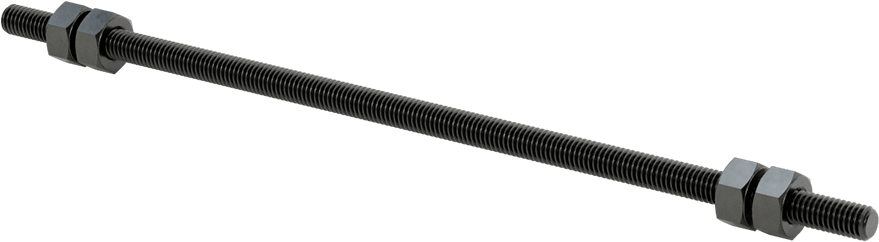

Threaded Rod with Hex Nuts
Grade B7, 3/8"-16 Thread Size, 12" Long
Thread Direction | Right Hand |
Nut Type | Hex |
Fastener Strength Rating | Medium |
Thread Size | 3/8"-16 |
Length | 12" |
Tensile Strength | 125,000 psi |
Fastener Strength Grade/Class | ASTM Grade B7 |
Hardness | Rockwell C35 |
Number of Nuts Included | 4 |
Specifications Met | ASTM A193 |
Material | Steel |
Performance | High Pressure |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States, China |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
No need to hunt for compatible nuts, twist and secure these rods on both ends with their included nuts.
Medium-Strength Fastener—With a tensile strength of 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods.
Steel—Best for dry environments since moisture will cause these rods to rust.

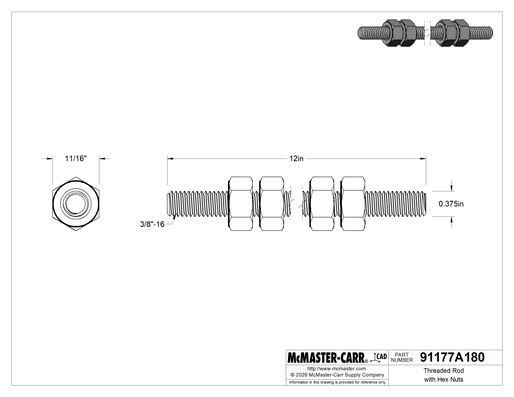

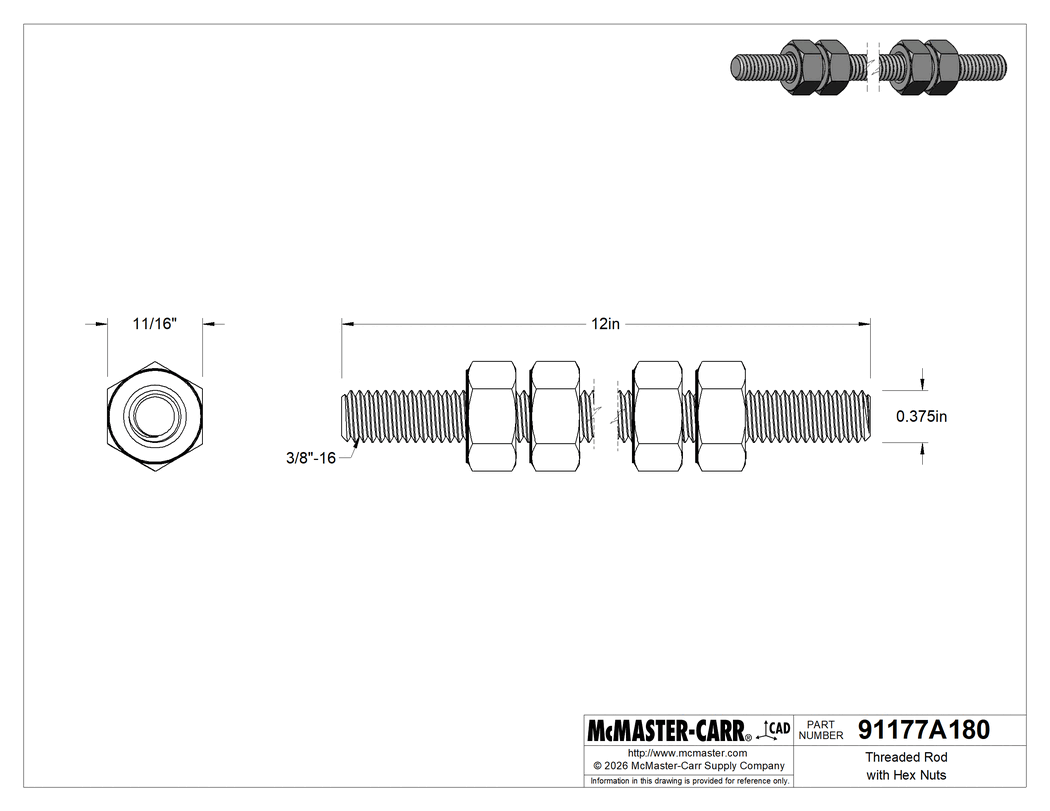

The information in this 3-D model is provided for reference only.
