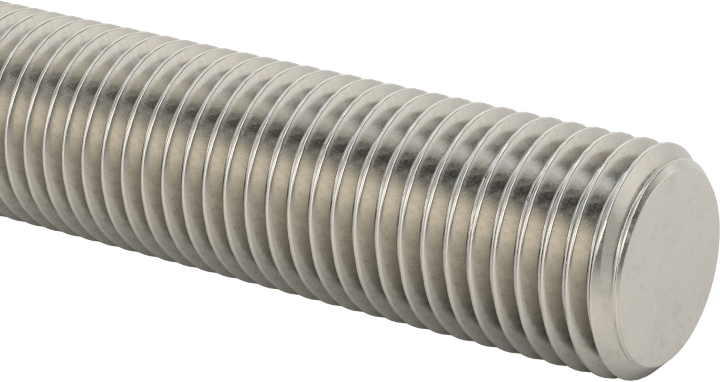

Grade B8 18-8 Stainless Steel Threaded Rod
7/16"-20 Thread Size, 6 Feet Long
Thread Direction | Right Hand |
Thread Size | 7/16"-20 |
Length | 6 ft. |
Tensile Strength | 75,000 psi |
Fastener Strength Grade/Class | ASTM Grade B8 |
Hardness | Not Rated |
Specifications Met | ASTM A193 |
Material | 18-8 Stainless Steel |
Performance | Corrosion Resistant, High Pressure |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Fine |
Thread Type | UNF |
Threading | Fully Threaded |
Country of Origin | United States, Italy |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Stainless Steel—More corrosion resistant than steel rods and comparable in strength to low-strength steel.
18-8 Stainless Steel—The choice for wet and outdoor environments, these rods resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

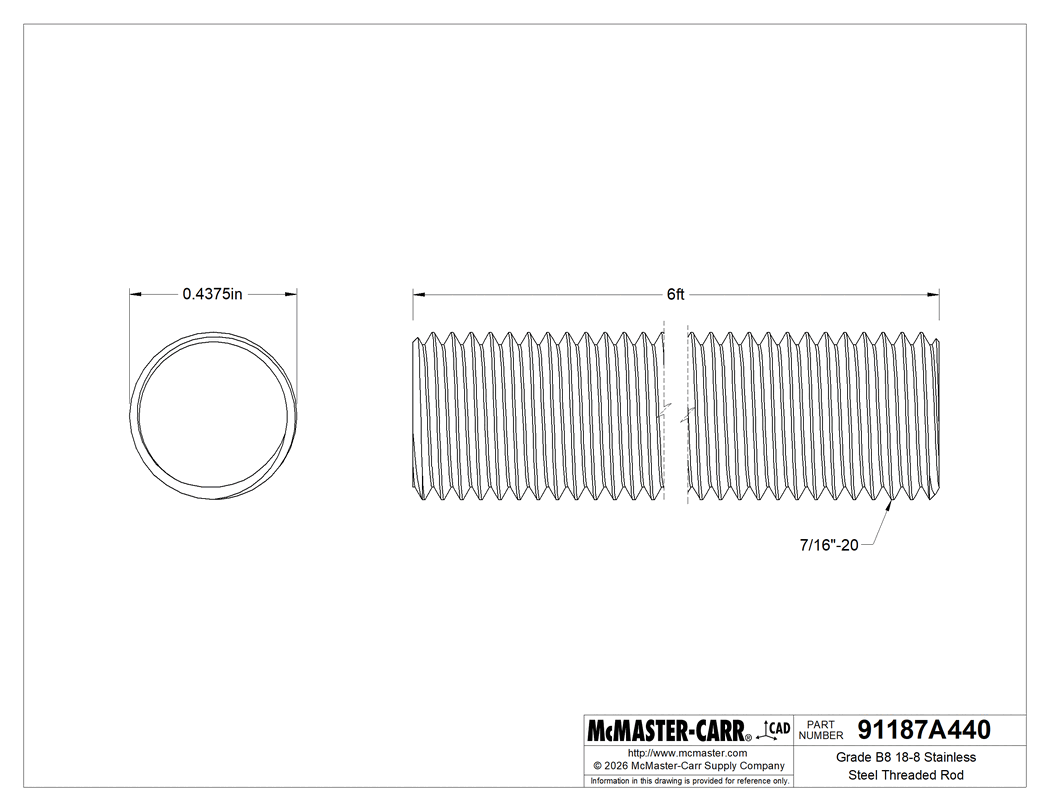

The information in this 3-D model is provided for reference only.
