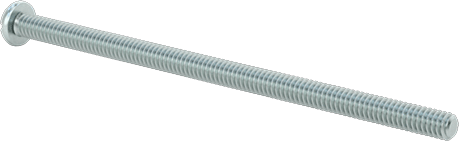

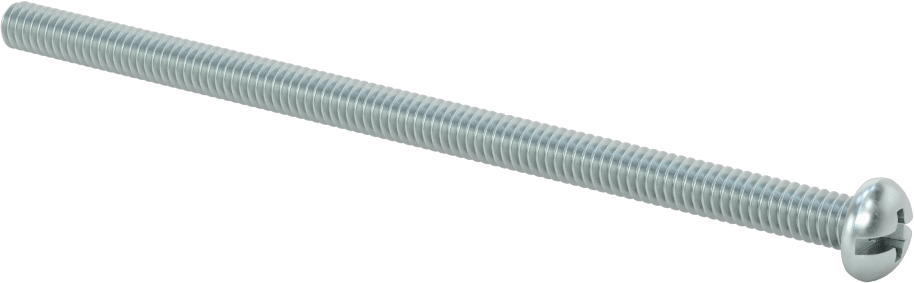

Decorative Combination Phillips/Slotted Screws
Round Head, 1/4"-20 Thread, 5" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Round |
Profile | Standard |
Height | 0.175" |
Diameter | 0.472" |
Drive | |
Style | Phillips, Slotted |
Size | No. 3 |
Length | 5" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B70 |
Material | Zinc-Plated Steel |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | United States, Canada, China, Germany, India, Italy, Japan, Mexico, Taiwan, Thailand, Vietnam |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With two common drive styles in a single screw, you'll always have a compatible driver on hand. A Phillips driver easily aligns with the cross-shaped opening on these screws, while a slotted driver works in a pinch. However, the combination drive won't handle as much torque as a dedicated Phillips drive can. The round head has a domed profile that gives a smooth, decorative look to brackets and architectural features.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

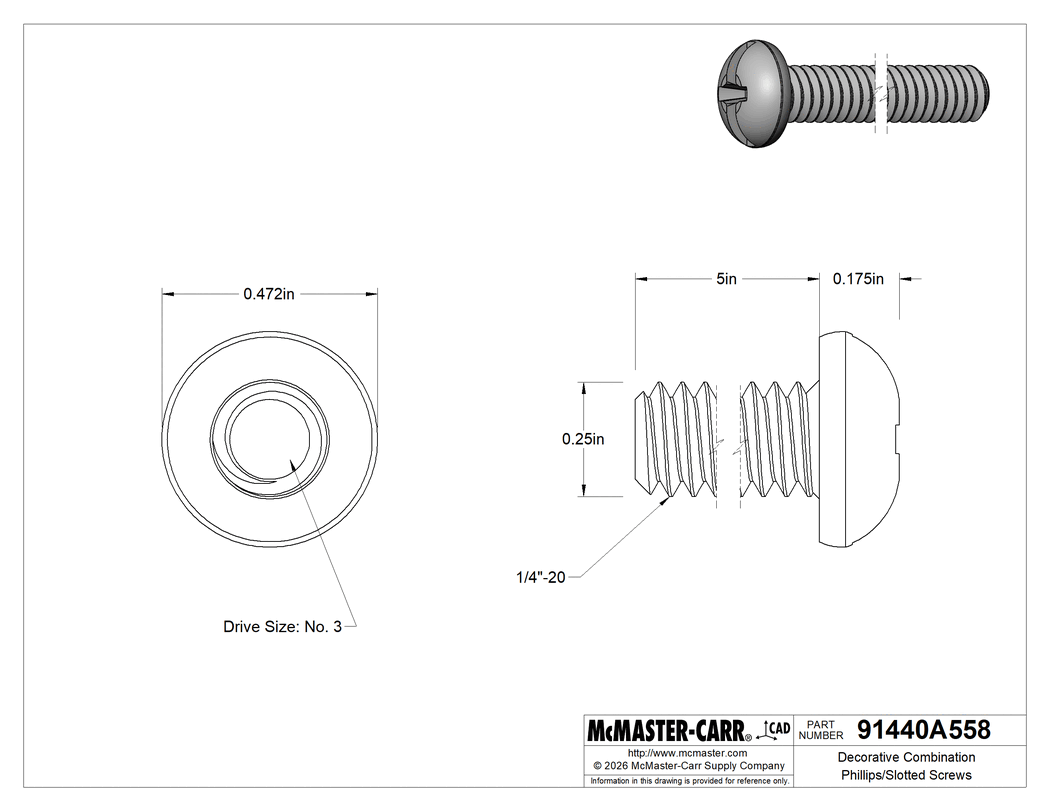

The information in this 3-D model is provided for reference only.
