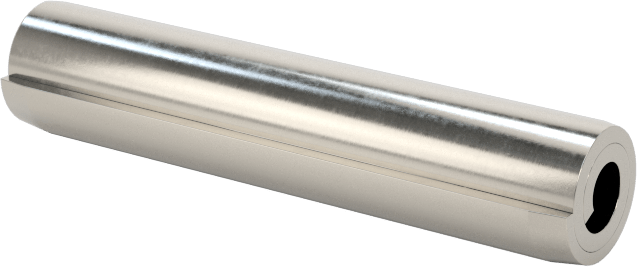

Coiled Spring Pins
18-8 Stainless Steel, 4 mm Diameter, 20 mm Long
Shaft Type | Coiled |
Material | 18-8 Stainless Steel |
Diameter | 4 mm |
Length | 20 mm |
For Hole Diameter | 4.000 mm to 4.100 mm |
Double Shear Breaking Strength | 1,700 lbf |
Minimum Hardness | Not Rated |
Specifications Met | ASME B18.8.3M, DIN 7343, ISO 8750 |
End Shape | Chamfer |
End Type | Plain |
Fastener Head Type | Plain |
Passivation | Passivated |
Performance | Corrosion Resistant |
Pin Type | Spring |
System of Measurement | Metric |
Country of Origin | United Kingdom |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The best spring pins for joining parts exposed to vibration and shock. They're often used in power transmission, automation, and other assemblies with constant motion and sudden starts and stops. Because of their spiral shape, they flex to conform to holes that aren’t perfectly round.
Corrosion-Resistant 18-8 Stainless Steel—The choice for wet and outdoor environments, these pins resist rusting. They are strong enough to join most components but won't withstand extreme stress and vibration as well as steel.
Passivated—With an added layer of protection, these pins stand up to strong acids and other harsh chemicals.
Prepare hole
Install

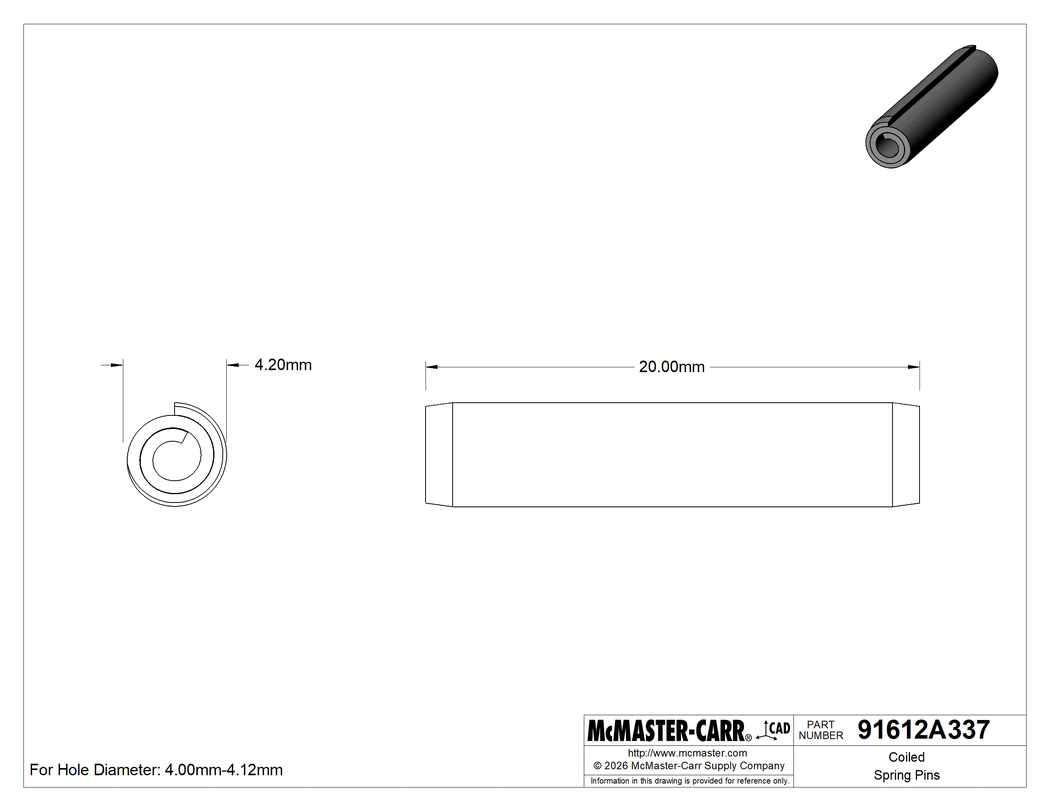

The information in this 3-D model is provided for reference only.
