    Weather- and Oil-Resistant Hnbr O-Ring Assortment

    360 Pieces, 36 Dash Number Sizes

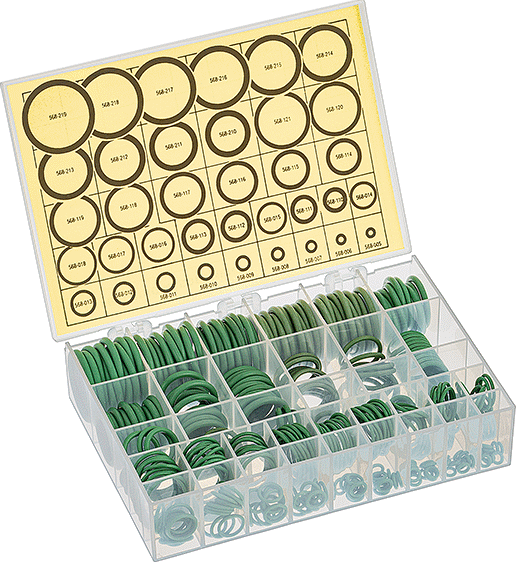

    Image of Product. Front orientation. Weather- and Oil-Resistant Hnbr O-Ring Assortment, 360 Pieces, 36 Dash Number Sizes.
    000000 each
    9163N11
    In stock
    9163N11
    000000 each
    Each
    In stock
    Number of Pieces

    360

    Number of Sizes Included

    36

    Includes

    Dash Numbers 006-019, 021-024, 109-117, 210-218

    Specifications Met

    ASTM D2000, SAE AS568, SAE J200

    Temperature Range

    -40° F to 250° F

    Hardness

    Durometer 70A (Medium)

    Color

    Green

    Cross Section Shape

    Round

    Dash Number

    006, 007, 008, 009, 010, 011, 012, 013, 014, 015, 016, 017, 018, 019, 021, 022, 023, 024, 109, 110, 111, 112, 113, 114, 115, 116, 117, 210, 211, 212, 213, 214, 215, 216, 217, 218

    Material

    HNBR

    For Use With

    Brake Fluid
    Brines
    Diluted Salt Solutions
    Transmission Fluid
    Acetic Acid (White Vinegar)
    Air
    Alkali
    Ammonia
    Ammonium Hydroxide
    Animal Oil
    Boric Acid
    Butyl Alcohol
    Calcium Hydroxide
    Citric Acid
    Detergent
    Ethanol
    Ethylene Glycol
    Glycerin
    Grease
    Hydraulic Oil
    Isopropyl Alcohol
    Methanol (Methyl Alcohol)
    Mineral Oil
    Motor Oil
    Petroleum
    Phosphoric Acid
    Potassium Hydroxide
    Sodium Bicarbonate (Baking Soda)
    Sulfuric Acid
    Vegetable Oil
    Water

    Fractional

    Width

    1/16, 3/32, 1/8

    ID

    1/8, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1 1/16, 1 1/8, 1 3/16, 1 1/4

    OD

    1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1 1/16, 1 1/8, 1 3/16, 1 1/4, 1 5/16, 1 3/8, 1 7/16, 1 1/2

    System of Measurement

    Inch

    Width

    0.07", 0.103", 0.139"

    ID

    0.114", 0.145", 0.176", 0.208", 0.239", 0.299", 0.301", 0.362", 0.364", 0.424", 0.426", 0.487", 0.489", 0.549", 0.551", 0.612", 0.614", 0.674", 0.676", 0.734", 0.737", 0.739", 0.796", 0.799", 0.801", 0.859", 0.921", 0.926", 0.984", 0.989", 1.046", 1.051", 1.109", 1.114", 1.171", 1.234"

    OD

    0.254", 0.285", 0.316", 0.348", 0.379", 0.441", 0.504", 0.505", 0.566", 0.568", 0.629", 0.63", 0.691", 0.693", 0.754", 0.755", 0.816", 0.818", 0.879", 0.88", 0.941", 0.943", 1.005", 1.012", 1.066", 1.074", 1.129", 1.137", 1.191", 1.199", 1.254", 1.262", 1.324", 1.387", 1.449", 1.512"

    Performance

    Oil Resistant, Weather Resistant

    Country of Origin

    United States, Taiwan, Thailand

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    401693.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Keep a variety of sizes handy so that you always have the O-ring you need. The HNBR O-rings in these assortments are a step up from Buna-N O-rings—they contain extra hydrogen to better resist chemicals, weather, and abrasion. They won’t swell from contact with grease and acid, making them a good choice in engine, hydraulic, and HVAC systems. Because they won’t deteriorate from ozone, UV, or oxidation, these O-rings are also good for outdoor use. However, they won’t withstand solvents or strong acids like Viton® fluoroelastomer O-rings do. They’re also known as hydrogenated nitrile and highly saturated nitrile O-rings.
