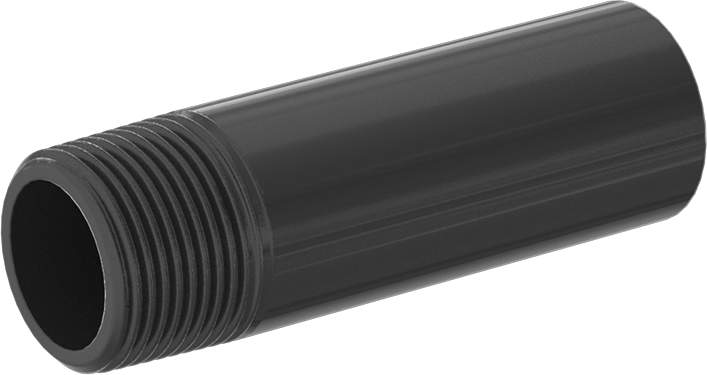

Thick-Wall Dark Gray PVC Pipe Nipple for Water
Threaded on One End, 1 NPT, 4" Long
Wall Thickness Rating | Thick |
Shape | Straight |
Flexibility | Rigid |
Fitting Type | Pipe, Adapter |
Threading | Threaded on One End |
Fitting Connection | NPT Male × Cement Socket Male |
Pipe Size | |
(A) | 1 |
(B) | 1 |
Length | 4" |
Pipe Schedule | 80 |
Material | PVC |
Color | Dark Gray |
Maximum Pressure @ Temperature | 315 psi @ 72° F |
Clarity | Opaque |
Connects To | Pipe |
For Fitting Material | PVC |
For Fitting Schedule | 80 |
For Flange | |
Class | 150 |
Material | PVC |
For Use With | Water |
ID | 0.957" |
Minimum Temperature | Not Rated |
Maximum Temperature | 140° F |
Maximum Vacuum @ Temperature | Not Rated |
OD | 1 5/16" |
Performance | Chemical Resistant |
Specifications Met | ASTM D1784, ASTM D1785 |
System of Measurement | Inch |
Wall Thickness | 0.179" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391740.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
With thicker, stronger walls than standard-wall pipe, this Schedule 80 pipe can handle heavy duty industrial plumbing and water supply applications, such as water processing, waste water treatment, and irrigation. It’s made of PVC, which has good corrosion resistance. Pipe meets ASTM D1784 and ASTM D1785 specifications and testing requirements for material quality.
To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.
Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.

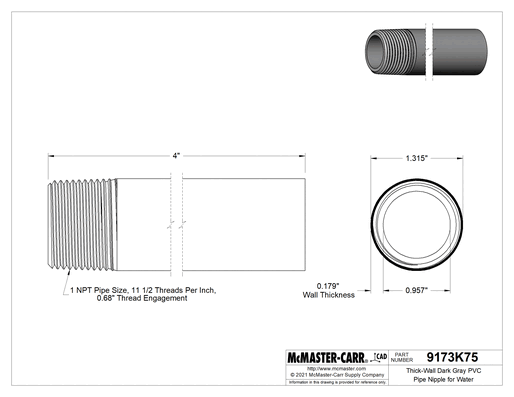

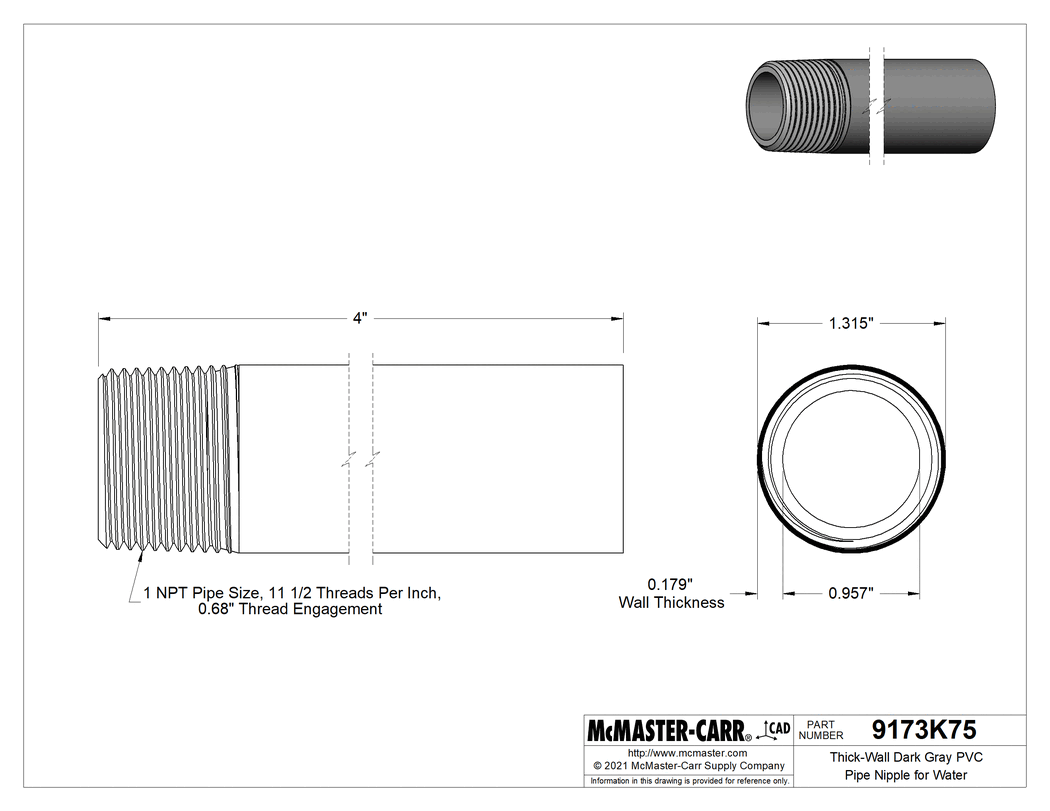

The information in this 3-D model is provided for reference only.
