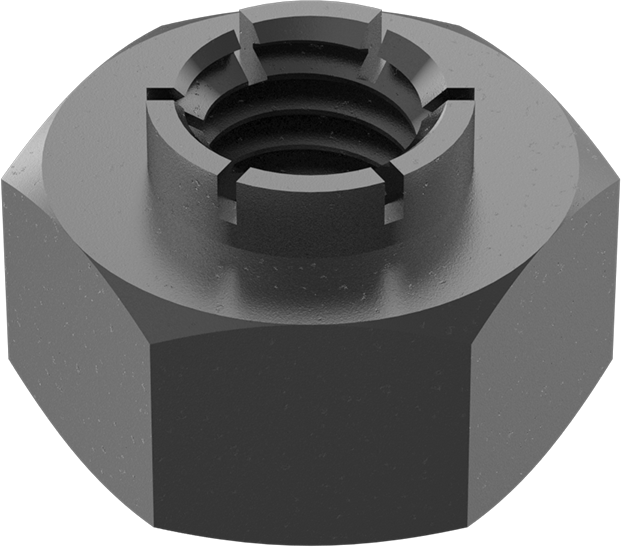

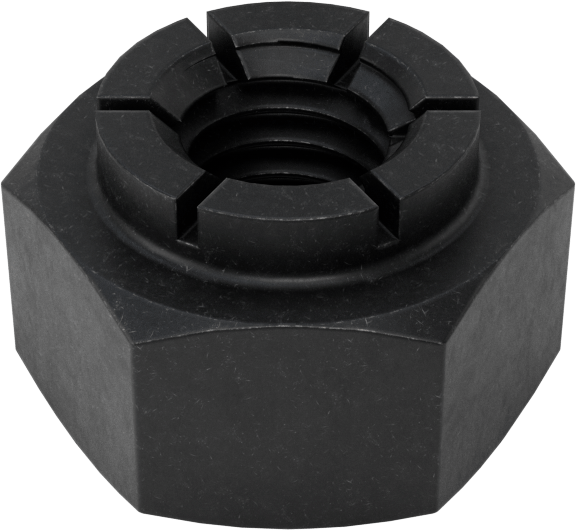

18-8 Stainless Steel Flex-Top Locknut for Heavy Vibration
Black-Oxide Finish, 10-32 Thread Size
Thread Direction | Right Hand |
Hex Nut Profile | Standard |
Locking Type | Flex-Top |
Finished Material | Black-Oxide 18-8 Stainless Steel |
Thread Size | 10-32 |
Width | 3/8" |
Height | 1/4" |
Drive Style | External Hex |
Nut Type | Hex, Locknut |
Performance | Heavy Vibration Resistant, Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Fine |
Thread Type | UNF |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The top section of these nuts expands to grip the screw on all sides for a stronger hold than both nylon-insert and distorted-thread locknuts. They’re often used in equipment with constant, vigorous vibration, such as engines. These locknuts are reusable a handful of times, but the holding power decreases with each use.
Black-Oxide 18-8 Stainless Steel—Typically chosen for their appearance, these nuts have a dark, matte coating to create a finished look. They resist rust in wet and outdoor environments, but won't hold up to the harsh chemicals that 316 stainless steel can.

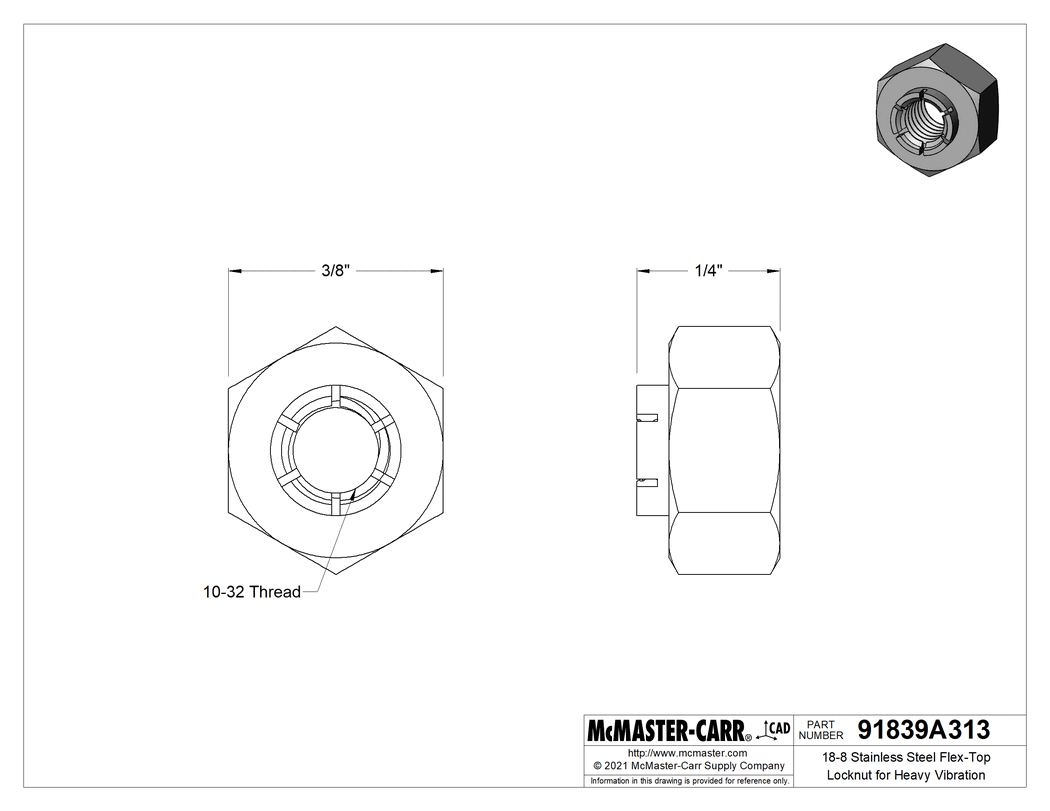

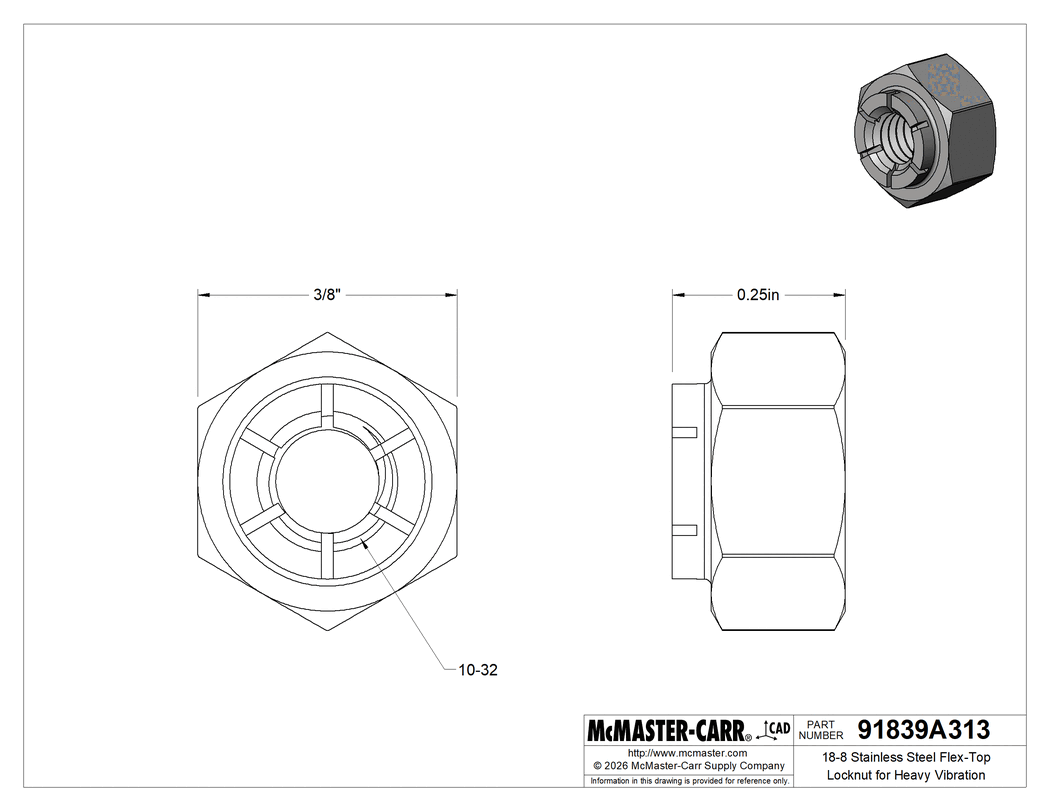

The information in this 3-D model is provided for reference only.
