    Captive Panel Screw with Aluminum Head

    Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness

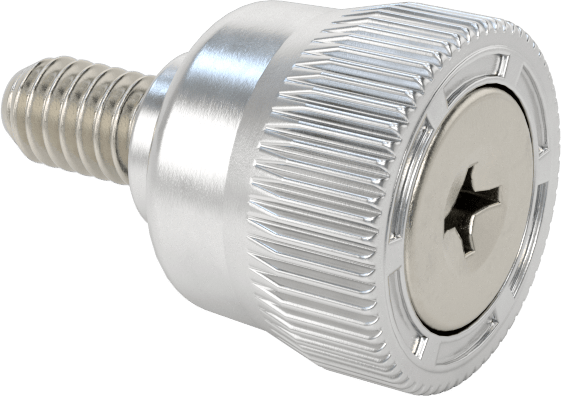

    Image of Product. Front orientation. Captive Panel Screw with Aluminum Head, Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness .

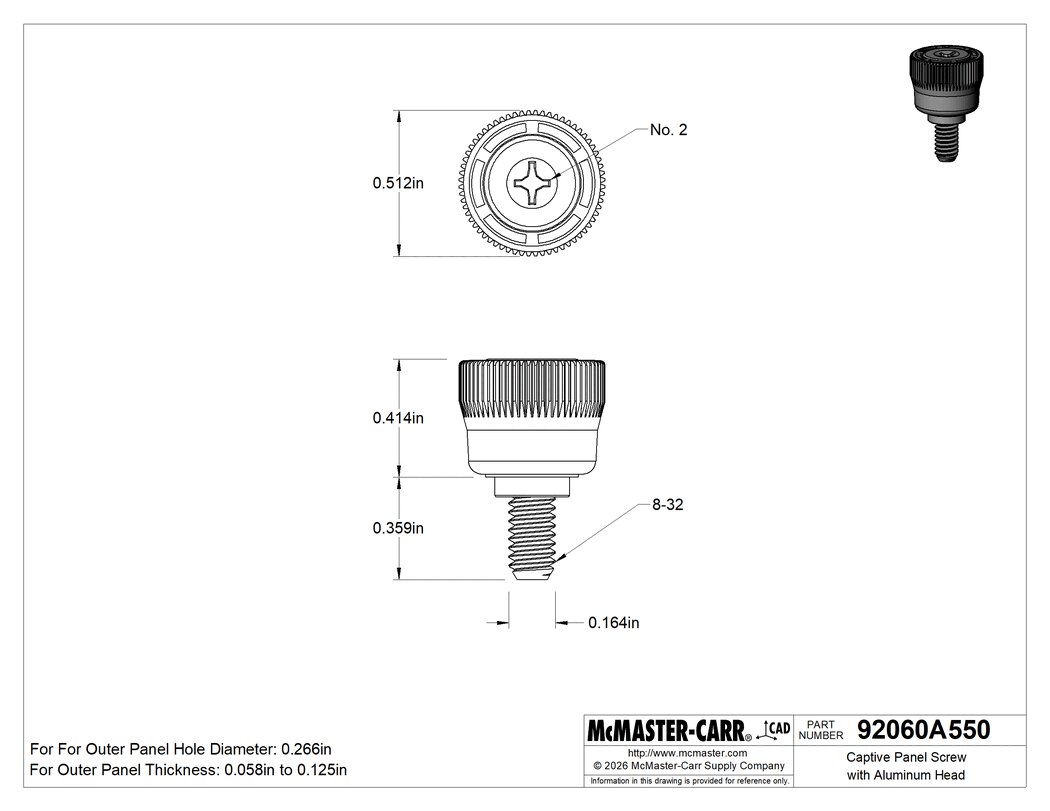

    Technical Drawing of Captive Panel Screw with Aluminum Head, Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness .
    Image of Product. Back orientation. Captive Panel Screw with Aluminum Head, Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness .
    Image of Product. Back orientation. Captive Panel Screw with Aluminum Head, Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness .
    Image of Product. Front orientation. Captive Panel Screw with Aluminum Head, Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness .

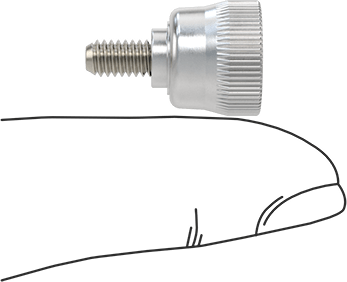

    Image of Product. Side1 orientation. Contains SizingReference. Captive Panel Screw with Aluminum Head, Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness .
    Image of Product. Side1 orientation. Contains SizingReference. Captive Panel Screw with Aluminum Head, Flare-in, Aluminum, 8-32 Thread, for 0.058"-0.125" Thickness .
    2-D PDF
    00000 each
    92060A550
    In stock
    92060A550
    1-99 each00000
    100 or more00000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Body Material

    Aluminum

    Thread Size

    8-32

    For Outer Panel Thickness

    0.058" to 0.125"

    For Outer Panel Hole Diameter

    0.266"

    Head

    Diameter

    0.516"

    Height

    0.438"

    Length

    23/64"

    Screw Material

    430 Stainless Steel

    Head Material

    Aluminum

    Captive Panel Screw Type

    Threaded

    Drive Size

    No. 2

    Drive Style

    Phillips

    Fastener Head Type

    Thumb

    Head Texture

    Knurled

    Screw Size Decimal Equivalent

    0.164"

    System of Measurement

    Inch

    Thread Direction

    Right Hand

    Thread Spacing

    Coarse

    Thread Type

    UNC

    Thumb Screw Grip Style

    Knurled Head

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Related Product

    Installation Tools

    The base flares out during installation, creating a backside flange in hard materials and near edges in panels up to 0.312" thick. Install with a flare-in installation tool and an arbor press. They require a 90° flared hole. Screws become a part of the panel when installed, so they won't fall out and get lost. They're often used with surface mount nuts.

    Aluminum Body—Aluminum bodies resist corrosion in wet environments and are nonmagnetic.

    The information in this 3-D model is provided for reference only.
