    18-8 Stainless Steel Washer

    for Number 2 Screw, General Purpose, 0.094" ID, 0.250" OD

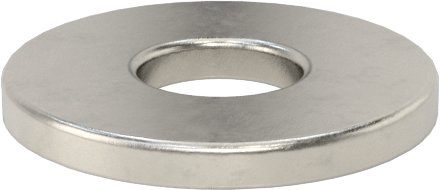

    Image of Product. Bottom orientation. 18-8 Stainless Steel Washer, for Number 2 Screw, General Purpose, 0.094" ID, 0.250" OD.

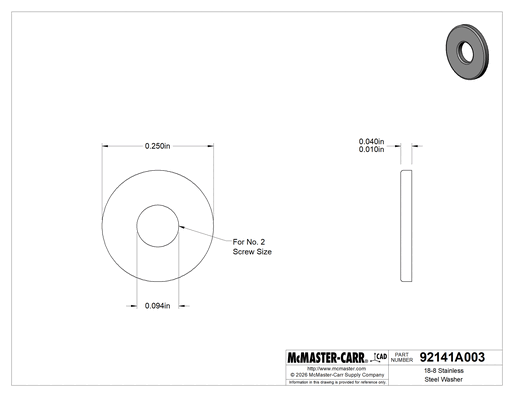

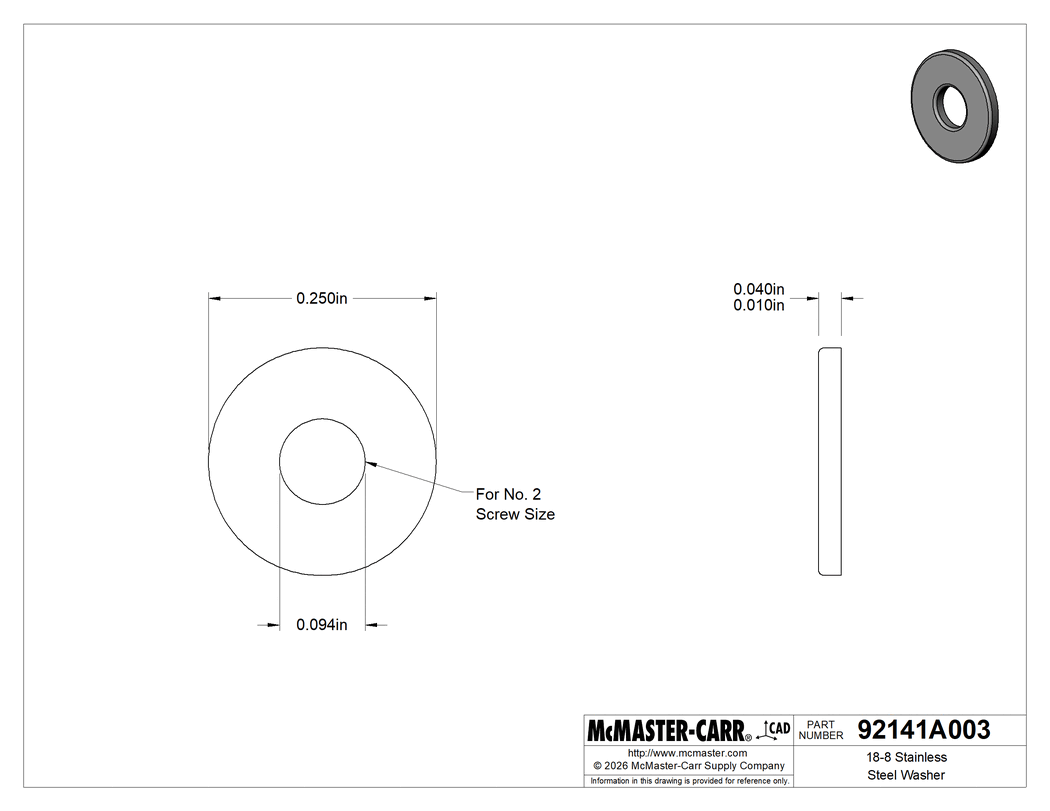

    Technical Drawing of 18-8 Stainless Steel Washer, for Number 2 Screw, General Purpose, 0.094" ID, 0.250" OD.
    Image of Product. Side1 orientation. Contains SizingReference. 18-8 Stainless Steel Washer, for Number 2 Screw, General Purpose, 0.094" ID, 0.250" OD.
    2-D PDF
    00000 per pack of 100
    92141A003
    In stock
    92141A003
    00000 per pack of 100
    Pack of 100
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Washer Designation

    General Purpose

    Material

    18-8 Stainless Steel

    For Screw Size

    No. 2

    ID

    0.094"

    OD

    0.250"

    Thickness

    0.01" to 0.04"

    Hardness

    Not Rated

    Performance

    Corrosion Resistant

    System of Measurement

    Inch

    Washer Type

    Flat

    Country of Origin

    China, India, Taiwan

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731822.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Your go-to metal washer for every screw size. Washers take the pressure off nuts and screws to protect mounting surfaces.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these washers resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

    Compatible Products for This Washer
    Fasten

    Hex Head Screws

    4 products

    Hex Nuts

    5 products

    Socket Head Screws

    53 products

    Locknuts

    5 products

    Resist loosening

    Lock Washers

    6 products
