    Zinc-Plated Carbon Steel Step Machine Key Stock

    for Shafts, for 1/2" Wide x 3/16" High Shaft Keyway

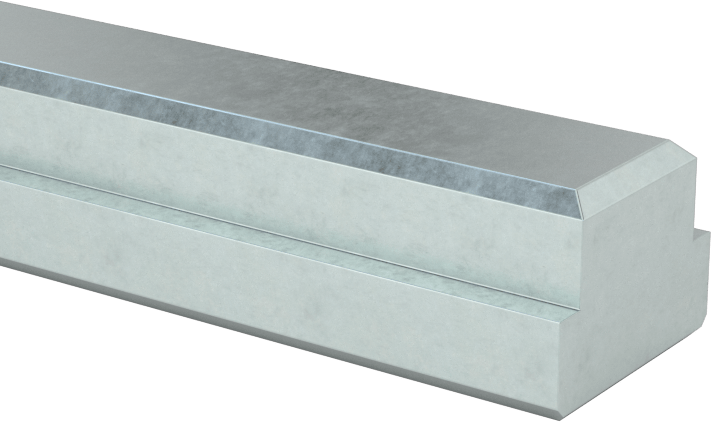

    Image of Product. Front orientation. Zinc-Plated Carbon Steel Step Machine Key Stock, for Shafts, for 1/2" Wide x 3/16" High Shaft Keyway.

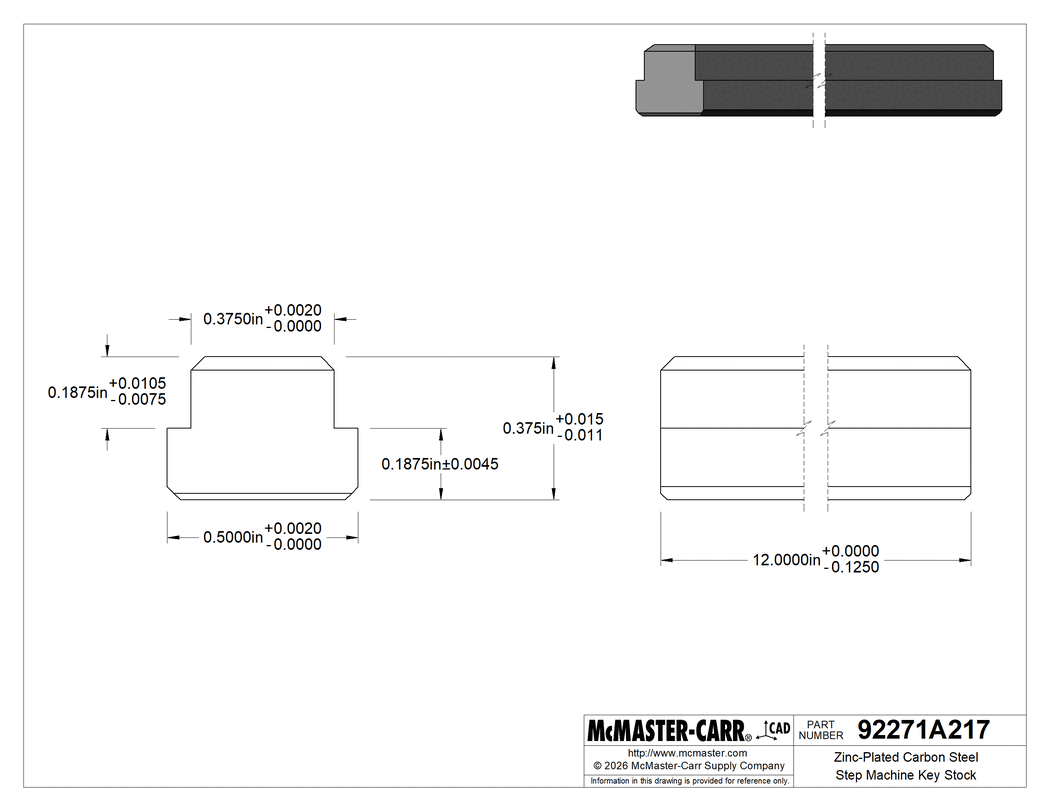

    Technical Drawing of Zinc-Plated Carbon Steel Step Machine Key Stock, for Shafts, for 1/2" Wide x 3/16" High Shaft Keyway.
    Image of Attribute. Front orientation. Contains Annotated. Zinc-Plated Carbon Steel Step Machine Key Stock, for Shafts, for 1/2" Wide x 3/16" High Shaft Keyway.
    Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Carbon Steel Step Machine Key Stock, for Shafts, for 1/2" Wide x 3/16" High Shaft Keyway.
    2-D PDF
    000000 each
    92271A217
    In stock
    92271A217
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Key Type

    Step

    For Use With

    Shafts

    Material

    Zinc-Plated 1018-1045 Carbon Steel

    Length

    12"

    For Hub Keyway

    Width (A)

    3/8"

    Height (B)

    3/16"

    Width (A) Tolerance

    0.000" to 0.002"

    Height (B) Tolerance

    -0.008" to 0.01"

    For Shaft Keyway

    Width (C)

    1/2"

    Height (D)

    3/16"

    Width (C) Tolerance

    0.000" to 0.002"

    Height (D) Tolerance

    -0.004" to 0.004"

    Height

    3/8"

    Tolerance Rating

    Standard

    Tolerance

    Height

    -0.011" to 0.014"

    Length

    -0.125" to 0.000"

    Minimum Hardness

    Rockwell B50

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731824.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    When a keyway is damaged, cut a new, wider one. This key stock is stepped to match repaired keyways in shafts or gears. Cut it to length to create the machine key you need.

    Zinc-Plated 1018-1045 Carbon Steel—Zinc-plated 1018-1045 carbon steel key stock is an economical choice with good strength and resists corrosion in wet environments.

    The information in this 3-D model is provided for reference only.
