    30 mm Panel-Mount Switch

    15/16" Lever, 2 Position, 2 Circuit

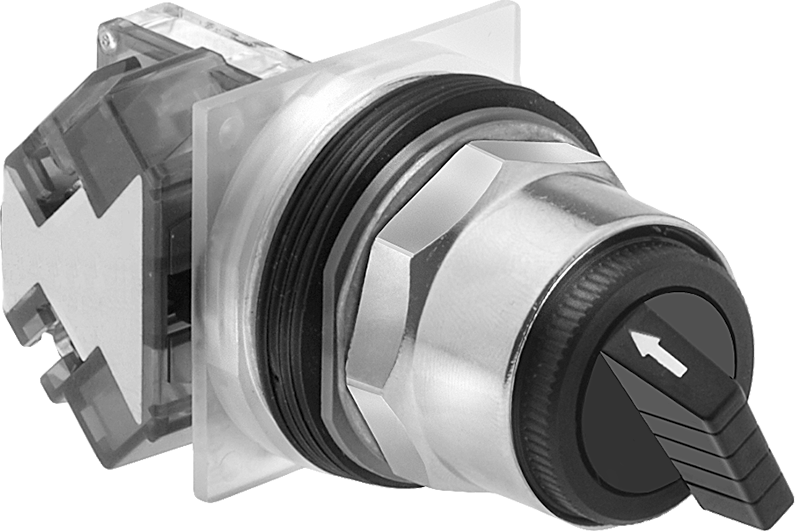

    Image of Product. Front orientation. 30 mm Panel-Mount Switch, 15/16" Lever, 2 Position, 2 Circuit.

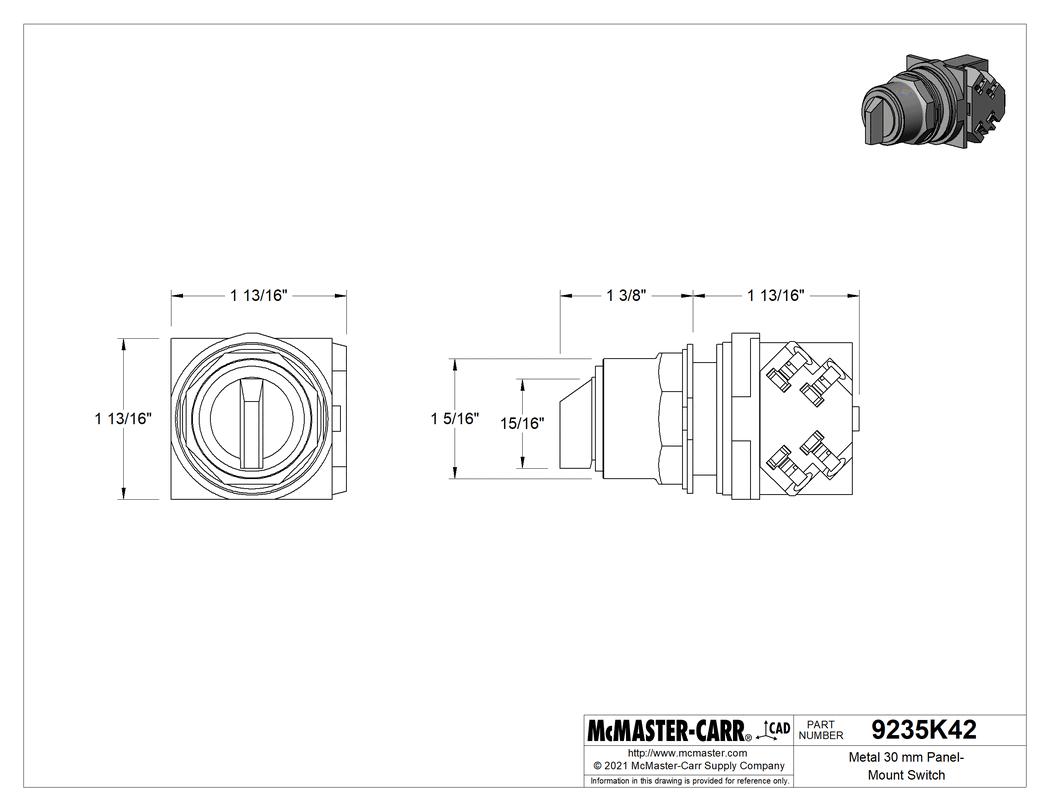

    Technical Drawing of 30 mm Panel-Mount Switch, 15/16" Lever, 2 Position, 2 Circuit.
    Image of Specification. Terminal Numbering. Front orientation. 30 mm Panel-Mount Switch, 15/16" Lever, 2 Position, 2 Circuit.
    Terminal Numbering
    Image of Specification. Terminal Numbering. Front orientation. 30 mm Panel-Mount Switch, 15/16" Lever, 2 Position, 2 Circuit.
    Terminal Numbering
    2-D PDF
    0000000 each
    9235K42
    In stock
    9235K42
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Number of Positions

    2

    Wire Connection

    Screw Terminal

    Illumination

    Not Illuminated

    Lever Length

    15/16"

    Number of Circuits Controlled

    2

    Switch Starting Position

    1 Off and 1 On

    Switch Action

    Maintained

    Number of Terminals

    4

    Switch Designation

    DPST-1NO/1NC

    Switching Current @ Voltage

    6 amp @ 120V AC, 2.5 amp @ 24V DC

    Maximum Voltage

    600V AC
    600V DC

    Diameter

    1 5/16"

    Depth Behind Panel

    2 11/16"

    For Maximum Number of Contact Blocks

    4

    Actuator Color

    Black

    Actuator Base Material

    Metal

    Actuator Material

    Plastic

    Actuator Style

    Lever

    Certification

    UL Listed, CSA Certified, CE Marked

    Enclosure Rating

    IP20, NEMA 4, NEMA 13, IP66

    Environment

    Dusty, Oily, Outdoor, Washdown, Wet

    For Maximum Panel Thickness

    1/4"

    For Panel Cutout Diameter

    1 3/16", 30 mm

    Mounting Location

    Panel

    Switch Type

    Manual

    Terminal Numbering

    1 to 2, 3 to 4

    Country of Origin

    Mexico

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    853650.9025

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Rated NEMA 4, 13, and IP66, these switches are protected from washdowns and oil/coolant spraying. They include enough contact blocks to control the number of circuits listed. The contact block is rated IP20.
