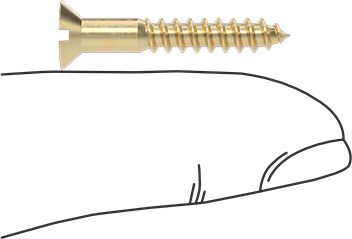

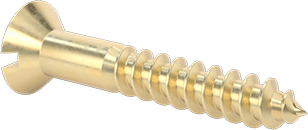

Brass Slotted Flat Head Screws for Wood
Number 7 Size, 1" Long
2-D PDF
000000 per pack of 50
92406A175
In stock
92406A175
000000 per pack of 50
Pack of 50
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Tip Type | Pointed |
Drive Style | Slotted |
Fastener Head Type | Flat |
For Use In | Wood |
Material | Brass |
Screw Size | No. 7 |
Length | 1" |

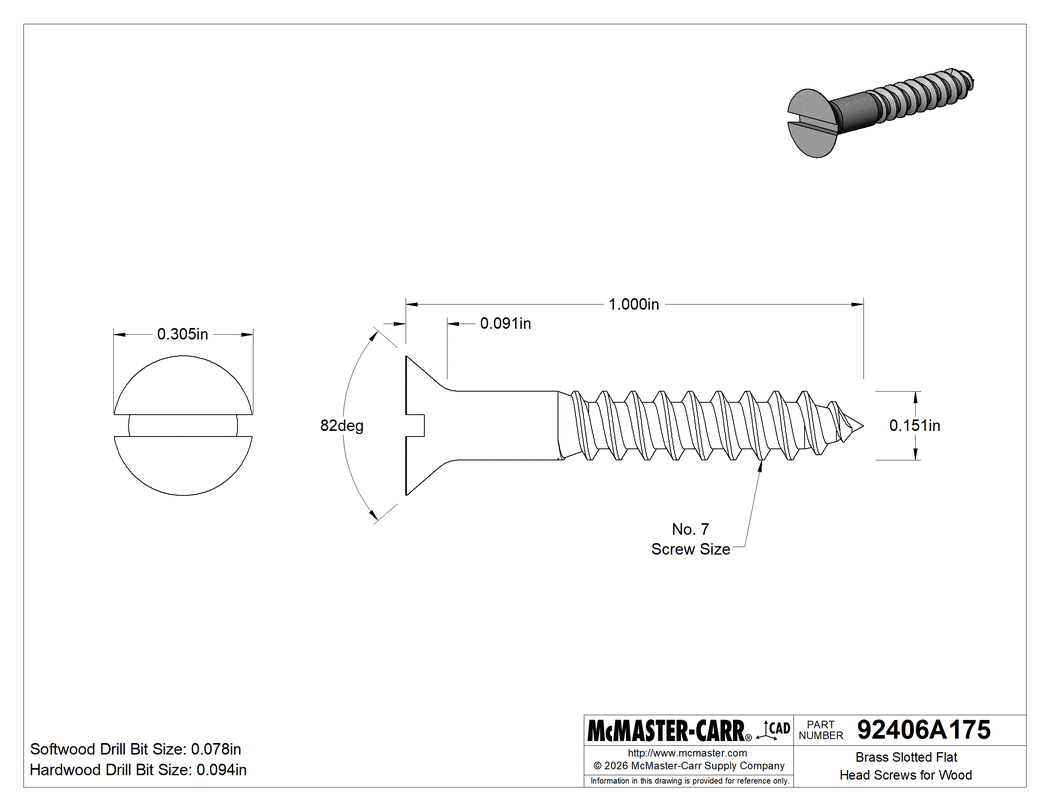

Head | |
Diameter | 0.305" |
Height | 0.091" |
Softwood Drill Bit Size | 1/16" |
Hardwood Drill Bit Size | 3/32" |
Countersink Angle | 82° |
Flat Head Profile | Standard |
Approximate Threads per Inch | 16 |
Threading | Partially Threaded |
Tapping Method | Thread Forming |
Hardwood Drill Bit Size Decimal Equivalent | 0.094" |
Minimum Thread Length | 0.667" |
Performance | Corrosion Resistant, Nonmagnetic |
Screw Size Decimal Equivalent | 0.151" |
Shank Cross Section | Round |
Softwood Drill Bit Size Decimal Equivalent | 0.063" |
System of Measurement | Inch |
Thread Direction | Right Hand |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 741533.0500 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

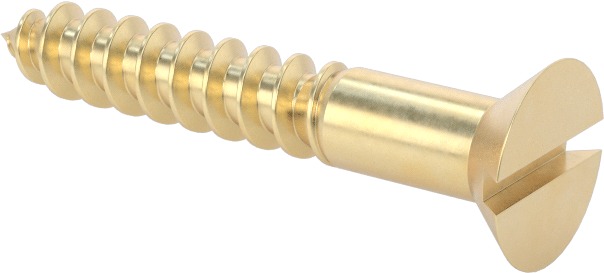

These slotted flat head screws sit flush, have a shiny look, and won't rust in wet environments. With only two contact points, it's best to hand tighten the slotted drive instead of using power tools.
Drill a pilot hole slightly smaller than the screw to prevent splitting. Length is measured from the top of the head.
