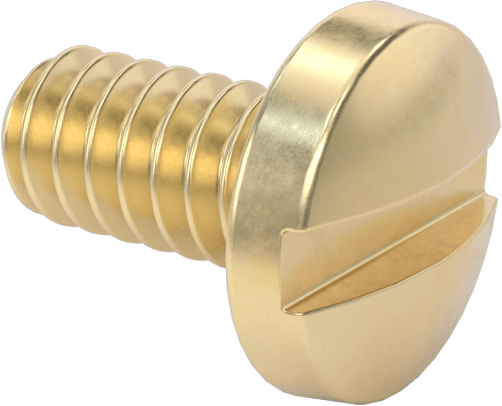

Brass Binding Head Slotted Screws
10-24 Thread Size, 3/8" Long
Thread | |
Size | 10-24 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Binding |
Profile | Wide |
Height | 0.123" |
Diameter | 0.399" |
Drive Style | Slotted |
Length | 3/8" |
Threading | Fully Threaded |
Tensile Strength | 50,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B40 |
Material | Brass |
Performance | Conductive, Corrosion Resistant, Nonmagnetic |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | United States, China, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Taiwan, Thailand, United Arab Emirates |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 741533.8550 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Combine the conductive and nonmagnetic properties of brass with the wide, tapered head of a binding screw. These screws are often used to secure wires and terminals in electrical applications. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.

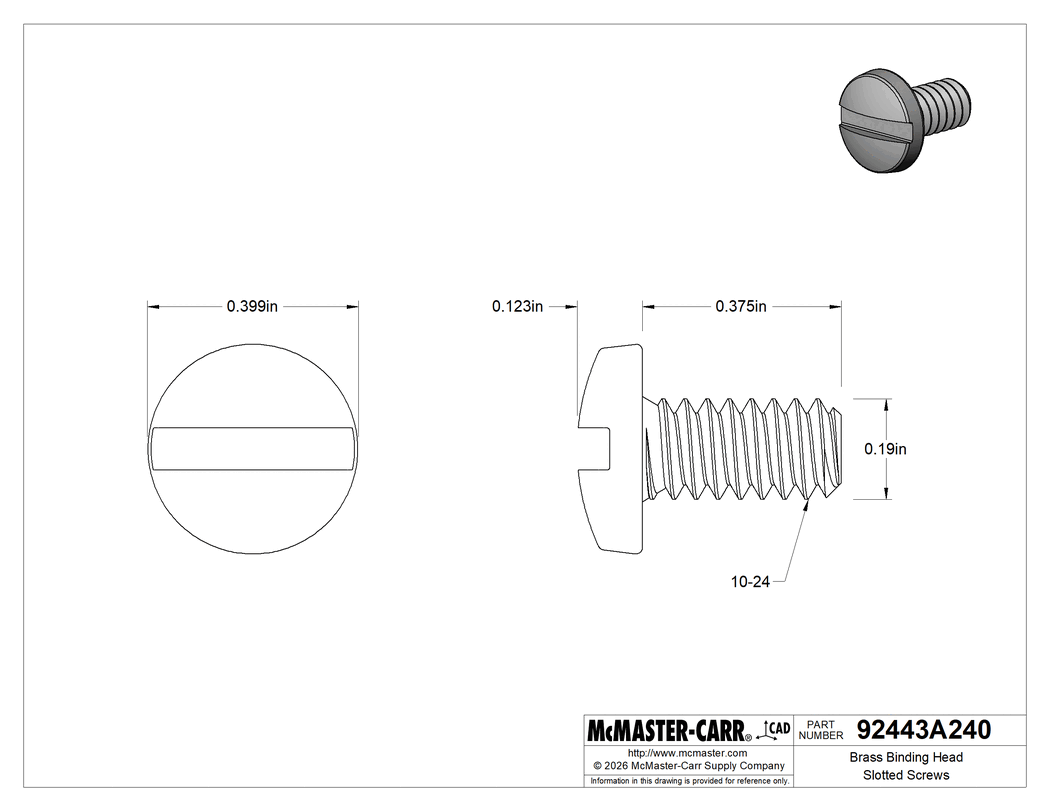

The information in this 3-D model is provided for reference only.
