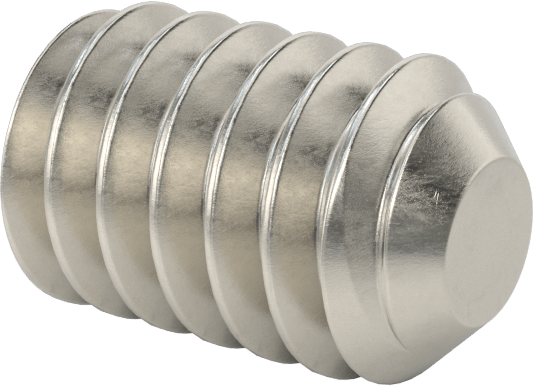

Stainless Steel Flat-Tip Set Screw
Super-Corrosion-Resistant 316, M2 x 0.4 mm Thread, 3 mm Long
Drive Style | Hex |
Tip Type | Flat |
Material | 316 Stainless Steel |
Thread Size | M2 × 0.4 mm |
Length | 3 mm |
Drive Size | 0.9 mm |
Hardness | Rockwell B80 |
Specifications Met | DIN 913, ISO 4026 |
Fastener Head Type | Headless |
Performance | Chemical Resistant, Highly Corrosion Resistant, Nonmarring |
System of Measurement | Metric |
Thread Direction | Right Hand |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Country of Origin | Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These corrosion-resistant screws spread out holding power and protect surfaces from damage. Made of stainless steel, they won't rust, but they're not as strong as alloy steel. Unlike cup and cone tips, the flat tip distributes pressure evenly, reducing marring but not holding as tightly. They're a good choice for repositioning parts frequently on jigs, fixtures, and other applications where the tip presses against a flat surface.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.
Install
Adhere

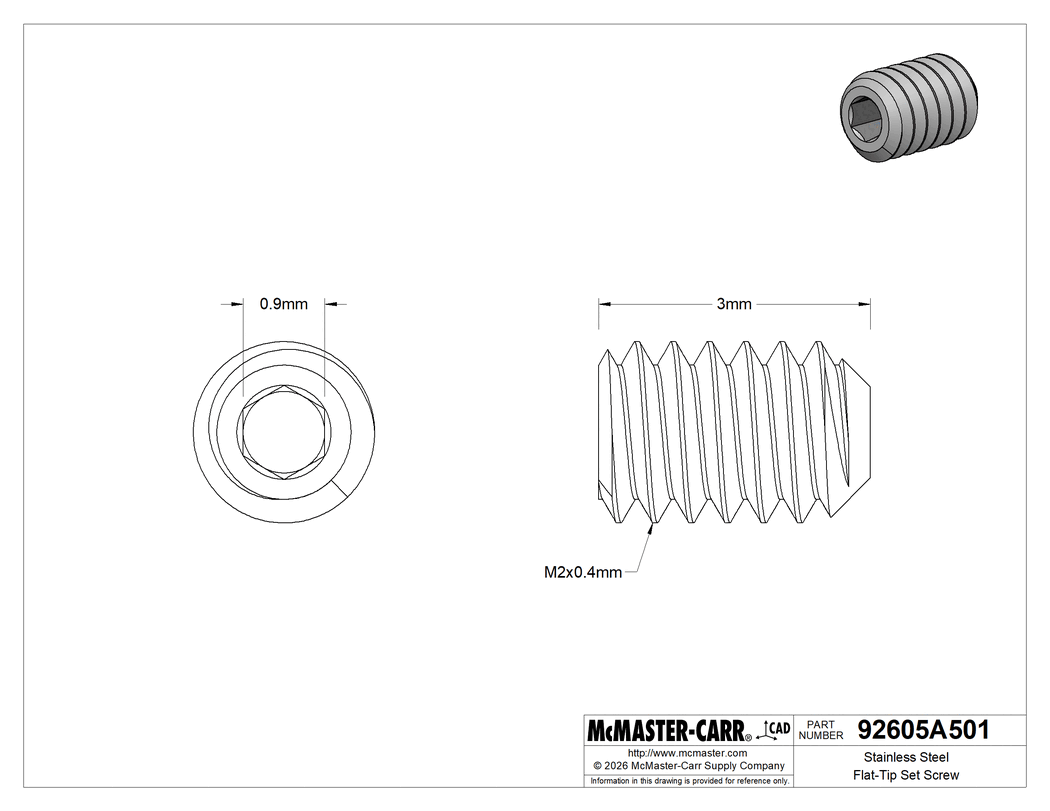

The information in this 3-D model is provided for reference only.
