Alloy Steel Cone-Tip Set Screw

Black Oxide, 1/4"-20 Thread, 1/2" Long

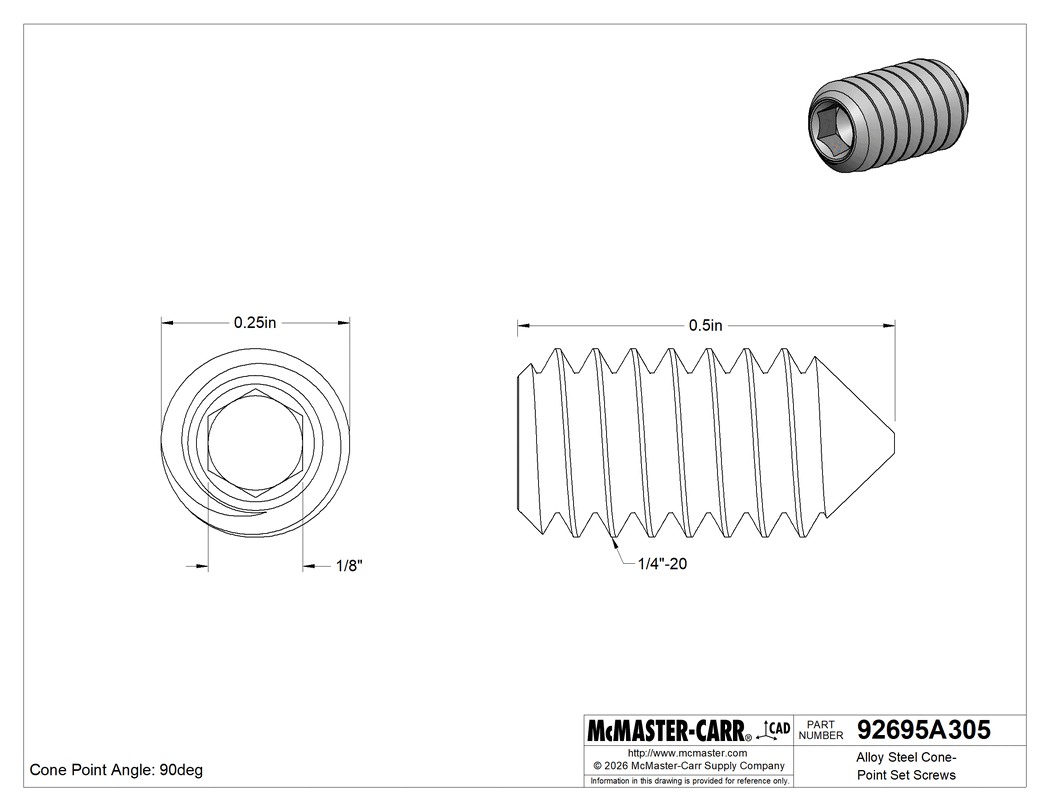

Technical Drawing of Alloy Steel Cone-Tip Set Screw, Black Oxide, 1/4"-20 Thread, 1/2" Long.

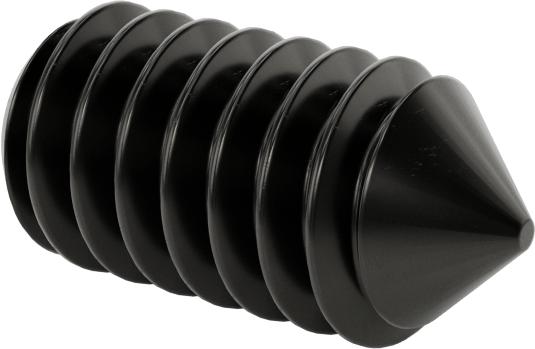

Image of Product. Front orientation. Alloy Steel Cone-Tip Set Screw, Black Oxide, 1/4"-20 Thread, 1/2" Long.

Image of Product. Side1 orientation. Contains SizingReference. Alloy Steel Cone-Tip Set Screw, Black Oxide, 1/4"-20 Thread, 1/2" Long.

2-D PDF

00000 per pack of 25

92695A305

In stock

92695A305

00000 per pack of 25

QuantityPack of 25

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Drive Style	Hex
Tip Type	Cone
Material	Black-Oxide Alloy Steel
Thread Size	1/4"-20
Length	1/2"
Cone Point Angle	90°
Drive Size	1/8"
Hardness	Rockwell C45
Specifications Met	ASME B18.3, ASTM F912
Fastener Head Type	Headless
Screw Size Decimal Equivalent	0.250"
System of Measurement	Inch
Thread Direction	Right Hand
Thread Fit	Unified Standard Class 3A
Thread Spacing	Coarse
Thread Type	UNC
Country of Origin	Taiwan
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Permanently secure parts that you don't intend to move. The pointed tip bites down on surfaces but may scratch or gouge. Made of alloy steel, they're strong enough to hold components without wearing down.

Black-Oxide Alloy Steel—These screws have a dark matte finish that offers minimal corrosion resistance, so they're best for dry environments.
