    Mechanical Pump Shaft Seal

    Spring, Number 80509

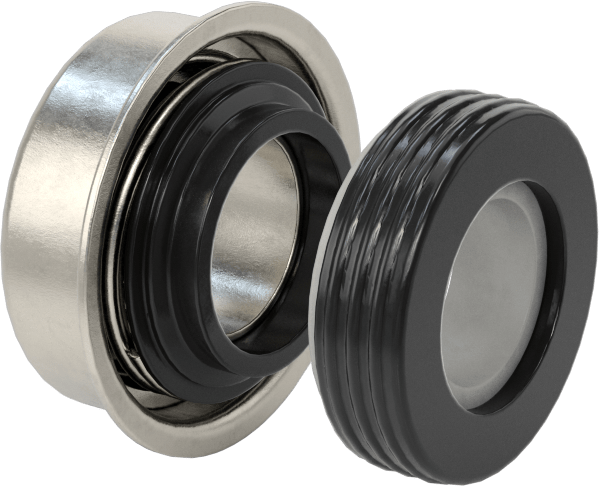

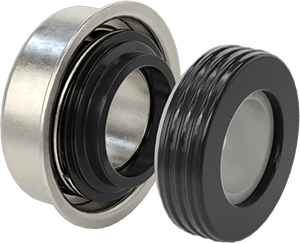

    Image of Product. Front orientation. Mechanical Pump Shaft Seal, Spring, Number 80509.

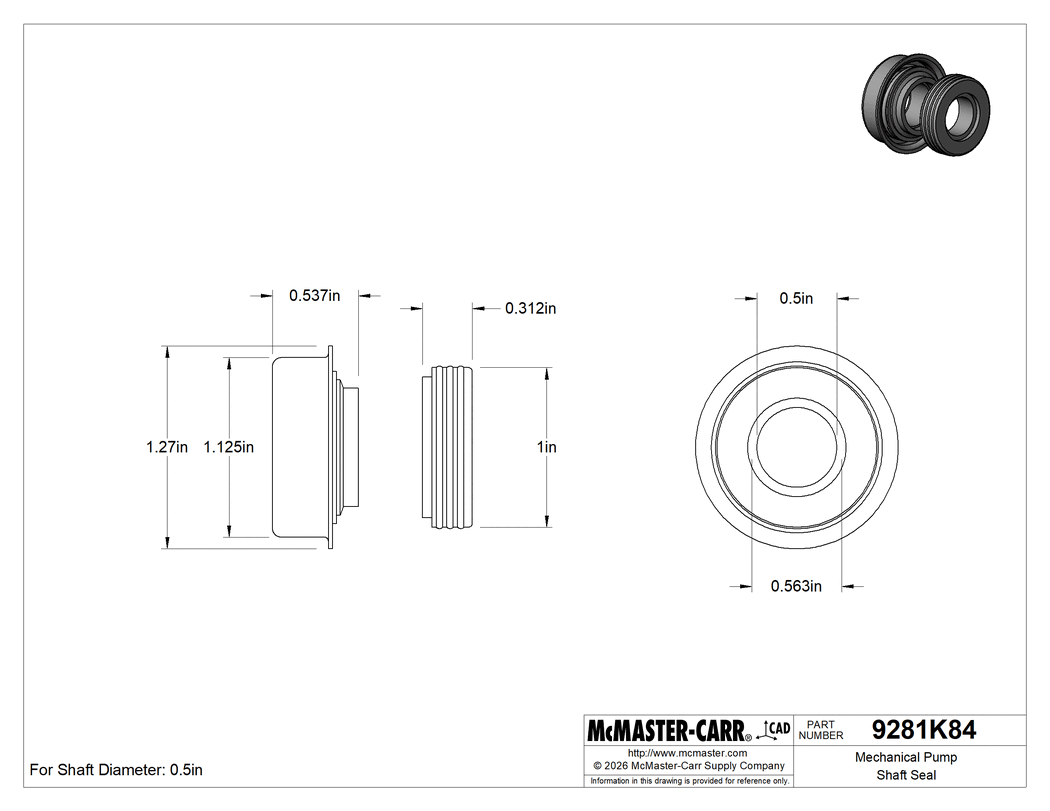

    Technical Drawing of Mechanical Pump Shaft Seal, Spring, Number 80509.
    Image of Product. Back orientation. Mechanical Pump Shaft Seal, Spring, Number 80509.
    Image of Product. Front orientation. Exploded view. Contains Annotated. Mechanical Pump Shaft Seal, Spring, Number 80509.

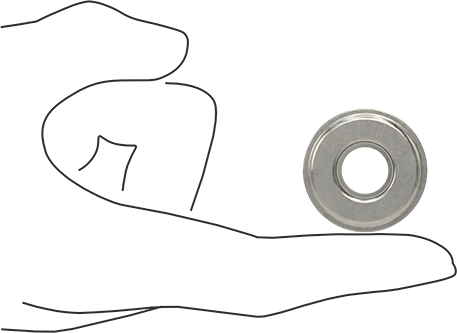

    Image of Product. Side1 orientation. Contains SizingReference. Mechanical Pump Shaft Seal, Spring, Number 80509.
    2-D PDF
    000000 each
    9281K84
    In stock
    9281K84
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Case

    304 Stainless Steel

    Spring

    304 Stainless Steel

    Diaphragm

    Viton® Fluoroelastomer

    Washer

    Carbon

    Seat

    Ceramic

    Gasket

    Viton® Fluoroelastomer

    For Shaft Diameter

    1/2"

    Manufacturer Equivalent Number

    80509

    Manufacturer/Brand Equivalent

    John Crane Type 6A
    Pac-Seal Type 68
    Sealol Type 6

    Seal

    ID

    0.500"

    OD

    1.125"

    Width

    0.537"

    Seat

    ID

    0.585"

    OD

    1.000"

    Width

    0.312"

    Maximum Pressure

    75 psi

    Cannot Be Sold To

    Outside North America

    Diaphragm Hardness

    Durometer 70A (Hard)

    For Motion

    Rotary

    For Sealing

    Shafts

    For Shaft Motion

    Oscillating

    For Use With

    Animal Oil
    Butyl Alcohol
    Ethylene Glycol
    Glycerin
    Grease
    Hydraulic Oil
    Isopropyl Alcohol
    Mineral Oil
    Motor Oil
    Oil
    Petroleum
    Phosphoric Acid
    Sodium Bicarbonate (Baking Soda)
    Transmission Fluid
    Vegetable Oil

    Maximum Speed

    For Rotary Motion

    3,600 rpm

    For Oscillating Motion

    82 ft/sec

    System of Measurement

    Inch

    Temperature

    0° F to 400° F

    Country of Origin

    Mexico

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848420.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Built for small circulation and dispensing pumps, these seals have short springs. The spring-loaded design keeps the sealing surfaces in contact as the material wears. Seals come furnished as two pieces—the seal and the seat. The seal is comprised of the case, spring, diaphragm, and washer, which come locked together as one piece. Seal Width represents the working height, which is the compressed length when installed. The seat is comprised of the seat and the gasket.

    Note: Maximum performance values cannot be achieved simultaneously. For example, speed is affected by pressure, temperature, and other operating conditions.

    Viton® Fluoroelastomer Diaphragm—Viton® fluoroelastomer diaphragms resist a wider range of chemicals than Buna-N.

    Viton® Fluoroelastomer Gasket—Viton® fluoroelastomer gaskets resist a wider range of chemicals than Buna-N.

    Cannot Be Sold Outside North America—Products cannot be sold outside North America due to restrictions.

    The information in this 3-D model is provided for reference only.
