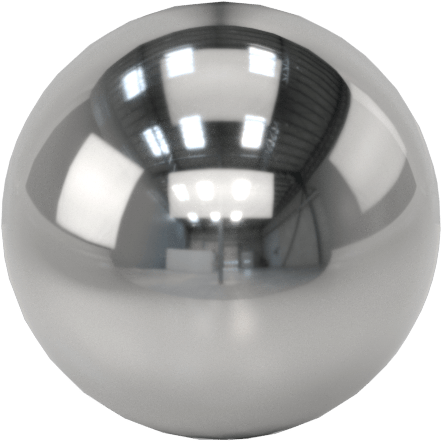

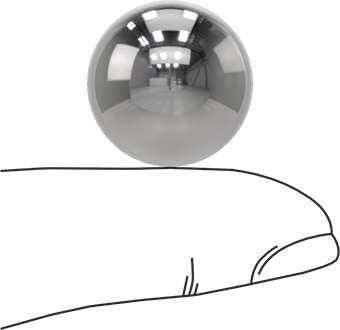

Multipurpose 304 Stainless Steel Ball
3/4" Diameter
Precision Ball Grade | 100 |
Shape | Ball |
Diameter | 3/4" |
Diameter Tolerance | -0.0005" to 0.0005" |
Fabrication | Cold Worked |
Hardness | Rockwell C25 (Hard) |
Specifications Met | ASTM A240, ISO 3290, SAE J405 |
Magnetic Properties | Nonmagnetic |
Appearance | Mirror Like |
Application | Multipurpose |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Construction | Solid |
Container Net Weight | 5 lb. |
Elongation | 50% |
Finish | Passivated |
Heat Treatable | No |
Material | 304 Stainless Steel |
Material Composition | |
Carbon | 0% to 0.08% |
Chromium | 17.5% to 20% |
Iron | 64.74% to 74.5% |
Manganese | 0% to 2% |
Nickel | 8% to 12% |
Nitrogen | 0% to 0.1% |
Phosphorus | 0% to 0.045% |
Silicon | 0% to 1% |
Sulfur | 0% to 0.03% |
Maximum Temperature | 1,500° F |
Minimum Temperature | Not Rated |
Performance | Corrosion Resistant, Chemical Resistant, High Temperature, Ultra Formable, Highly Weldable |
Smoothness | 5 Ra |
Tolerance Rating | Tight |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Yield Strength | Not Rated |
Country of Origin | China, India |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 1C999 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848291.0020 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Whether inside pumps or furnace parts, these balls can be used in any mildly corrosive, high-temperature conditions. Made of 304 stainless steel, they won’t degrade when exposed to mild chemicals and water, even at temperatures up to 1500° F. They’re passivated to wash away surface particles that cause rust, and they’re polished to a mirror-like finish that contaminants can’t stick to. The result is balls that stay smooth and stand the test of time. These balls are made to strict ISO 3290 standards for roundness and surface quality.
Although 304 balls aren’t as wear resistant as 440C balls, they’re easier to fabricate. They’re also nonmagnetic.
Grade 100—Great for mechanical applications where you don’t need the exacting tolerances of Grade 25.

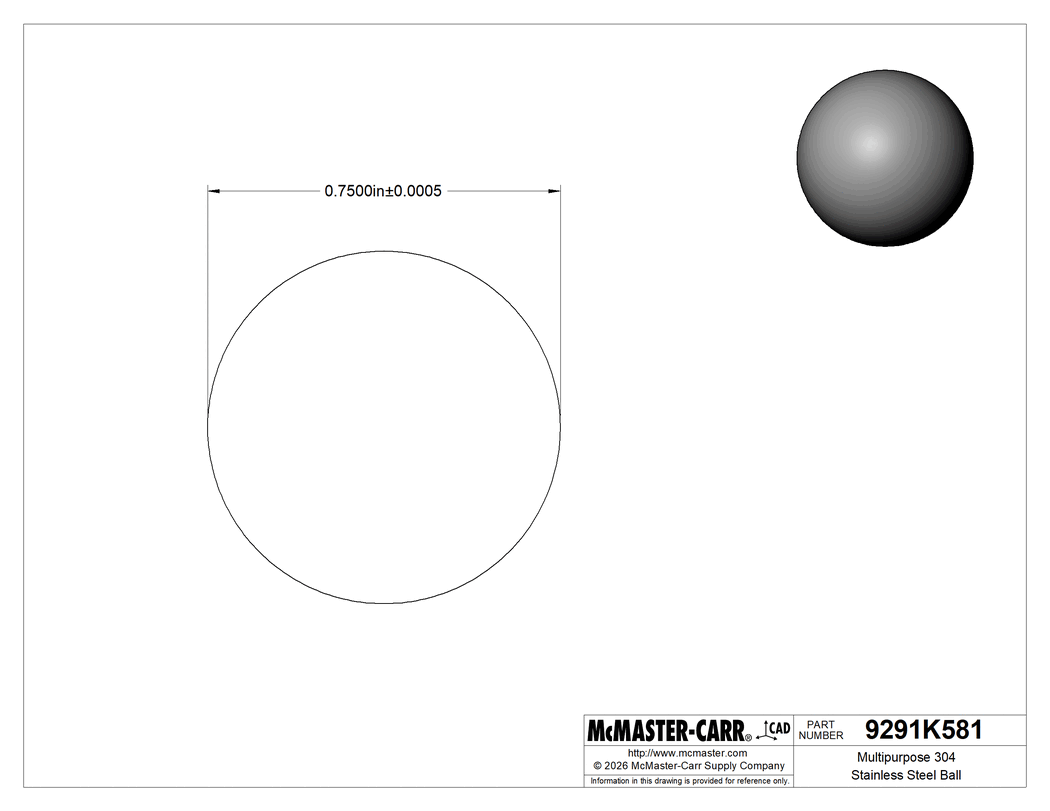

The information in this 3-D model is provided for reference only.
