    Zinc-Plated Steel Split Lock Washer

    for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD

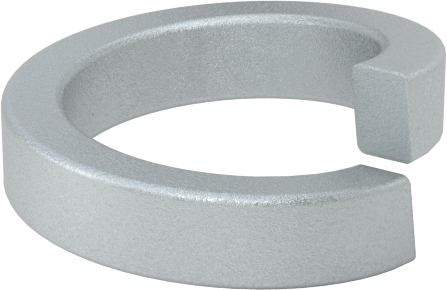

    Image of Product. Bottom orientation. Zinc-Plated Steel Split Lock Washer, for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD.

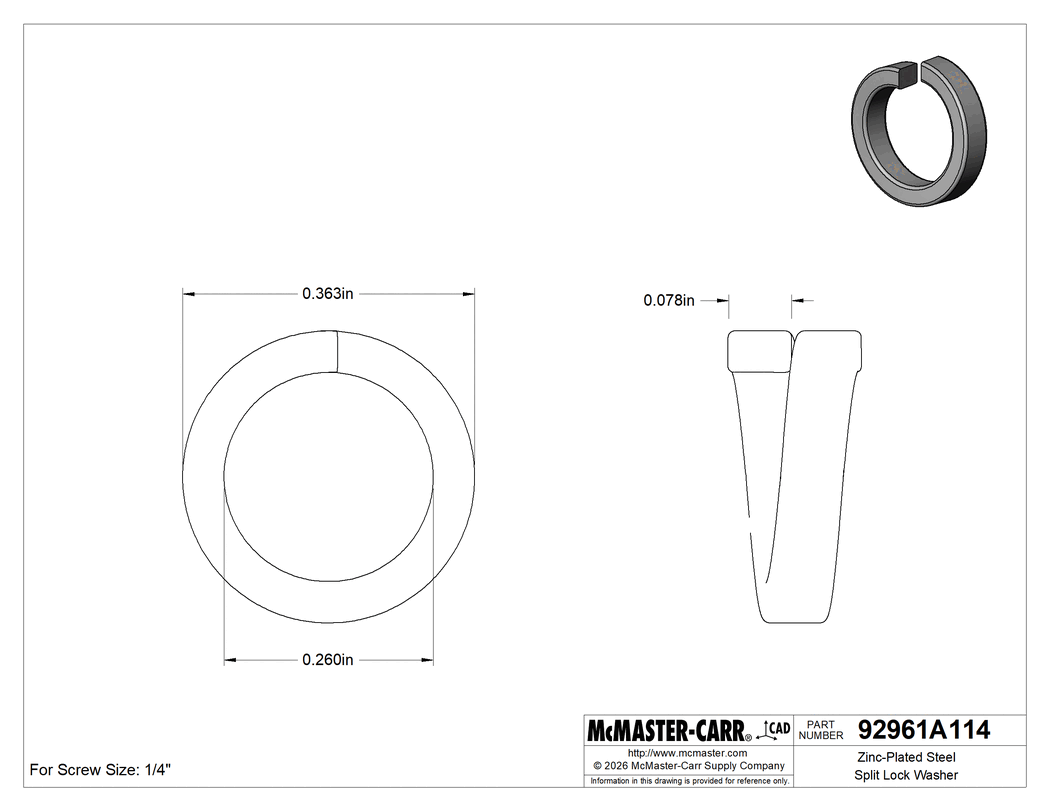

    Technical Drawing of Zinc-Plated Steel Split Lock Washer, for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD.

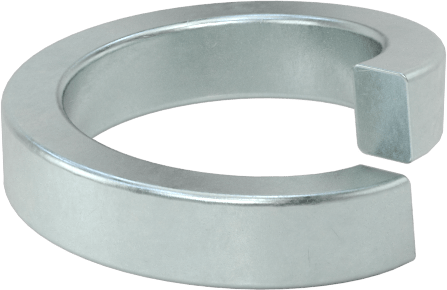

    Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Steel Split Lock Washer, for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD.
    2-D PDF
    00000 per pack of 50
    92961A114
    In stock
    92961A114
    00000 per pack of 50
    Pack of 50
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Socket Head Screws

    For Screw Size

    1/4"

    ID

    0.260"

    OD

    0.363"

    Thickness

    0.078"

    Specifications Met

    ASME B18.21.1

    Finish

    Zinc Plated

    Hardness

    Rockwell C38

    Material

    Steel

    System of Measurement

    Inch

    Washer Type

    Split

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731821.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Stop socket head screws from loosening due to mild vibration. These washers have a small diameter to fit under screws with narrow heads, but are still thick enough to keep fasteners secure. While they're not as vibration resistant as other lock washers, they are a great fit for electrical panels, light fixtures, and other light duty assemblies. Split lock washers are not reusable, and they only work with fasteners that have right-hand threads. Also known as high-collar lock washers.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

    Compatible Products for This Lock Washer
    Resist loosening

    Washers

    29 products

    Hex Nuts

    2 products

    Locknuts

    12 products

    The information in this 3-D model is provided for reference only.
