    Black-Oxide Steel Split Lock Washer

    for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD

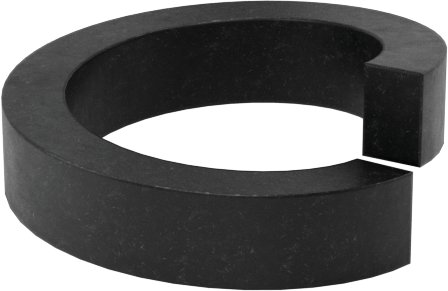

    Image of Product. Bottom orientation. Black-Oxide Steel Split Lock Washer, for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD.

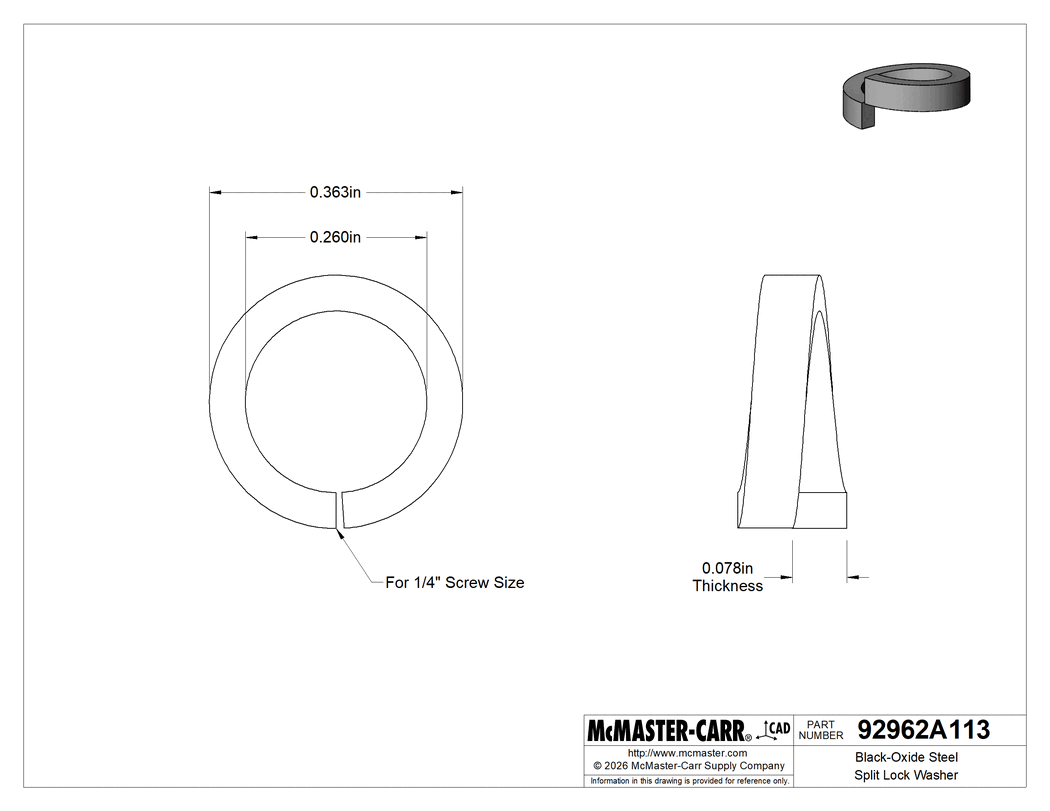

    Technical Drawing of Black-Oxide Steel Split Lock Washer, for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD.
    Image of Product. Side1 orientation. Contains SizingReference. Black-Oxide Steel Split Lock Washer, for 1/4" Size Socket Head Screw, 0.260" ID, 0.363" OD.
    2-D PDF
    00000 per pack of 50
    92962A113
    In stock
    92962A113
    00000 per pack of 50
    Pack of 50
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Socket Head Screws

    For Screw Size

    1/4"

    ID

    0.260"

    OD

    0.363"

    Thickness

    0.078"

    Specifications Met

    ASME B18.21.1

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Finish

    Black Oxide

    Hardness

    Rockwell C38

    Material

    Steel

    System of Measurement

    Inch

    Washer Type

    Split

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731821.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Stop socket head screws from loosening due to mild vibration. These washers have a small diameter to fit under screws with narrow heads, but are still thick enough to keep fasteners secure. While they're not as vibration resistant as other lock washers, they are a great fit for electrical panels, light fixtures, and other light duty assemblies. Split lock washers are not reusable, and they only work with fasteners that have right-hand threads. Also known as high-collar lock washers.

    Black-Oxide Steel—Typically chosen for their appearance, these washers have a dark, matte coating that creates a finished look. They offer minimal corrosion resistance, so they're best for dry environments.
