Left-Hand-Thread Thin-Profile Hex Nut
316 Stainless Steel, 7/16"-20 Thread Size
Hex Nut Profile | Thin |
Material | 316 Stainless Steel |
Thread Size | 7/16"-20 |
Width | 11/16" |
Height | 1/4" |
Drive Style | External Hex |
Nut Type | Hex |
Performance | Highly Corrosion Resistant |
System of Measurement | Inch |
Thread Direction | Left Hand |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Fine |
Thread Type | UNF |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These nuts tighten when turned to the left. Use them with left-hand rods and screws to prevent counterclockwise-moving parts from loosening. About half the height of standard-profile nuts, these fit in spaces with low clearance. You can also use them as jam nuts by threading them against another hex nut to hold it in place.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these nuts won't degrade when exposed to harsh weather, salt water, and most chemicals.
Fasten
Resist loosening

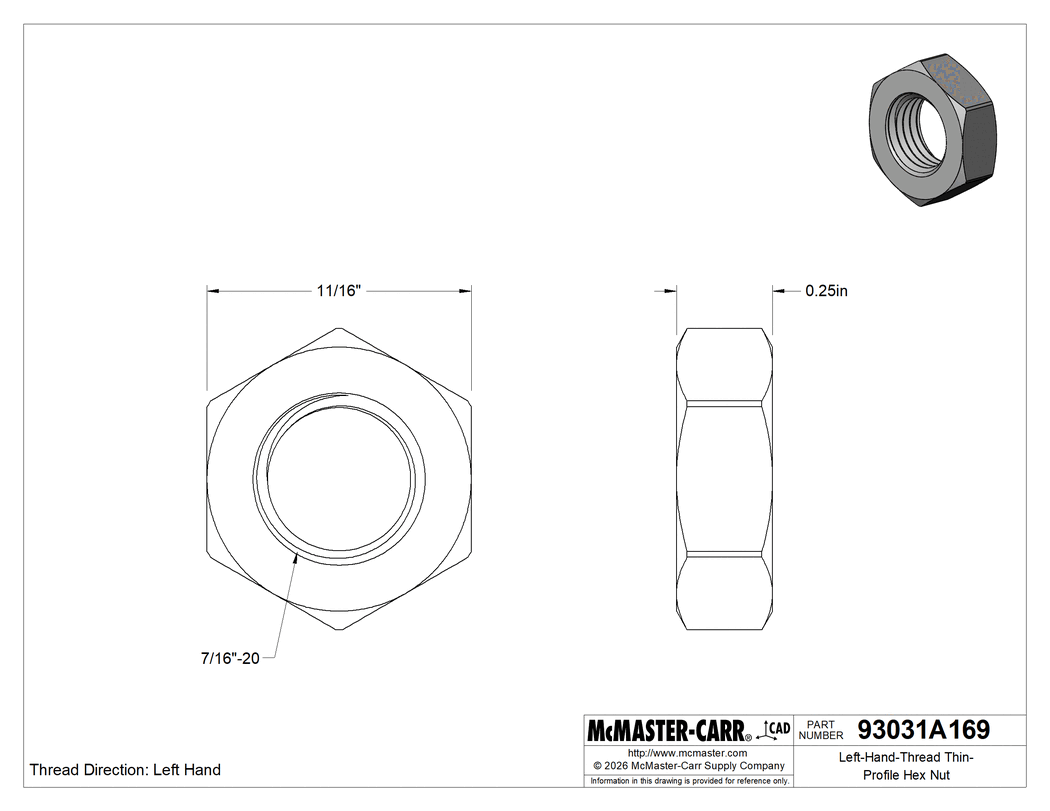

The information in this 3-D model is provided for reference only.
