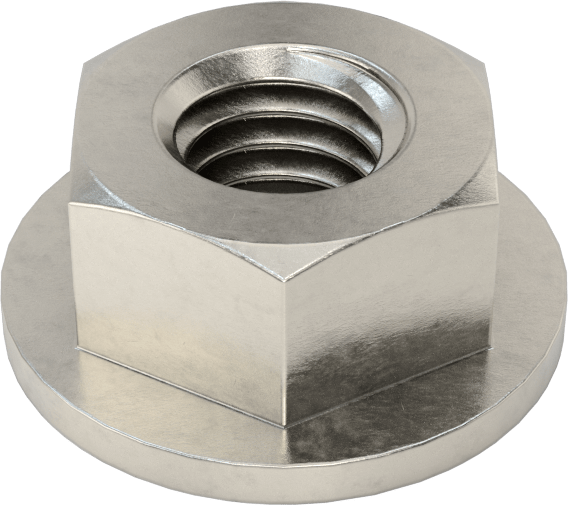

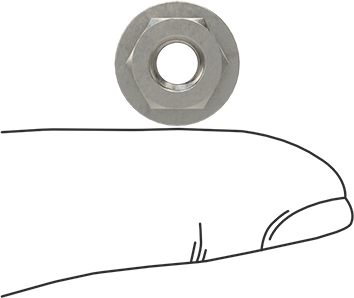

18-8 Stainless Steel Flange Nut
M6 x 1 mm Thread Size
Hex Nut Profile | Standard |
Drive Style | External Hex |
Application | General Purpose |
Material | 18-8 Stainless Steel |
Thread Size | M6 × 1 mm |
Width | 10 mm |
Height | 6 mm |
Flange | |
Diameter | 14.2 mm |
Thickness | 1.19 mm |
Specifications Met | DIN 6923, ISO 4161 |
Nut Type | Flange, Hex |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Thread Direction | Right Hand |
Thread Fit | Metric Class 6H |
Thread Spacing | Coarse |
Thread Type | Metric |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
No need for a separate washer—these nuts have a plain flange that distributes pressure evenly for a wide variety of fastening applications. They are ideal for securing screws in oversized or irregularly shaped holes since the flange covers a larger area than standard nuts. Also known as collar nuts.
18-8 Stainless Steel—The choice for wet and outdoor environments, these nuts resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

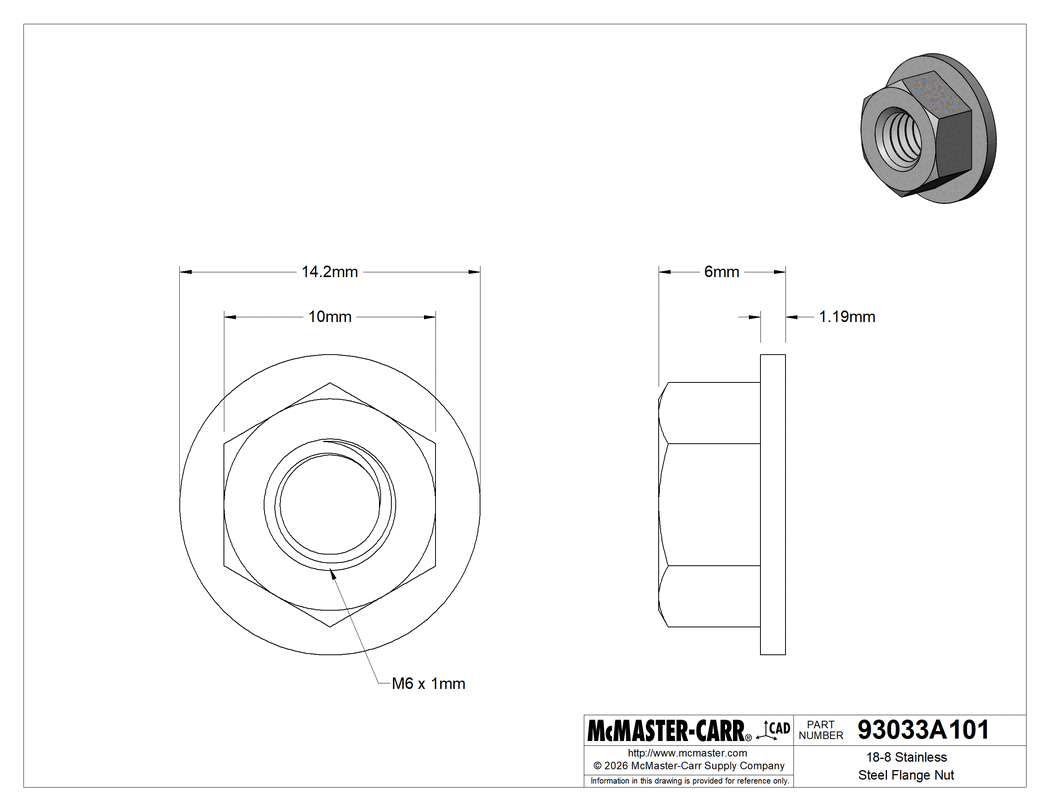

The information in this 3-D model is provided for reference only.
