    Mil. Spec. 18-8 Stainless Steel Phillips Flat Head Screws

    Black-Oxide, 100 Degree Countersink, 8-32 Thread Size, 5/16" Long

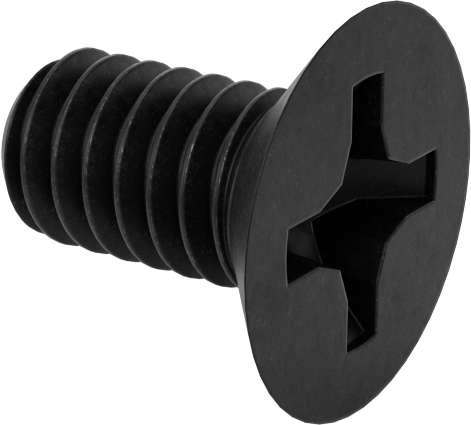

    Image of Product. Front orientation. Mil. Spec. 18-8 Stainless Steel Phillips Flat Head Screws, Black-Oxide, 100 Degree Countersink, 8-32 Thread Size, 5/16" Long.

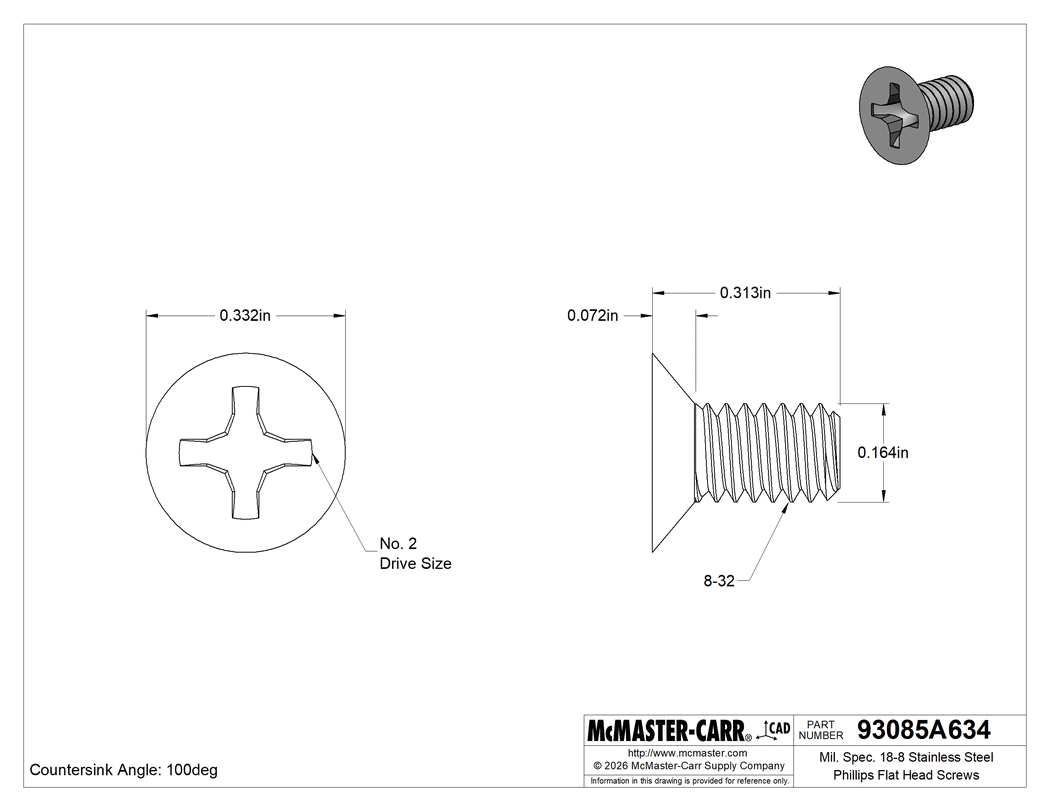

    Technical Drawing of Mil. Spec. 18-8 Stainless Steel Phillips Flat Head Screws, Black-Oxide, 100 Degree Countersink, 8-32 Thread Size, 5/16" Long.
    Image of Product. Back orientation. Mil. Spec. 18-8 Stainless Steel Phillips Flat Head Screws, Black-Oxide, 100 Degree Countersink, 8-32 Thread Size, 5/16" Long.
    Image of Product. Side1 orientation. Contains SizingReference. Mil. Spec. 18-8 Stainless Steel Phillips Flat Head Screws, Black-Oxide, 100 Degree Countersink, 8-32 Thread Size, 5/16" Long.
    2-D PDF
    000000 per pack of 25
    93085A634
    In stock
    93085A634
    000000 per pack of 25
    Pack of 25
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread Direction

    Right Hand

    Drive Style

    Phillips

    Tip Type

    Flat

    Thread Size

    8-32

    Length

    5/16"

    Countersink Angle

    100°

    Flat Head Profile

    Standard

    Head

    Diameter

    0.332"

    Height

    0.072"

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Military Specification

    Fed. Spec. FF-S-92, Fed. Spec. QQ-P-35, MS24693-47B, NASM24693

    Certification

    Mil. Spec.

    Drive Size

    No. 2

    Fastener Head Type

    Flat

    Hardness

    Rockwell B70

    Material

    Black-Oxide 18-8 Stainless Steel

    Performance

    Corrosion Resistant

    Screw Size Decimal Equivalent

    0.164"

    Specifications Met

    SAE AMS2700

    System of Measurement

    Inch

    Thread Fit

    Unified Standard Class 2A

    Thread Spacing

    Coarse

    Thread Type

    UNC

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7009)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Manufactured and tested to meet strict U.S. military specifications for material and construction. These screws are made of stainless steel, so they won't rust or corrode when exposed to moisture and chemicals. The Phillips drive has a cross-shaped opening in which a driver fits snugly for easy alignment. With four contact points, they withstand more torque than slotted drives, but drivers slip when you apply too much force.

    Length is measured from the top of the head.

    Black-Oxide 18-8 Stainless Steel—Typically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They won't rust in wet and outdoor environments, but they don't hold up to the harsh chemicals that 316 stainless steel can.

    Standard Profile—Standard-profile heads are the most common choice for flat head screws.
