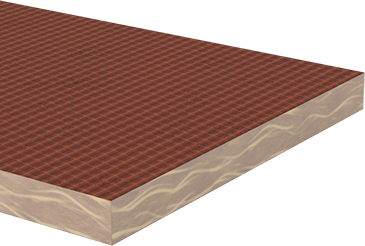

Garolite LE Strip
2" x 48" x 3/16"
Thickness | 3/16" |
Thickness Tolerance | -0.01" to 0.01" |
Color | Brown |
Width | 2" |
Width Tolerance | -0.016" to 0.016" |
Length | 48" |
Length Tolerance | -1" to 1" |
Temperature | |
Minimum | Not Rated |
Maximum | 235° F |
Tensile Strength | 9,300 psi |
Impact Strength | 1.11 ft·lbf/in |
Hardness | Rockwell M100 |
Hardness Rating | Extra Hard |
For Use Outdoors | No |
Military Specification | MIL-I-24768/15 |
Flammability Rating | UL 94 HB |
Application | Multipurpose |
Backing Type | Plain |
Clarity | Opaque |
Compressive Strength | 18,900 psi |
Dielectric Strength | 270 V/mil |
Flatness Tolerance | Not Rated |
Flexibility | Rigid |
Flexural Strength | 16,500 psi |
Material | Garolite |
Material Grade | Garolite LE |
Performance | Extra High Strength, High Strength, Highly Machinable |
Density | 0.047 lb/in³ to 0.052 lb/in³ |
Reinforcement Material | Linen Fabric |
Resin Material | Phenolic |
Shape | Sheet, Strip |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 1.05% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392190.5050 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Using nothing more than standard high-speed steel tooling, these Garolite LE sheets and strips can be machined into intricate parts. Garolite LE is made of a phenolic resin with a fine-weave linen fabric reinforcement. It is sometimes referred to as industrial laminate, phenolic, and Bakelite.

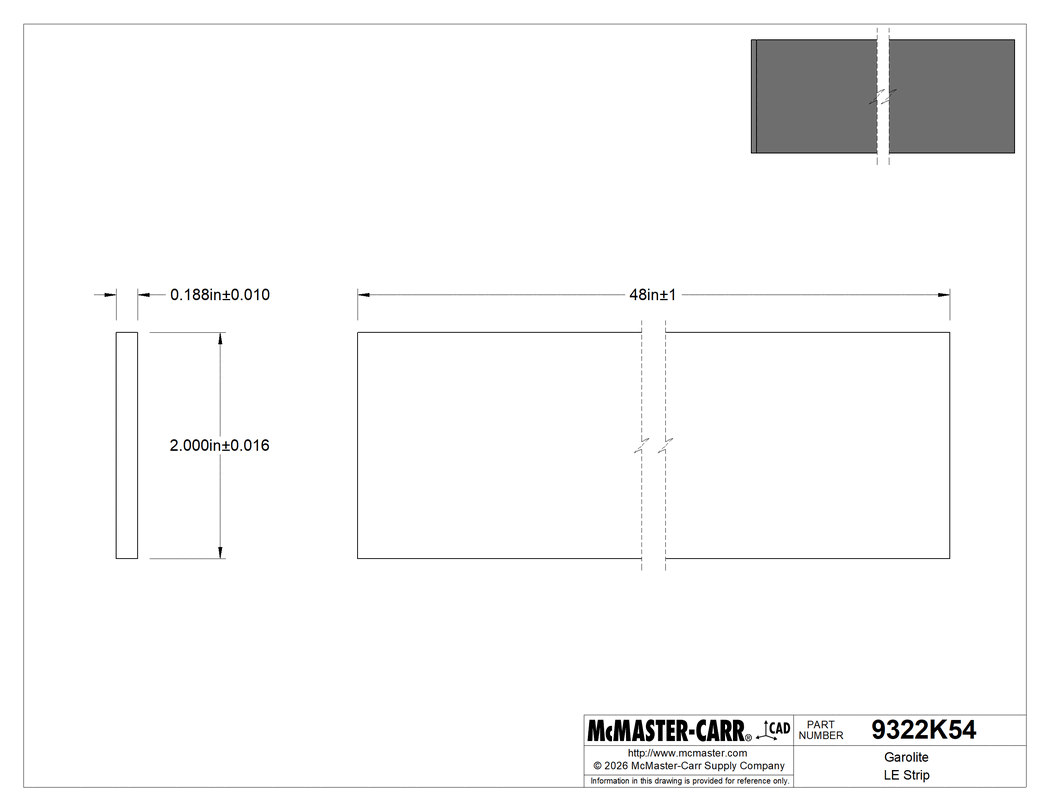

The information in this 3-D model is provided for reference only.
