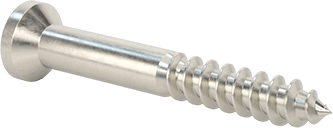

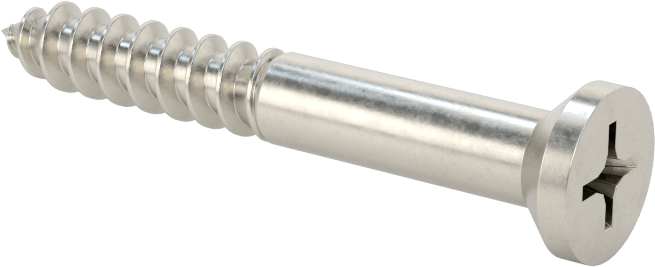

316 Stainless Steel Phillips Screws for Plywood and OSB
Flat Head, Number 10 Size, 1-1/2" Long
Tip Type | Pointed |
Drive Style | Phillips |
Fastener Head Type | Flat |
For Use In | Plywood, Oriented Strand Board |
Material | 316 Stainless Steel |
Screw Size | No. 10 |
Length | 1 1/2" |
Head | |
Diameter | 0.345" |
Height | 0.14" |
Drill Bit Size | 3/32" |
Countersink Angle | 88° |
Flat Head Profile | Standard |
Approximate Threads per Inch | 13 |
Threading | Partially Threaded |
Tapping Method | Thread Forming |
Drill Bit Decimal Size Equivalent | 0.094" |
Drive Size | No. 2 |
Minimum Thread Length | 3/4" |
Performance | Chemical Resistant, Highly Corrosion Resistant |
Screw Size Decimal Equivalent | 0.190" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Serrated threads on these rust-resistant screws cut through wood fibers to minimize splitting. They're often used with plywood and oriented strand board (OSB) for exterior panels. They also won't corrode from moisture or chemically treated wood. The flat head sits flush, so you won't need to worry about snags. The Phillips drive handles enough torque to drive into most kinds of wood without slipping.
Length is measured from under the head.
316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.
Install

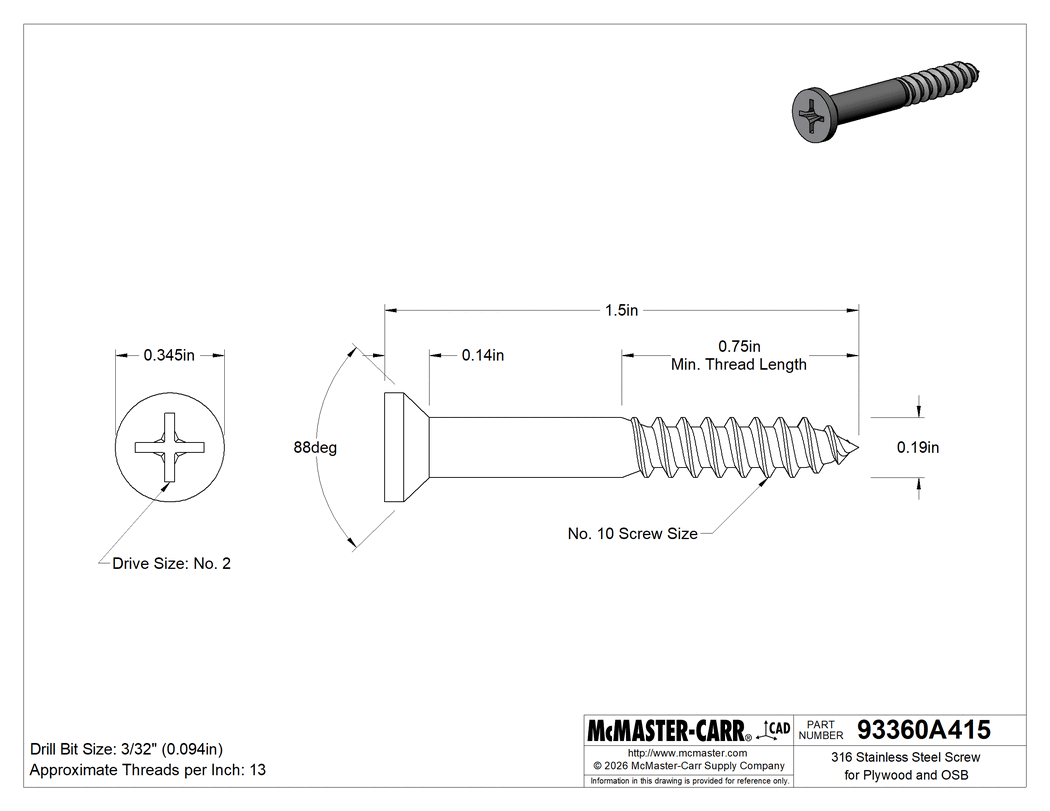

The information in this 3-D model is provided for reference only.
