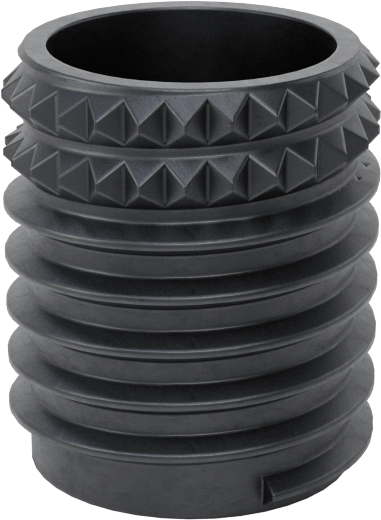

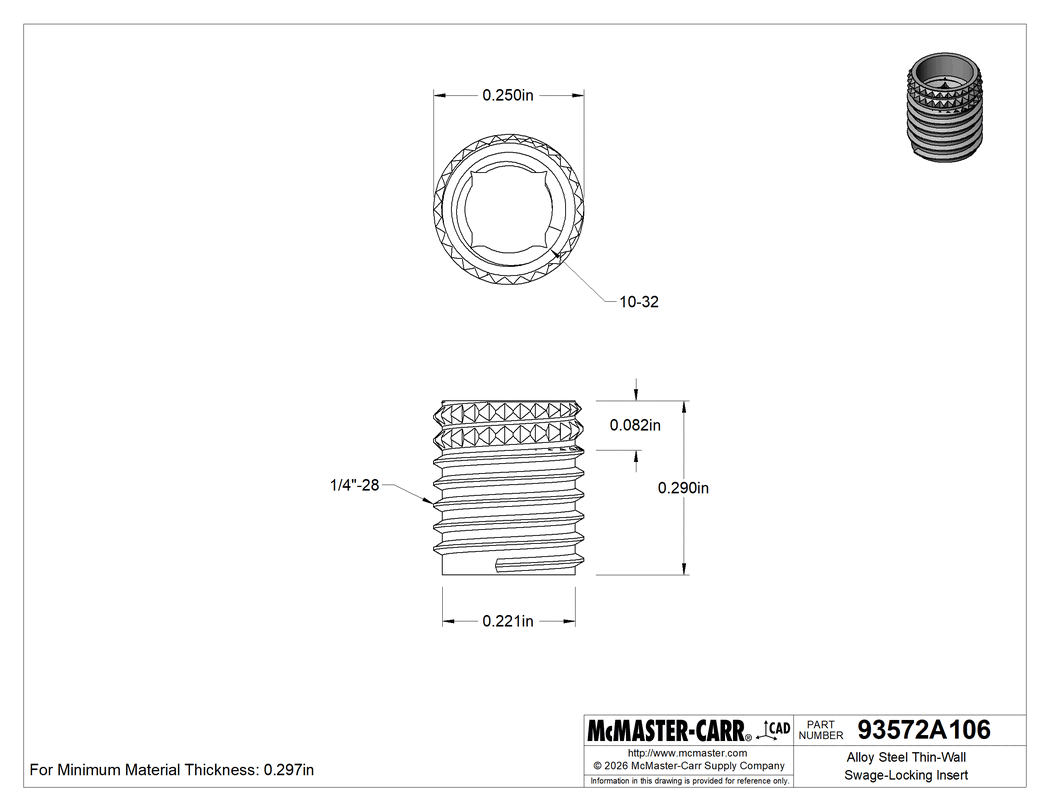

Alloy Steel Thin-Wall Swage-Locking Insert
10-32 Thread Size
Threaded Insert Type | Swage Locking |
Lubricant Type | Dry Film |
Material | Cadmium-Plated Alloy Steel |
Thread Size | 10-32 |
For Tap Thread Size | 1/4"-28 |
Installed Length | 0.297" |
For Maximum Hole Diameter | 0.221" |
For Counterbore | |
Diameter | 0.25" |
Depth | 0.082" |
Military Specification | MIL-DTL-45932/1 |
End Type | Open |
For Minimum Material Thickness | 19/64" |
For Tap Type | Standard (UN) |
For Use In | Metal, Stainless Steel, Steel |
Performance | High Strength, Seize Resistant |
Profile | Standard |
System of Measurement | Inch |
Tensile Strength | Not Rated |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 3B |
Thread Spacing | Fine |
Thread Type | UNF |
Threaded Insert Securing Type | External Thread, Knurled |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731819.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
Smoothly install these inserts for strong threads near the edges and corners of soft metal surfaces. They’re lubricated to prevent sticking as you thread them in. Since these have thinner walls than our key-locking and thread-locking inserts, they don’t need as much space and won't bulge or crack the material. The knurls press (swage) into the material to keep inserts in place when you tighten or loosen a screw.
To install these inserts, you need a drill bit, a counterbore, a standard tap, an installation tool, and a hammer. Drill a hole, counterbore the top, and tap it. Place the insert into the installation tool, then hand-tighten it into the tapped hole. Strike the tool to secure the insert and drive the knurls into the surrounding material.
High-Strength Dry-Film-Lubricated Cadmium-Plated Alloy Steel—Stronger than our 17-4 PH stainless steel inserts, these inserts absorb impact without cracking and stand up to high-pressure applications. The cadmium plating prevents corrosion in wet environments.
