    Press-Fit Studs

    18-8 Stainless Steel, M6 x 1 mm Thread, 15 mm Long, PEM Fhs-M6-15

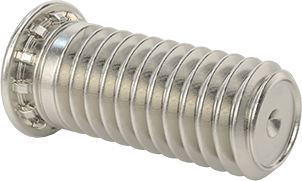

    Image of Product. Front orientation. Press-Fit Studs, 18-8 Stainless Steel, M6 x 1 mm Thread, 15 mm Long, PEM® Fhs-M6-15.

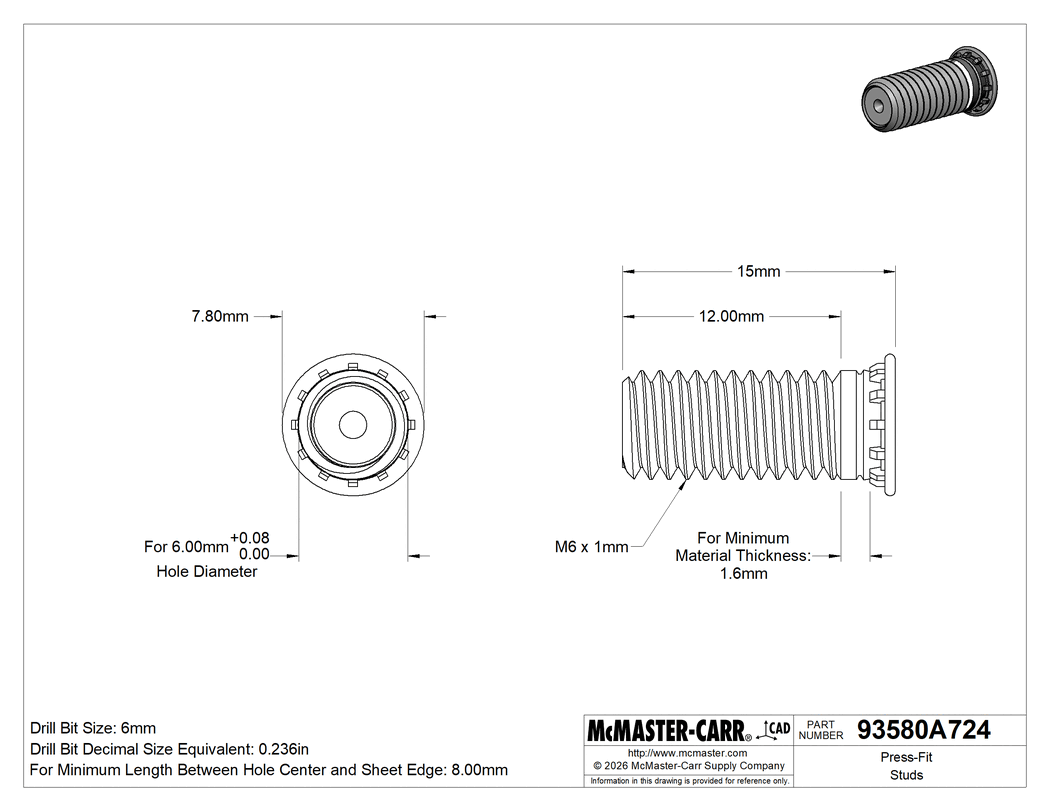

    Technical Drawing of Press-Fit Studs, 18-8 Stainless Steel, M6 x 1 mm Thread, 15 mm Long, PEM® Fhs-M6-15.
    Image of Product. Back orientation. Press-Fit Studs, 18-8 Stainless Steel, M6 x 1 mm Thread, 15 mm Long, PEM® Fhs-M6-15.
    Image of Product. Side1 orientation. Contains SizingReference. Press-Fit Studs, 18-8 Stainless Steel, M6 x 1 mm Thread, 15 mm Long, PEM® Fhs-M6-15.
    2-D PDF
    00000 per pack of 10
    93580A724
    In stock
    93580A724
    00000 per pack of 10
    Pack of 10
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Connection Method

    Press Fit

    Thread Size

    M6 × 1 mm

    Length

    15 mm

    PEM® Part Number

    FHS-M6-15

    Thread Length

    12 mm

    For Minimum Material Thickness

    1.600 mm

    For Minimum Length Between Hole Center and Sheet Edge

    8 mm

    For Hole Diameter

    6 mm

    Hole Size Tolerance

    0.000 mm to 0.08 mm

    Drill Bit Size

    6.0 mm

    Base Diameter

    7.8 mm

    Tensile Strength

    Not Rated

    Hardness

    Not Rated

    Drill Bit Decimal Size Equivalent

    0.2362"

    Hole Size Maximum Tolerance

    0.08 mm

    Hole Size Minimum Tolerance

    0.000 mm

    Material

    18-8 Stainless Steel

    System of Measurement

    Metric

    Thread Direction

    Right Hand

    Thread Fit

    Metric Class 6g

    Thread Spacing

    Coarse

    Thread Type

    Metric

    Threading

    Fully Threaded

    Country of Origin

    United States, China, Ireland

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.5000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Press these studs into a drilled or punched hole with an arbor press or similar pressure tool. Also known as self-clinching studs, ribs under the head hold the stud firmly in place. Length listed is overall length.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these studs resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
