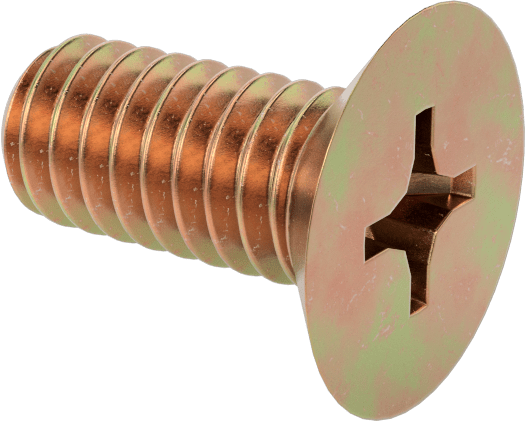

Mil. Spec. Steel Phillips Flat Head Screws
Cadmium-Plated, 100 Degree Countersink, 8-32 Thread, 3/8" Long
Thread Direction | Right Hand |
Drive Style | Phillips |
Tip Type | Flat |
Thread Size | 8-32 |
Length | 3/8" |
Countersink Angle | 100° |
Flat Head Profile | Standard |
Head | |
Diameter | 0.332" |
Height | 0.072" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Military Specification | MS24693-S48, NASM24693 |
Certification | Mil. Spec. |
Drive Size | No. 2 |
Fastener Head Type | Flat |
Hardness | Not Rated |
Material | Cadmium-Plated Steel |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
One of the most common drive styles. Phillips drives have a cross-shaped opening in which a driver fits snugly for easy alignment. With four contact points, they withstand more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from the top of the head.
Cadmium-Plated Steel—The plating reduces friction between the screw and your mounting surface to prevent sticking when you tighten or loosen them. It also creates a barrier against rust.
Standard Profile—Standard-profile heads are the most common choice for flat head screws.
Military Specification—These screws are manufactured and tested to meet strict U.S. military standards for material and construction.

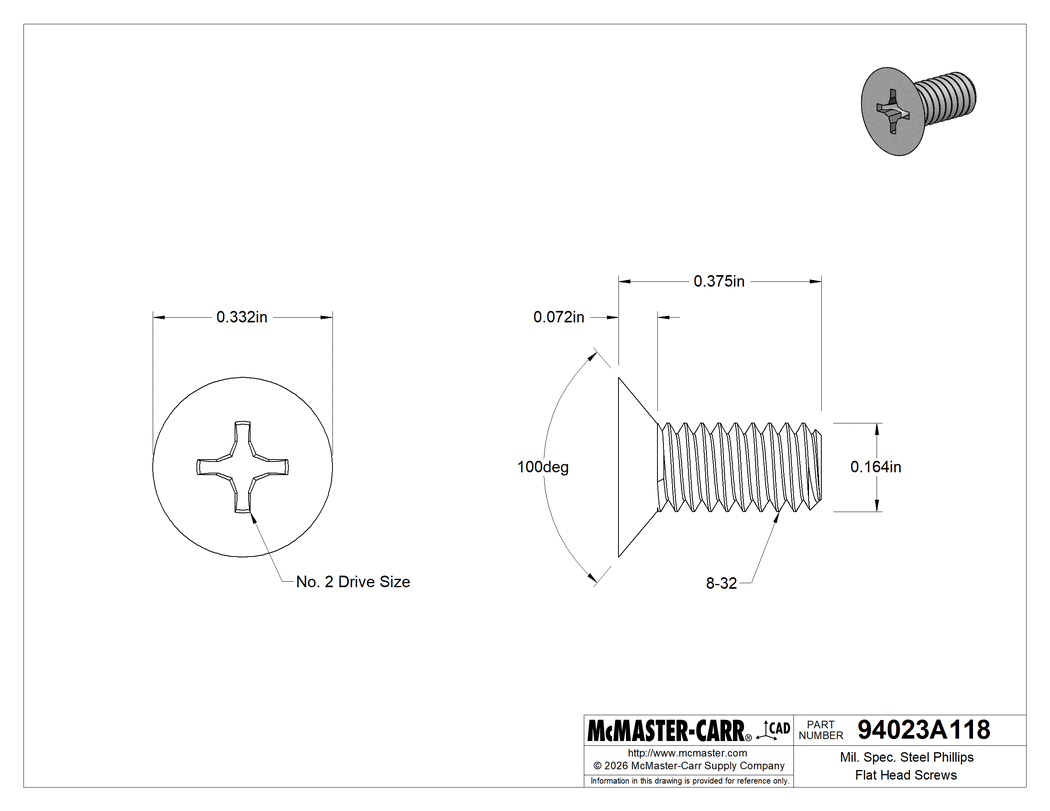

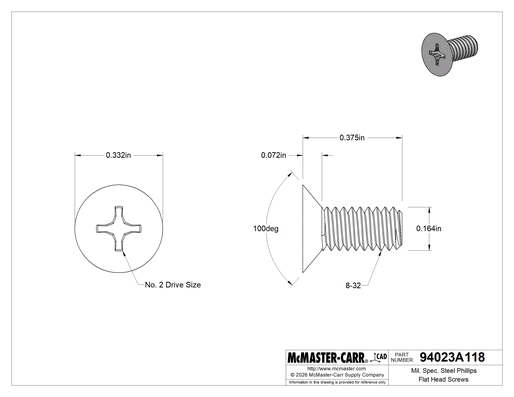

The information in this 3-D model is provided for reference only.
