    High-Strength Aramid/Buna-N Gasket Material

    Oil-Resistant, 1/16" Thick, 15" x 15"

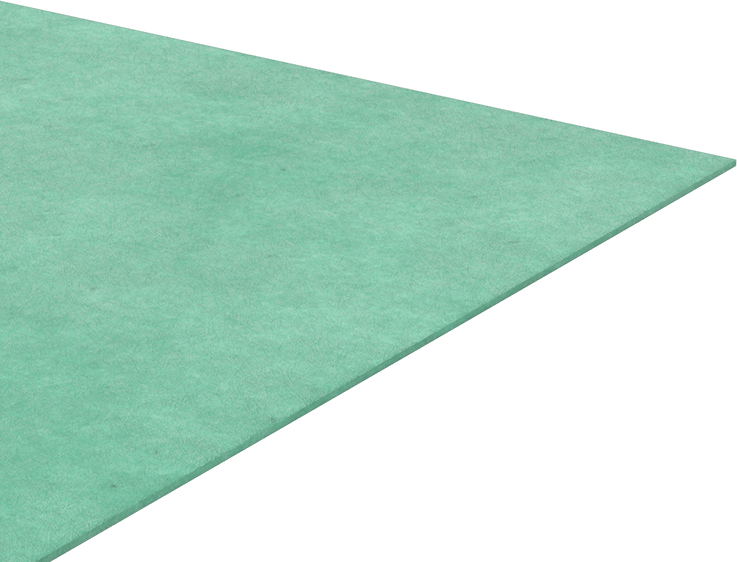

    Image of Product. Front orientation. High-Strength Aramid/Buna-N Gasket Material, Oil-Resistant, 1/16" Thick, 15" x 15".

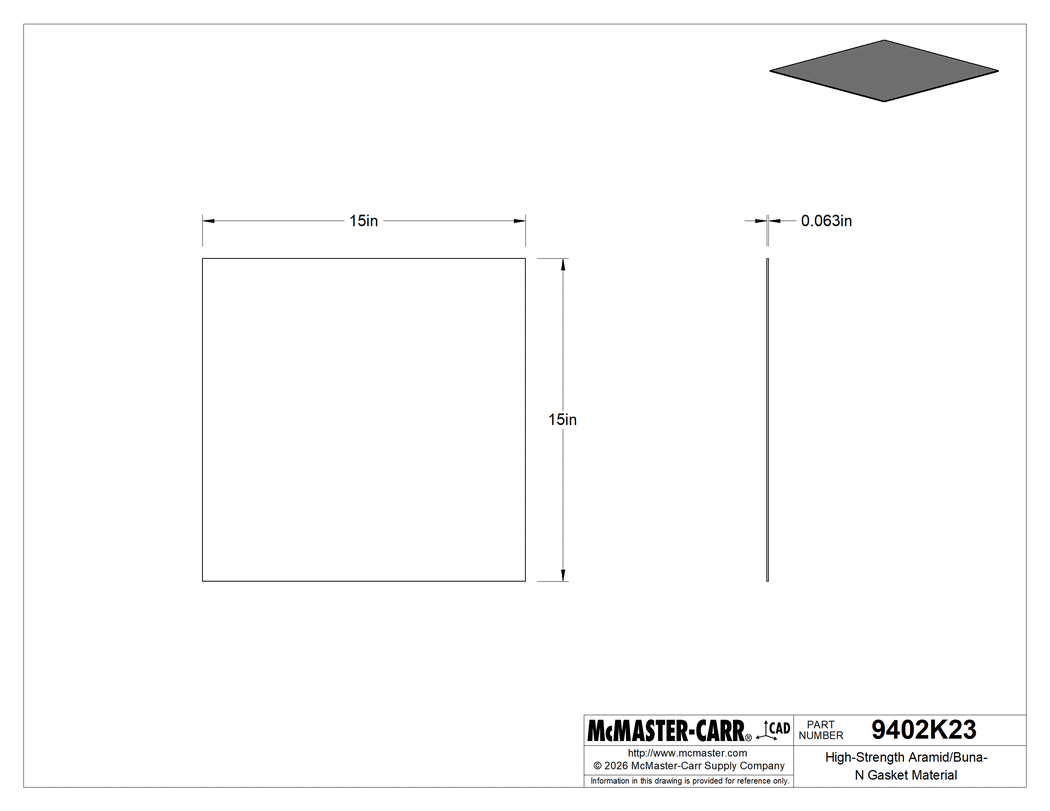

    Technical Drawing of High-Strength Aramid/Buna-N Gasket Material, Oil-Resistant, 1/16" Thick, 15" x 15".

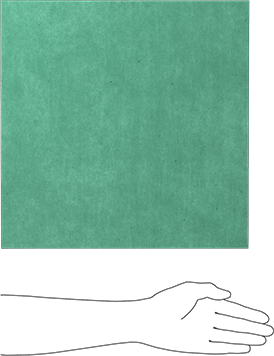

    Image of Product. Side1 orientation. Contains SizingReference. High-Strength Aramid/Buna-N Gasket Material, Oil-Resistant, 1/16" Thick, 15" x 15".
    2-D PDF
    000000 each
    9402K23
    In stock
    9402K23
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Plain

    Shape

    Sheet

    Thickness

    1/16"

    Width

    15"

    Length

    15"

    Maximum Pressure

    1,400 psi

    Temperature Range

    -40° F to 750° F

    Color

    Green

    Material

    Aramid-Reinforced Buna-N

    Performance

    High Strength, Oil Resistant

    Country of Origin

    Austria

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    400591.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Stronger and able to withstand higher pressures than other types of aramid-reinforced Buna-N, these sheets resist oil, water, steam, and solvents. Cut with a gasket cutter.
