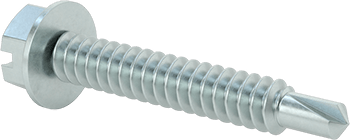

External Hex/Slotted Head Drilling Screws
External Hex/Slotted-Zinc Plated Steel, 5/16" Size, 2" Long

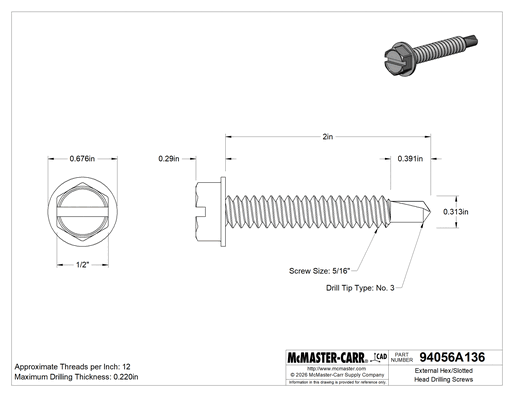

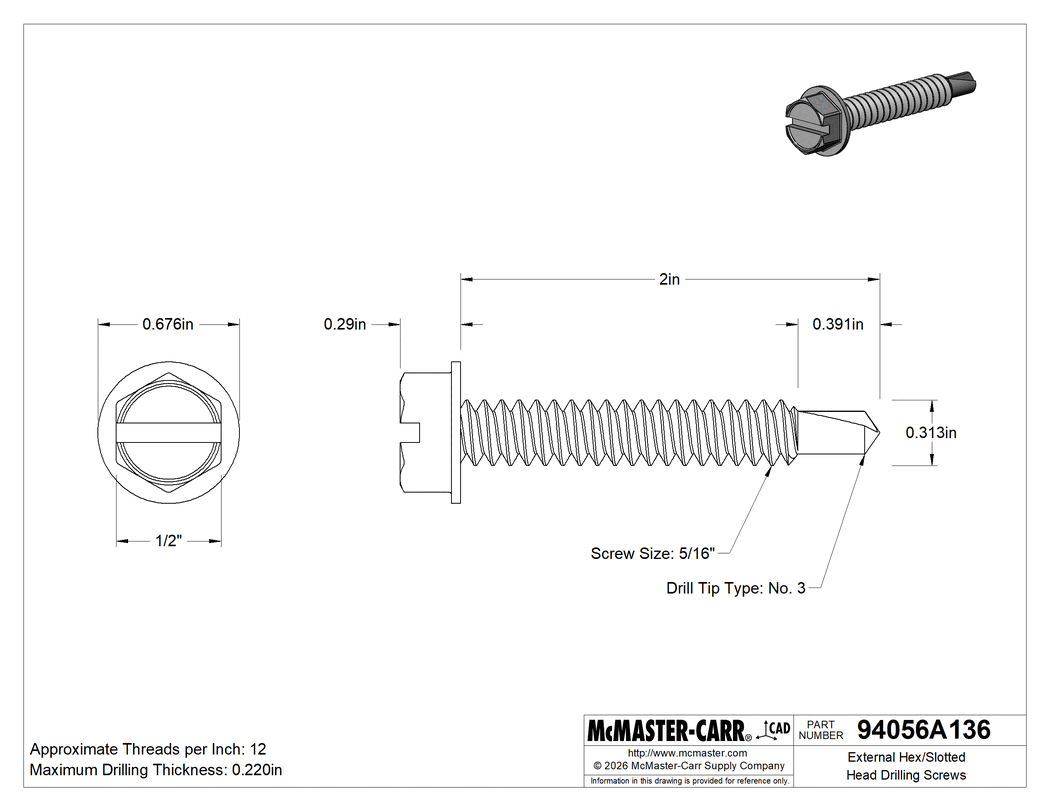

2-D PDF
00000 per pack of 5
94056A136
In stock
94056A136
00000 per pack of 5
Pack of 5
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Drive Style | External Hex/Slotted |
Fastener Head Type | Hex/Flanged |
Drill Tip | |
Point Size | No. 3 |
Length | 25/64" |
Type | Drilling |
Tapping Method | Thread Forming |
Material | Zinc-Plated Steel |
Screw Size | 5/16" |
Length | 2" |
Head | |
Width | 0.5" |
Height | 0.29" |
Flange Diameter | 0.676" |
Maximum Drilling Thickness | 0.220" |
Tapping Screw Type | BSD |
Approximate Threads per Inch | 12 |
For Use In | Metal, Sheet Metal, Steel |
Screw Size Decimal Equivalent | 0.313" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Drill and fasten in one step with a nutdriver or socket, then use a slotted screwdriver to make adjustments. The flanged head spreads the load to prevent crushing thin metal.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
