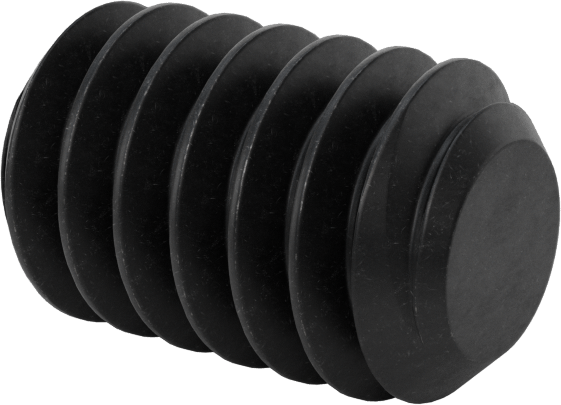

Black-Oxide Alloy Steel Flat-Tip Set Screw
1/4"-20 Thread Size, 3/8" Long
Drive Style | Hex |
Tip Type | Flat |
Material | Black-Oxide Alloy Steel |
Thread Size | 1/4"-20 |
Length | 3/8" |
Drive Size | 1/8" |
Hardness | Rockwell C45 |
Specifications Met | ASME B18.3, ASTM F912 |
Fastener Head Type | Headless |
Performance | Nonmarring |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 3A |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Spread out holding power and protect surfaces from damage. Unlike cup and cone tip screws, the flat tip on these distributes pressure evenly, reducing marring but not holding as tightly. They're a good choice for repositioning parts frequently on jigs, fixtures, and other applications where the tip presses against a flat surface. Made of alloy steel, these screws are strong enough to hold components without wearing down.
Black-Oxide Alloy Steel—These screws have a dark matte finish that offers minimal corrosion resistance, so they're best for dry environments.

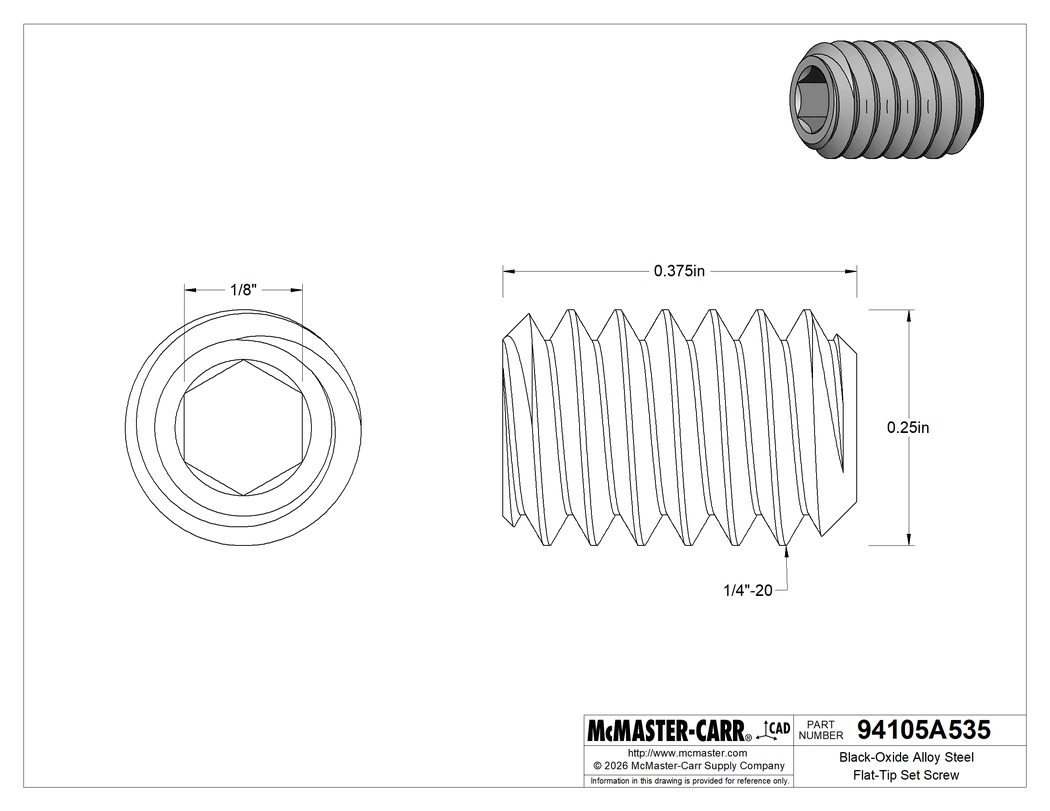

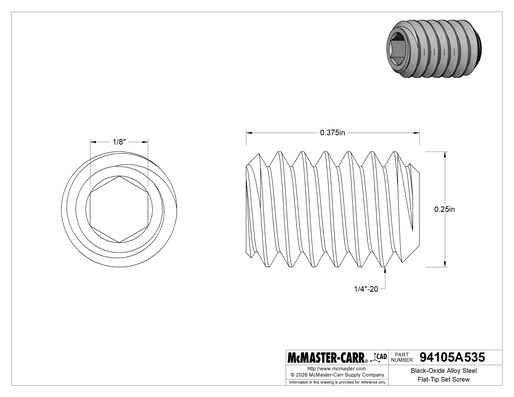

The information in this 3-D model is provided for reference only.
