Super-Corrosion-Resistant 316 Stainless Steel Threaded Rod

M20 x 2.5 mm Thread Size, 1 M Long

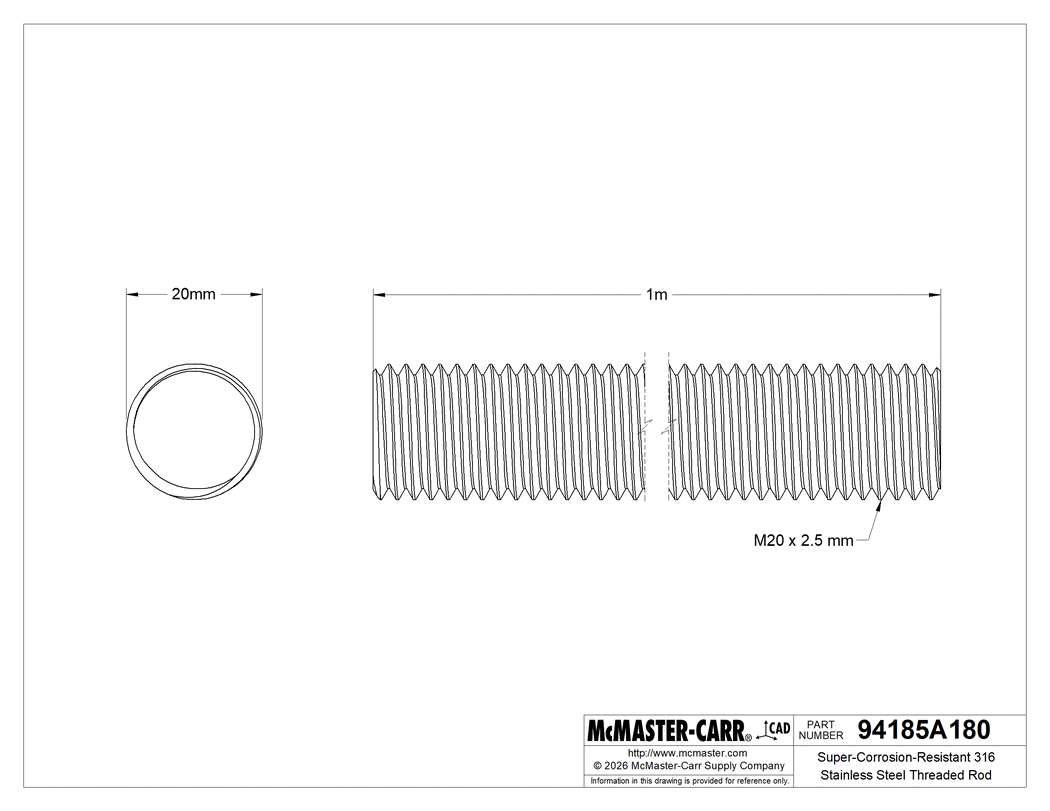

Technical Drawing of Super-Corrosion-Resistant 316 Stainless Steel Threaded Rod, M20 x 2.5 mm Thread Size, 1 M Long.

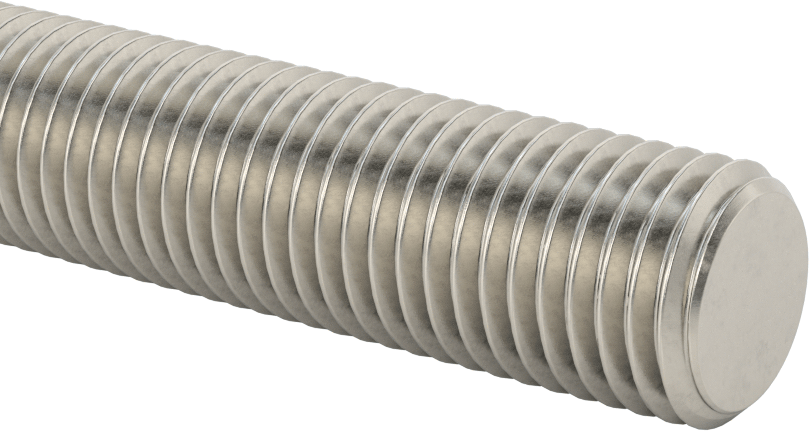

Image of Product. Side1 orientation. Contains SizingReference. Super-Corrosion-Resistant 316 Stainless Steel Threaded Rod, M20 x 2.5 mm Thread Size, 1 M Long.

2-D PDF

0000000 per pack of 1

94185A180

In stock

94185A180

0000000 per pack of 1

QuantityPack of 1

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread Direction	Right Hand
Thread Size	M20 × 2.5 mm
Length	1 m
Tensile Strength	75,000 psi
Fastener Strength Grade/Class	ASTM Grade B8M
Hardness	Not Rated
Specifications Met	ASTM A193, DIN 976
Material	316 Stainless Steel
Performance	High Pressure, Highly Corrosion Resistant
System of Measurement	Metric
Thread Fit	Metric Class 6g
Thread Spacing	Coarse
Thread Type	Metric
Threading	Fully Threaded
Country of Origin	United States
DFARS Compliance	Specialty Metals Compliant (252.225-7009)
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Stainless Steel—More corrosion resistant than steel rods and comparable in strength to low-strength steel.

Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these rods won't degrade when exposed to harsh weather, salt water, and most chemicals.
