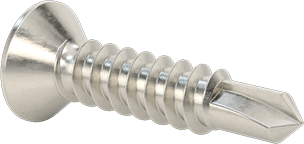

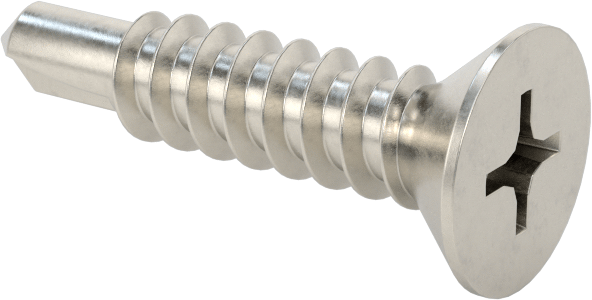

Phillips Flat Head Drilling Screw
410 Stainless Steel, Number 12 Size, 1" Long
Drive Style | Phillips |
Fastener Head Type | Flat |
Drill Tip | |
Point Size | No. 3 |
Length | 9/32" |
Type | Drilling |
Tapping Method | Thread Forming |
Material | 410 Stainless Steel |
Screw Size | No. 12 |
Length | 1" |
Head | |
Diameter | 0.412" |
Height | 0.132" |
Maximum Drilling Thickness | 0.187" |
Tapping Screw Type Designation | BSD |
Drive Size | No. 3 |
Approximate Threads per Inch | 14 |
Countersink Angle | 82° |
Flat Head Profile | Standard |
For Use In | Metal, Sheet Metal, Stainless Steel, Steel |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.216" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Japan, Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These corrosion-resistant screws drill and fasten in one step to secure trim, brackets, and other objects with countersunk holes. They have a flat, beveled head to sit flush with surfaces. The Phillips drive withstands less torque than a hex drive, so drill with even, steady pressure.
Length is measured from the top of the head.
410 Stainless Steel—Tougher and more wear resistant than other stainless steel screws but less corrosion resistant.
Install
Prepare hole

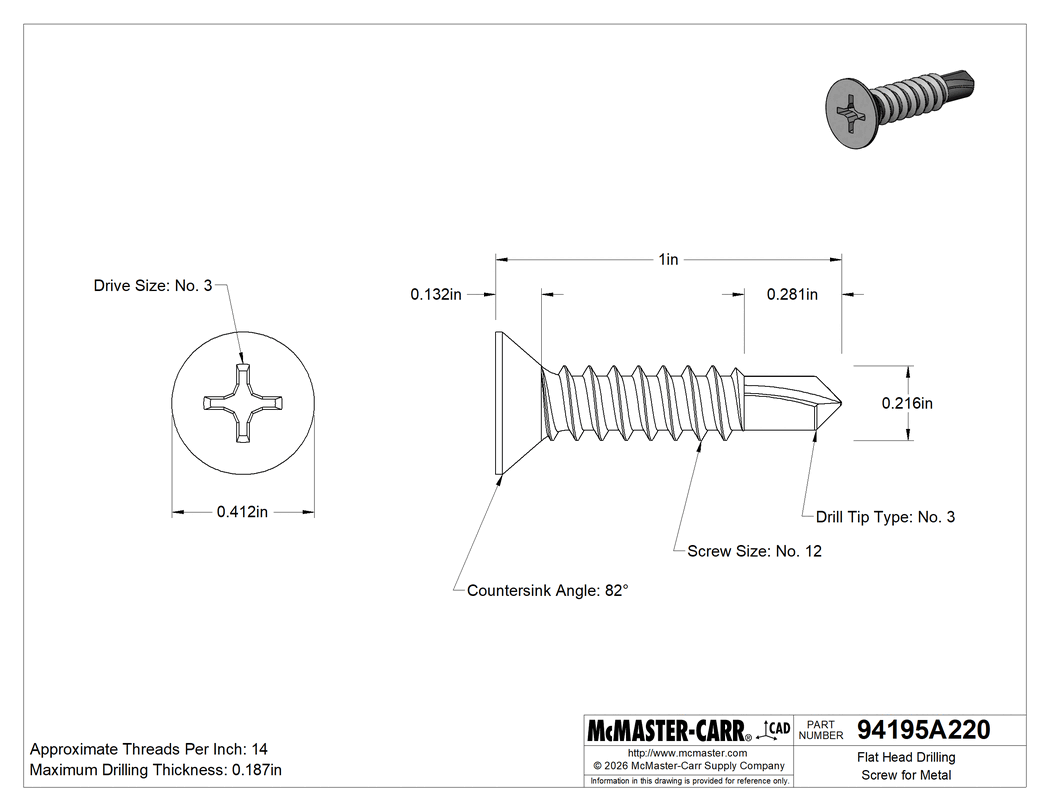

The information in this 3-D model is provided for reference only.
