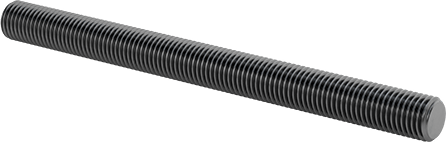

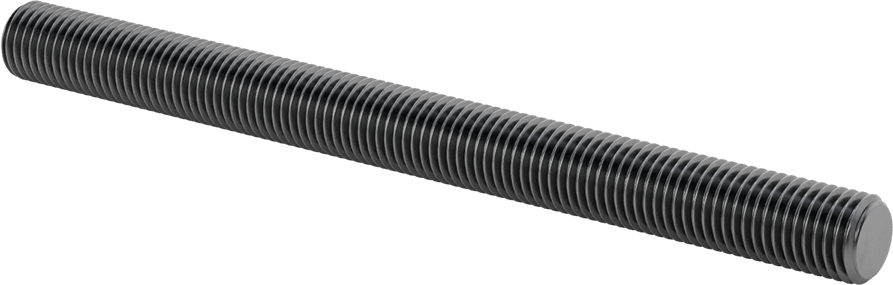

Super-Corrosion-Resistant Threaded Rod
Grade B8m Stainless Steel, 1"-8 Thread, 1' Length
Thread Direction | Right Hand |
Thread Size | 1"-8 |
Length | 1 ft. |
Tensile Strength | 75,000 psi |
Fastener Strength Grade/Class | ASTM Grade B8M |
Hardness | Not Rated |
Specifications Met | ASTM A193 |
Material | 316 Stainless Steel |
Performance | High Pressure, Highly Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States, Italy, United Kingdom |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Stainless Steel—More corrosion resistant than steel rods and comparable in strength to low-strength steel.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these rods won't degrade when exposed to harsh weather, salt water, and most chemicals.

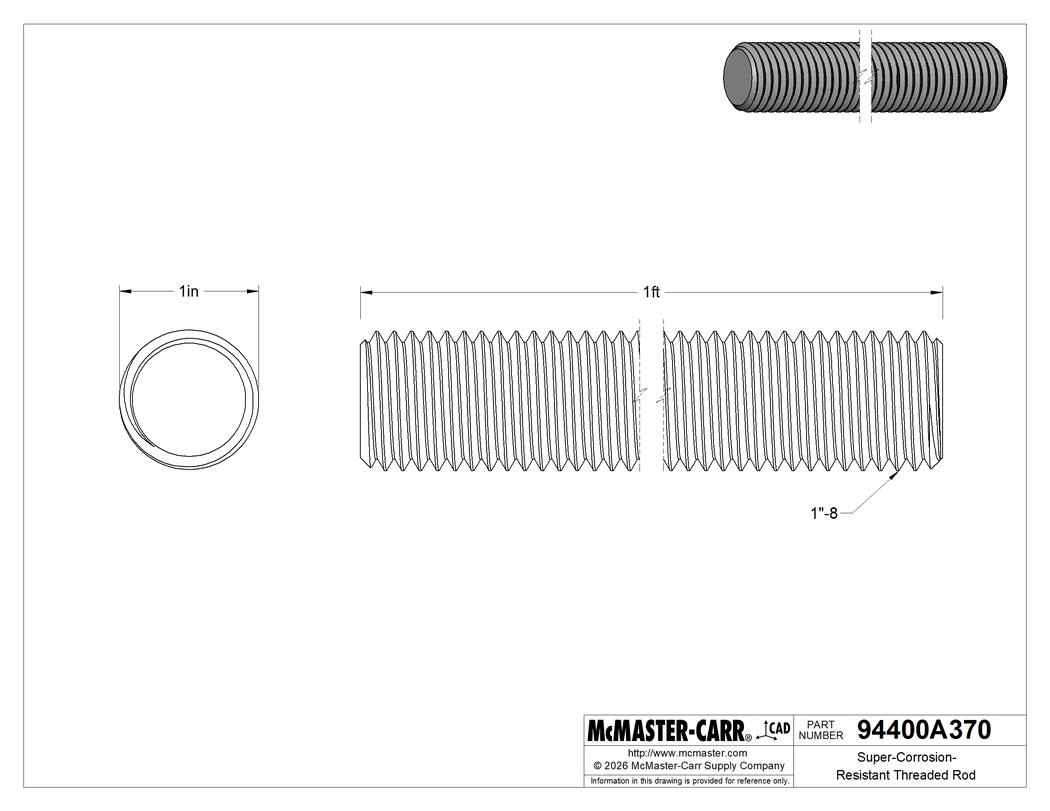

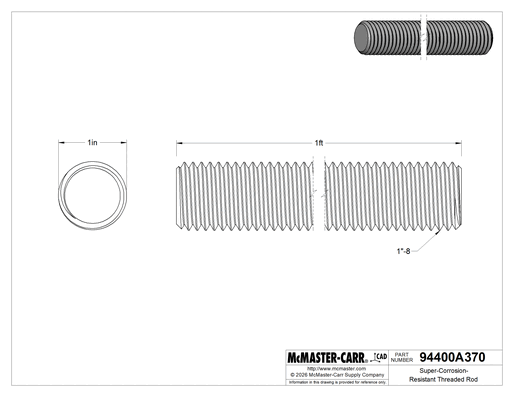

The information in this 3-D model is provided for reference only.
