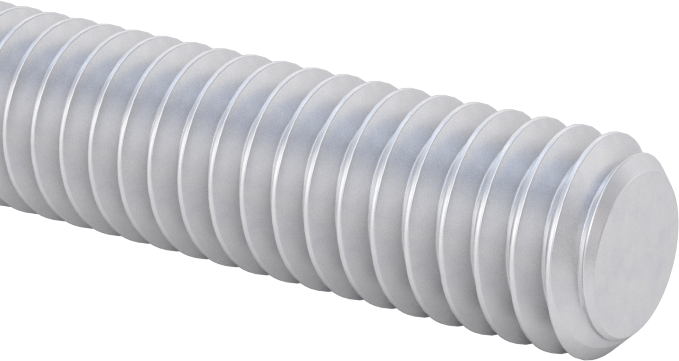

Aluminum Threaded Rod
5/16"-18 Thread Size, 1 Foot Long

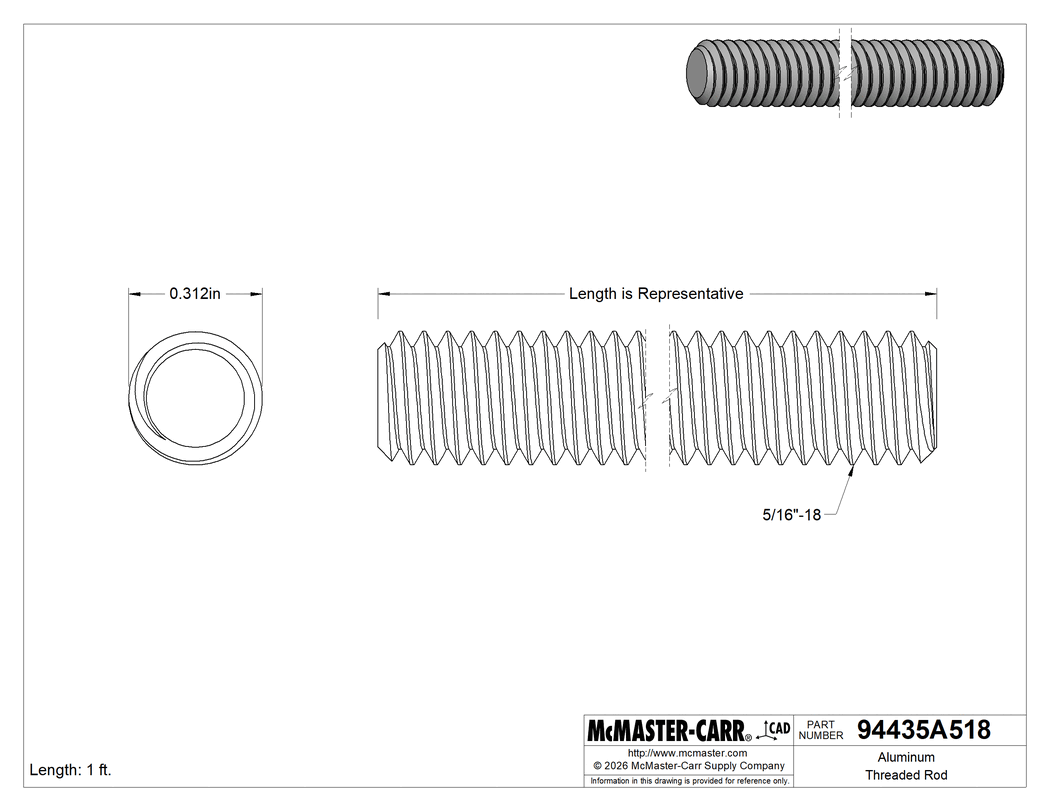

2-D PDF
00000 per pack of 1
94435A518
In stock
94435A518
00000 per pack of 1
Pack of 1
Select a compatible file type: Parasolid
Learn more about our Solidworks Add-In
Thread Direction | Right Hand |
Thread Size | 5/16"-18 |
Length | 1 ft. |
Tensile Strength | 40,000 psi |
Hardness | Rockwell B40 |
Material | 6061 Aluminum |
Performance | Corrosion Resistant, Lightweight |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 1A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 761610.6000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
6061 Aluminum—One-third the weight of steel, these rods are commonly used in automation and other applications with weight limits. They're an alternative to stainless steel for rust resistance but are not as strong.
