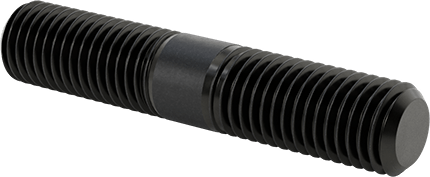

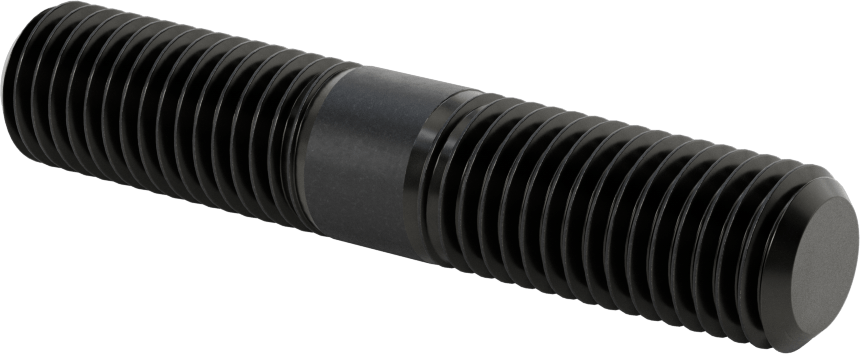

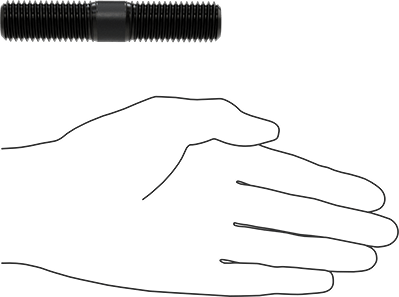

Left-Hand to Right-Hand Male Thread Adapter
Black-Oxide Steel, 3/4"-10 Thread, 4" Long

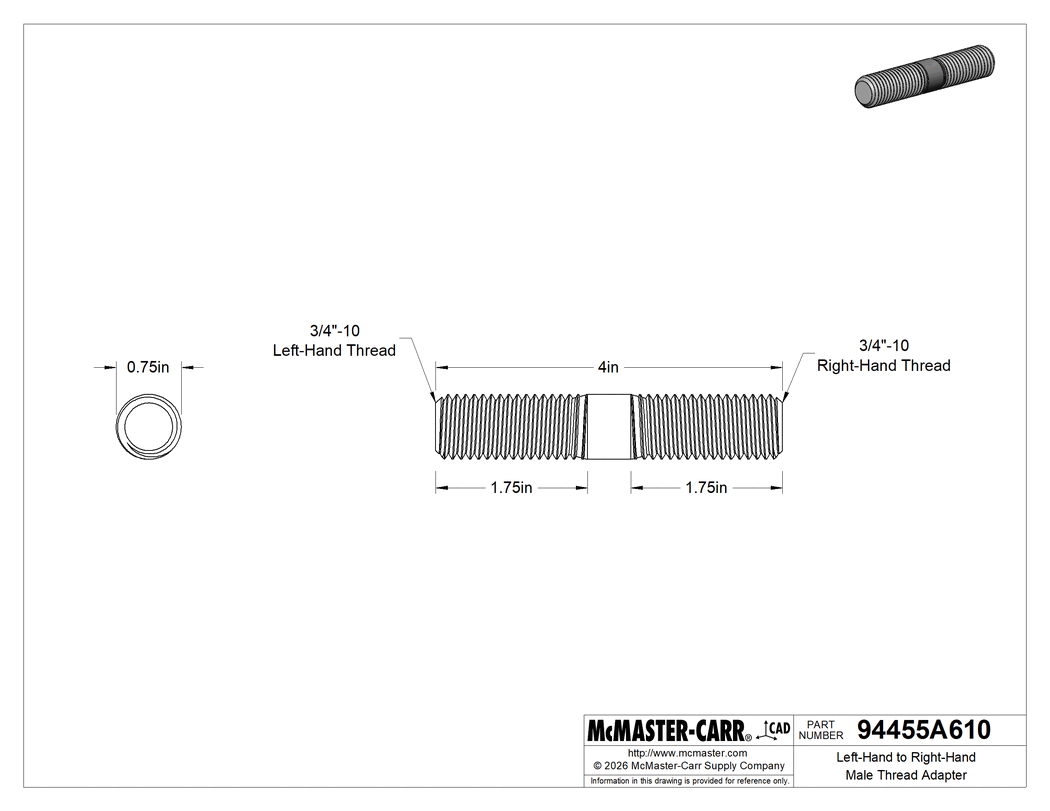

2-D PDF
00000 each
94455A610
In stock
94455A610
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | Black-Oxide Steel |
Thread Size (A) | 3/4"-10 |
Length | 4" |
Thread Length | |
(A) | 1 3/4" |
(B) | 1 3/4" |
Tensile Strength | 70,000 psi |
Hardness | Rockwell B67 |
For Adapting | Thread Direction |
Gender | |
(A) | Male |
(B) | Male |
Shape | Round |
System of Measurement | Inch |
Thread Fit | |
(A) | Unified Standard Class 2A |
(B) | Unified Standard Class 2A |
Thread Size (B) | 3/4"-10 |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Made from black-oxide steel, these adapters resist corrosion in dry environments. Thread length is the same on both ends.
The information in this 3-D model is provided for reference only.
