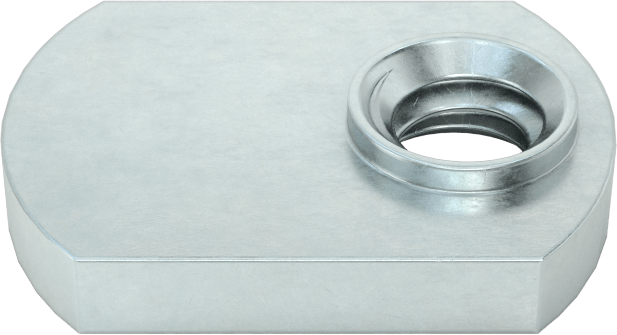

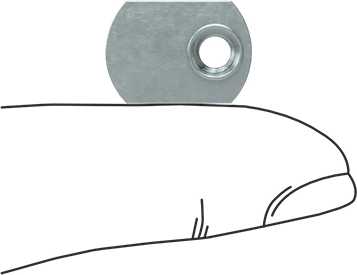

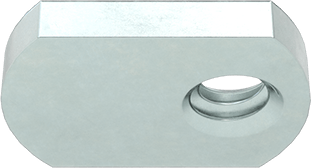

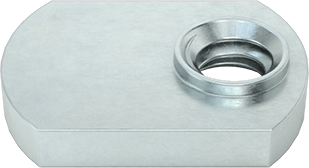

Steel Offset-Barrel Narrow-Base Weld Nuts
Zinc-Plated, 10-24 Thread Size
Mounting Hole Location | Offset |
Thread Direction | Right Hand |
Weld Nut Shape | Rectangle |
Material | Zinc-Plated Steel |
Thread Size | 10-24 |
Number of Projections | 0 |
Base | |
Length | 5/8" |
Width | 7/16" |
Thickness | 3/32" |
Barrel | |
Diameter | 15/64" |
Height | 1/32" |
For Hole Diameter | 1/4" |
Nut Type | Flange, Weld |
System of Measurement | Inch |
Thread | |
Type | UNC |
Spacing | Coarse |
Fit | Unified Standard Class 2B |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Add permanent threads on corners and near edges. With a slim base and a short, offset barrel, these weld nuts fit in tight spaces such as channels and low-clearance areas.
Zinc-Plated Steel—A step up from plain steel, these nuts withstand occasional exposure to moisture. Weld them to uncoated steel surfaces. If MIG or TIG welding, grind the zinc plating off the part of the nut you intend to weld.
Number of Projections—More projections lead to more consistent welds by concentrating heat and protecting the threads from deforming.

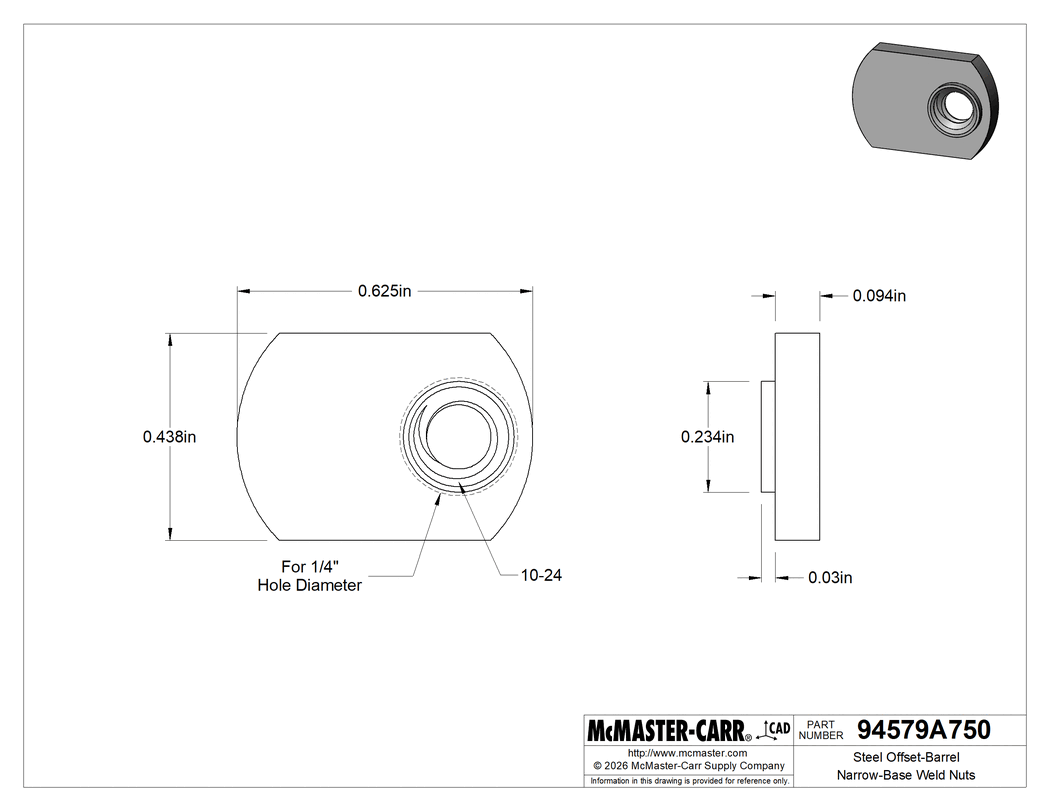

The information in this 3-D model is provided for reference only.
